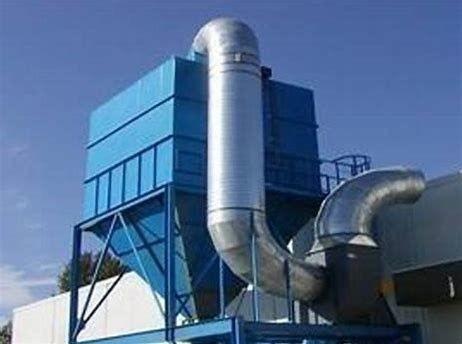

Uniform Force Industrial Dedusting System For Casting Mining Building Materials
Uniform Force Industrial Dedusting System For Casting Mining Building Materials
Specifications
Brand Name :
risheng
Model Number :
ZC
Certification :
ce,ISO9001
Place of Origin :
china
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100units/year
Delivery Time :
10-30 days
Packaging Details :
LC container
Model type :
A or B
Filter area :
38-1140
Air volum :
1-2.5 m/min
Bag length :
2-6m
Circle number :
1-4
Bag number :
24-240
Description

Dedusting System Industrial Dust Collect For Machinery, Casting, Mining, Smelting, Building Materials, Food And Chemical

We produce low-performance standalone dust collectors for local filtration as well as high-performance modular dust collectors which can be easily combined to form assemblies with the required air volume.

Main applications

  • storing silos and bunkers
  • conveyors transfer points
  • coal handling
  • truck unloading
  • steel & slag
  • mining & quarrying
  • grinding mills, polishing shops

Benefits of our dust collectors

  • spare parts (cartridges) on stock
  • compact design
  • easy maintenance
  • JET-PULS recovery
  • dust outlet concentration below 10 mg/m3

Dust collector is designed with the following parameters

  • requested air volume and filter area
  • dust physical properties (abrasive, corrosive, explosive etc.)
  • application type (silo dedusting, local filtration, central dedusting)
  • rest dust manipulation method (rotary valve, dust container, back to silo or conveyor etc.)
  • temperature (ambient, product)

Specifications

specification model Filter area(m2) Air volume

Bag length

(m)

 circle Bag number efficence% resistance

Outer diameter

(d×h)(mm)

 weight(kg)
V m/min m3/h Pa
ZC-24/2 A 38 1.0-1.5 2280-3420 2 1 24 ＞99 1500 ф1690×4370 1916
B 38 2.0-2.5 4560-5700 2 1 24 ф1690×4370 1916
ZC-24/3 A 57 1.0-1.5 3420-5130 3 1 24 ф1690×5370 2086
B 57 2.0-2.5 6840-8550 3 1 24 ф1690×5370 2086
ZC-24/4 A 79 1.0-1.5 4740-7110 4 1 24 ф1690×6370 2263
B 79 2.0-2.5 9480-11850 4 1 24 ф1690×6370 2263
ZC-72/2 A 114 1.0-1.5 6840-10260 2 2 72 ф2530×5030 4150
B 114 2.0-2.5 13650-17100 2 2 72 ф2530×5030 4150
ZC-72/3 A 170 1.0-1.5 10200-15500 3 2 72 ф2530×6030 4868
B 170 2.0-2.5 20400-25500 3 2 72 ф2530×6030 4868
ZC-72/4 A 228 1.0-1.5 13680-20520 4 2 72 ф2530×7030 5587
B 228 2.0-2.5 27360-34200 4 2 72 ф2530×7030 5587
ZC-144/3 A 340 1.0-1.5 20400-30600 3 3 144 ф3530×7145 8900
B 340 2.0-2.5 40800-51000 3 3 144 ф3530×7145 8900
ZC-144/4 A 450 1.0-1.5 27000-40500 4 3 144 ф3530×8145 11760
B 450 2.0-2.5 54000-67500 4 3 144 ф3530×8145 11760
ZC-144/5 A 569 1.0-1.5 34140-51210 5 3 144 ф3530×9145 14280
B 569 2.0-2.5 68280-85350 5 3 144 ф3530×9145 14280
ZC-144/4 A 760 1.0-1.5 45600-68400 4 4 240 ф4380×9060 16100
B 760 2.0-2.5 91200-114000 4 4 240 ф4380×9060 16100
ZC-144/5 A 950 1.0-1.5 57000-85500 5 4 240 ф4380×10370 18270
B 950 2.0-2.5 114000-142500 5 4 240 ф4380×10370 18270
ZC-144/6 A 1140 1.0-1.5 68400-102600 6 4 240 ф4380×11870 20039
B 1140 2.0-2.5 136800-171000 6 4 240 ф4380×11870 20039
