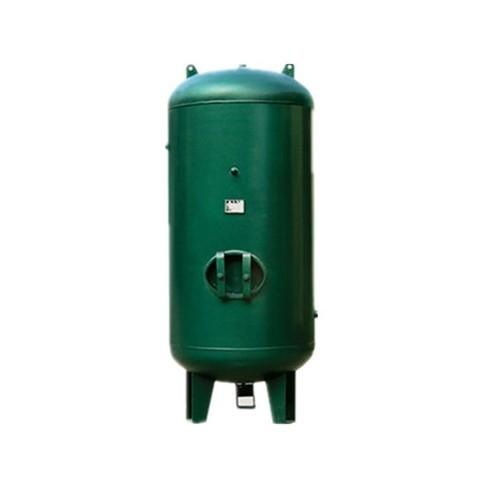

Steel Small Vertical Air Receiver Tank For Screw Air Compressor 0.3~50m3
Steel Small Vertical Air Receiver Tank For Screw Air Compressor 0.3~50m3
Specifications
Brand Name :
Wan Beardsley
Model Number :
C-0.6/0.8
Certification :
ISO9001, CE
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per month
Delivery Time :
1-15 workdays after deposit.
Packaging Details :
exporting wooden case / plywood case
Condition :
New air receiver tank
Material :
Carbon steel
Color :
Blue
Warranty :
1 year
Volume / Pressure :
0.3m3 @ 116psi / 8bar / 0.8Mpa
Description

China Factory C-0.6/0.8 Vertical type air receiver tank for screw air compressor 0.3~50m3 @ 8~16bar


General introduction of air tank
Both inside and outside of the tank are blasted and rust removed by high speed air flow, with best surface quality and service guarantee.
The tank can be designed and different dimensioned by customer different requirements.
Energy saving, buffer air.
Certification of the pressure container.


Detailed Product Specifications of air storage tank:

No. Specifications

design

temperature

°C

 high
H1
dimension
Φ		 air inlet air outlet support relief valve connector Nozzle of dyain valve
volume/pressure H2 DN Thread type H3 DN Thread type D d
1 0.3/0.8 110 1594 550 642 65 Rp1½ 1242 65 Rp1½ 400 20 Rp3/4 R1/2
2 0.3/1.0 1594 642 1242
3 0.3/1.3 1598 644 1244
4 0.3/1.6 1598 644 1244
5 0.6/0.8 110 1905 700 680 65 Rp1½ 1550 65 Rp1½ 490 24 Rp3/4 R1/2
6 0.6/1.0 1907 681 1551
7 0.6/1.3 1909 682 1552
8 0.6/1.6 1907 681 1551
9 1.0/0.8 110 2365 800 730 80 Rp1½ 1960 80 Rp1½ 560 24 Rp1 R1/2
10 1.0/1.0 2367 731 1961
11 1.0/1.3 2367 731 1961
12 1.0/1.6 2367 731 1961
13 1.5/0.8 110 2727 900 736 80 Rp2" 2296 80 Rp2" 630 24 Rp1 R3/4
14 1.5/1.0 2729 737 2297
15 1.5/1.3 2727 736 2296
16 1.5/1.6 2731 738 2298
17 2.0/0.8 110 2782 1000 761 80 Rp2" 2321 80 Rp2" 700 24 Rp1¼ R3/4
18 2.0/1.0 2786 763 2323
19 2.0/1.3 2782 761 2321
20 2.0/1.6 2786 763 2323
21 2.5/0.8 110 2834 1100 787 80 2347 80 770 24 Rp1¼ R3/4
22 2.5/1.0 2836 788 2348
23 2.5/1.3 2836 788 2348
24 2.5/1.6 2836 788 2348
25 3.0/0.8 110 2944 1200 872 100 2432 100 906 24 Rp1½ R3/4
26 3.0/1.0 2946 873 2433
27 3.0/1.3 2946 873 2433
28 3.0/1.6 2980 890 2450
29 4.0/0.8 110 3056 1400 933 100 2493 100 1050 24 Rp1½ R3/4
30 4.0/1.0 3090 950 2510
31 4.0/1.3 3056 933 2493
32 4.0/1.6 3090 950 2510
33 5.0/0.8 110 3746 1400 933 125 3033 125 1050 24 Rp2 R1
34 5.0/1.0 3780 950 3050
35 5.0/1.3 3746 933 3033
36 5.0/1.6 3780 950 3050


World Class Products: We provide our customers with kinds of products with world class quality.

After sales Service and Technical Assistance:The Company provides after sales service and technical assistance as per the customers requirement and needs.

our products are widely used in air compressor fieldwith good feedback and continuous orders from more than 2,000 customers in domestic and oversea market.We can solve any technical problems you may encounter with your air compressor and provide many kinds of air compressor parts for you.

Why us

24 hours a day, 7 days a week

One-stop purchasing

Cheap, fast and efficient

adequate stocks

15 years experiences

Seriously quality control

Superb technique
