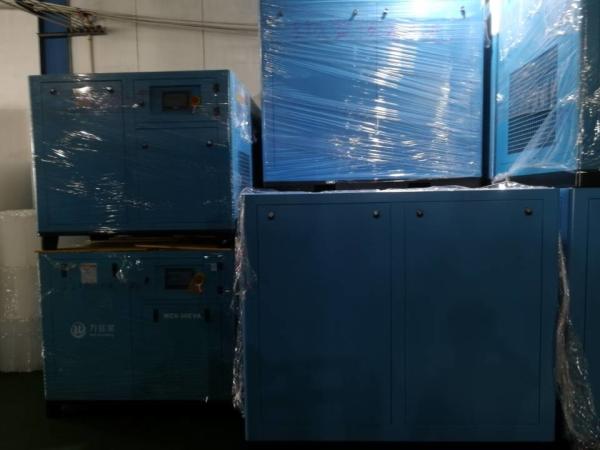

Low Decibel Quiet Portable Air Compressor , 20 Hp Oil Injected Air Compressor
Low Decibel Quiet Portable Air Compressor , 20 Hp Oil Injected Air Compressor
Specifications
Brand Name :
Wan Beardsley
Model Number :
WZS-10AZ
Certification :
ISO9001, CE
Place of Origin :
Shanghai, China
MOQ :
Negotiation
Price :
Negotiated
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per month
Delivery Time :
1-15 workdays after deposit.
Packaging Details :
exporting wooden case / plywood case
Condition :
Quiet Portable Air Compressor
Feature :
Low Decibel
Capacity :
1.2m3/min @ 101psi/7bar
Capacity 2 :
1.1m3/min @ 116psi/8bar
Capacity 3 :
0.95m3/min @ 145psi/10bar
Capacity 4 :
0.8m3/min @ 181psi/12.5bar
Motor grade :
IP55
Other Name :
Oil Injected Air Compressor
Transmission Mode :
direct driven
Bearing :
SKF (Sweden)
Description

Low Decibel Quiet Portable Air Compressor , 20 Hp Oil Injected Air Compressor

Highly efficient cooling system

It adopts highly efficient fin-type cooler with large heat exchange area, surplus of heat exchange being 30% and more optimal cooling effect, and it can normally operate under environmental temperature 45°C.

Oil-gas separator

  • Ultra-large oil separating cylinder and core specially designed for 0.5Mpa and 0.3Mpa, which effectively ensure lower energy consumption.
  • Air filter, oil-gas separator and oil separation core are imported with original packaging from Germany.
  • Three-level fine separation—rotational gravity, mechanical collusion and adsorptive condensation
  • Drum lid goes through galvanization processing, so it is beautiful and will never be rusted;
  • Suspension type cushion which avoids pipeline fracture caused by vibration;

Screw host machine firstly compresses air to OJMpa, then reduce pressure to 0.5Mpa by means of reducing valve, that1 s to say, when you use 0.5Mpa pressure, you bear 0.7Mpa power consumption, and if you use

3Mpa pressure, then you will have to spend extra money

For one 132KW/0.7Mpa screw air compressor, its air discharge should be 24m3/min. However, for our 132KW/0.5Mpa screw air compressor, its air discharge can reach 30m3/min; for 132KW/0.3Mpa screw air compressor, its air discharge exceeds 37m3/min.

Detailed Product Specifications:

Model WZS-10AZ
Air Flow/Working pressure 1.2m3/min @ 7bar
1.1m3/min @ 8bar
0.95m3/min @ 10bar
0.8m3/min @ 12.5bar
Compression stage Single
Type of Cooling Air Cooling
Exhaust Temperature < ambient temperature+8 degrees
Oil content of discharged air <2ppm
Noise 66±2 dB(A)
Power 380VAC/3phase/50Hz (Adjustable)
Starting way Y-△ Starting
Driven method Direct-driven
Motor power 7.5kw/10hp
Dimension 1000*600*1000mm
Weight 240kg
