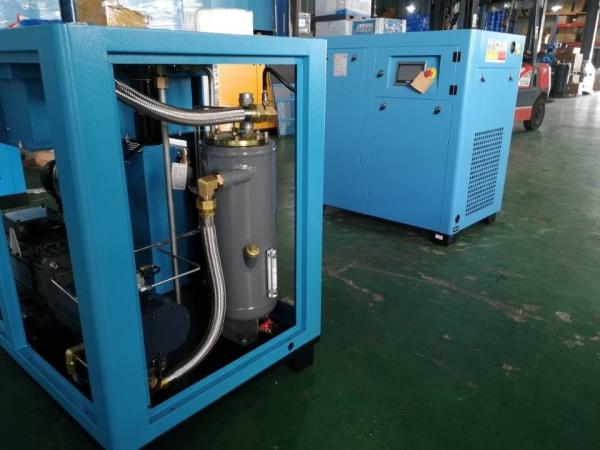

Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor
Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor
Specifications
Brand Name :
Wan Beardsley
Model Number :
WZS-400AZ
Certification :
ISO9001, CE
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per month
Delivery Time :
1-15 workdays after deposit.
Packaging Details :
exporting wooden case / plywood case
Condition :
Small Electric Air Compressor
Cooling :
Air Cooling
Capacity :
48.2 m3/min @ 116psi/8bar
Air end :
HANBELL (Taiwan)
Motor grade :
IP55/54 , F
Power Supply :
220/380/440V 50/60Hz 3Ph
Transmission Mode :
Direct driven
Warranty :
1 year Compressor unit, 2 yesrs AIR END
Description

Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor

Small Electric Air Compressor Details

Highly efficient host machine

In order to meet your requirements, highly efficient permanent magnetic host machines of 0.5Mpa, 0.4Mpa and 0.3Mpa air compressors are specially designed for you, in the meantime, we also specially design extra-large oil separating cylinder and oil-gas separating filter element to ensure that oil consumption is below 2ppm.

Selecting

Selecting our permanent magnetic low-voltage series of screw air compressors is equivalent to selecting world first-class screw air compressors with low oil consumption, low noise, low maintenance rate and high reliability, and what is more important is that it means selecting to save electric charge by about 30% in each year.

Small Electric Air Compressor Specifications:

Model WZS-400AZ
Air Flow/Working pressure 50.8m3/min @ 7bar
48.2m3/min @ 8bar
42.6m3/min @ 10bar
39.8m3/min @ 12.5bar
Compression stage Single
Type of Cooling Air Cooling
Exhaust Temperature < ambient temperature+8 degrees
Oil content of discharged air <2ppm
Noise 80±2 dB(A)
Power 380VAC/3phase/50Hz (Adjustable)
Starting way Y-△ Starting
Driven method Direct-driven
Motor power 300kw/400hp
Dimension 4200*2200*2150mm
Weight 7000kg

WZS- 10AZ 15AZ 20AZ 25AZ 30AZ 50AZ 75AZ 100AZ 125AZ
Air flow/pressure (m³/min/MPa) 1.2/0.7 1.7/0.7 2.4/0.7 3.1/0.7 3.8/0.7 6.4/0.7 10.5/0.7 13.6/0.7 16.3/0.7
1.1/0.8 1.6/0.8 2.2/0.8 2.9/0.8 3.5/0.8 6.1/0.8 9.8/0.8 13.3/0.8 15.0/0.8
0.95/1.0 1.4/1.0 2.0/1.0 2.7/1.0 3.2/1.0 5.7/1.0 8.7/1.0 11.6/1.0 14.6/1.0
0.8/1.25 1.2/1.25 1.7/1.25 2.2/1.25 2.9/1.25 5.1/1.25 7.5/1.25 9.8/1.25 12.3/1.25
Motor Power (kw) 7.5 11 15 18.5 22 37 55 75 90
Horse power (HP) 10 15 20 25 30 50 75 100 125
Dimension Length(mm) 1000 1040 1040 1100 1400 1600 2050 2050 2150
Width (mm) 600 800 800 850 850 1000 1200 1200 1300
Height (mm) 1000 1180 1180 1300 1150 1370 1500 1500 1700
Noise dB(A) 66±2 70±2 70±2 70±2 71±2 74±2 74±2 75±2 75±2
Outlet diameter G3/4 G3/4 G3/4 G11/4 G11/4 G11/2 G2 G2 G2
Weight (kg) 240 400 410 590 620 840 1735 1850 1920


Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor

Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor

Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor

Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor

Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor

Air Cooling Small Electric Air Compressor / Low Noise Medical Air Compressor
