Variable Frequency Energy Saving Air Compressor IP54 Motor Low Maintenance
Variable Frequency Energy Saving Air Compressor IP54 Motor Low Maintenance
Specifications
Brand Name :
Wan Beardsley
Model Number :
WZS-125AZ
Certification :
ISO9001, CE
Place of Origin :
Shanghai, China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per month
Delivery Time :
1-15 workdays after deposit.
Packaging Details :
exporting wooden case / plywood case
Name :
Energy Saving Air Compressor
Power :
90kW
Advantage :
Low Maintenance
Motor grade :
IP54 Motor
Transmission Mode :
direct driven
Frequency :
Variable Frequency
Color :
Green /Blue /White or as your customized.
Feature :
silent
Description

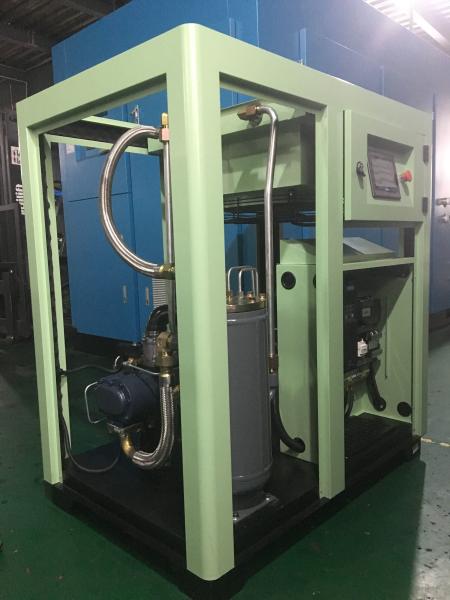

Variable Frequency Energy Saving Air Compressor IP54 Motor Low Maintenance

Energy Saving Air Compressor Advantages

Super strong intelligent monitoring IoT (Internet of Things) technology allow you to do infinite extension, cellphone and computer remote control;

True color display, touch screen control for at least one million times, support 32 languages setting;

IP54 servo permanent magnetic motor, EU IE4 standard, magnetic steel has ten-year warranty with lifelong maintenance;

Client power utilization doesn7 t need to install electricity meter, and displayer directly displays it;

Each permanent magnetic variable-frequency air compressor is featured by low noise, low energy consumption and low maintenance, averagely saving energy by over 35%

High-efficient and muting centrifugal variable frequency draught fan;

Energy Saving Air Compressor Specifications:

Model WZS-125AZ Energy Saving Air Compressor
Air Flow/Working pressure 16.3m3/min @ 7bar
15.0m3/min @ 8bar
14.6m3/min @ 10bar
12.3m3/min @ 12.5bar
Compression stage Single
Type of Cooling Air Cooling
Exhaust Temperature < ambient temperature +8 degrees
Oil content of discharged air <2ppm
Noise 75±2 dB(A)
Power 380VAC/3phase/50Hz (Adjustable)
Starting way Soft VSD start
Driven method Direct-driven
Motor power 90kw/125hp
Dimension 2150*1300*1700mm
Weight 1920kg

WZS- 20AZ 25AZ 30AZ 50AZ 75AZ 100AZ 125AZ
Air flow/pressure (m³/min/MPa) 2.4/0.7 3.1/0.7 3.8/0.7 6.4/0.7 10.5/0.7 13.6/0.7 16.3/0.7
2.2/0.8 2.9/0.8 3.5/0.8 6.1/0.8 9.8/0.8 13.3/0.8 15.0/0.8
2.0/1.0 2.7/1.0 3.2/1.0 5.7/1.0 8.7/1.0 11.6/1.0 14.6/1.0
1.7/1.25 2.2/1.25 2.9/1.25 5.1/1.25 7.5/1.25 9.8/1.25 12.3/1.25
Motor Power (kw) 15 18.5 22 37 55 75 90
Horse power (HP) 20 25 30 50 75 100 125
Dimension Length(mm) 1040 1100 1400 1600 2050 2050 2150
Width (mm) 800 850 850 1000 1200 1200 1300
Height (mm) 1180 1300 1150 1370 1500 1500 1700
Noise dB(A) 70±2 70±2 71±2 74±2 74±2 75±2 75±2
Outlet diameter G3/4 G11/4 G11/4 G11/2 G2 G2 G2
Weight (kg) 410 590 620 840 1735 1850 1920

WZS- 150AZ/W 180AZ/W 220AZ/W 250AZ/W 400AZ/W 480AZ/W 540AZ/W
Air flow/pressure (m³/min/MPa) 20.3/0.7 24.0/0.7 27.0/0.7 32.5/0.7 50.8/0.7 60.0/0.7 72.0/0.7
19.0/0.8 23.0/0.8 26.5/0.8 31.0/0.8 48.2/0.8 57.0/0.8 68.0/0.8
17.0/1.0 20.0/1.0 22.5/1.0 28.0/1.0 42.6/1.0 50.0/1.0 60.5/1.0
14.6/1.25 18.0/1.25 20.1/1.25 25.1/1.25 39.8/1.25 45.0/1.25 50.5/1.25
Motor Power (kw) 110 132 160 185 300 350 400
Horse power (HP) 150 180 220 250 400 480 540
Dimension Length(mm) 2800 2800 2800 2800 4200 4200 4200
Width (mm) 1650 1650 1650 1650 2200 2200 2200
Height (mm) 1850 1850 1850 1850 2150 2150 2150
Noise dB(A) 75±2 75±2 75±2 78±2 80±2 82±2 83±2
Outlet diameter DN65 DN65 DN80 DN80 DN125 DN125 DN150
Weight (kg) 3030 3130 3210 3470 7000 7500 8100

About US

Wan Beardsley Compressor (Shanghai) Co., Ltd. is headquartered in Shanghai Jiading Industrial Park, which is a professional manufacturer of energy-saving air compressors in China. In research and development, we always adhere to the design concept of high efficiency, energy saving, quietness and environmental protection, and constantly innovate to develop high-efficiency and energy-saving permanent magnet variable frequency screw air compressors suitable for customers at home and abroad. Our products include integrated wind and oil cooling. Magnetic variable frequency screw air compressor series, non-inductive permanent magnet variable frequency screw air compressor series, servo permanent magnet variable frequency screw air compressor series, low voltage permanent magnet variable frequency screw air compressor series, two-stage compression permanent magnet variable frequency screw air compressor series Water-lubricated oil-free permanent magnet variable frequency screw air compressor series, dry oil-free permanent magnet variable frequency screw air compressor series, refrigerating dryer series, adsorption dryer series, high efficiency precision filter series, gas storage tank, etc. Its products have been distributed all over the country and exported to Europe, North America, South America, Southeast Asia and the Middle East.
