Specifications
Brand Name :
Schneider
Model Number :
140CRA93100
Place of Origin :
FR
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
2-3 work days
Packaging Details :
New in original box
Brand :
Schneider
Model :
140CRA93100
Palce of Origin :
FR
Type :
Processor/Controller
dynamic range :
35 dB
Series :
Quantum I/O
Module format :
Standard
Transmission rate :
1544 Mbit/s
Description

Redundant Power Supply Module Modicon RIO Drop Adapter Module 140CRA93100




Main
range of product
Modicon Quantum automation platform
product or component type
RIO drop adaptor module
Complementary
product compatibility
Quantum number of I/O expansion module <= 27
type of cable Coaxial 75 Ohm
transmission rate 1544 Mbit/s
dynamic range 35 dB
isolation voltage 500 V DC coaxial center and ground
electrical connection 1 female connector F elbowed with single cable
diagnostics startup
RAM address/data
Executive checksum
Power up and runtime
power dissipation in W 3 W 1 channel
bus current requirement 600 mA 1 channel
module format Standard
Environment
resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields
10 V/m 80...1000 MHz conforming to IEC 801-3
ambient air temperature for operation 0...60 °C
ambient air temperature for storage -40...85 °C
relative humidity 95 % without condensation
operating altitude <= 5000 m
Offer Sustainability
Sustainable offer status Green Premium product
RoHS (date code: YYWW)
Compliant - since 0901 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Product environmental profile Available End of life manual
Product end of life instructions Available
Contractual warranty
Warranty period 18 months

OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
Fanuc motor A0- Yokogawa transmitter EJA-
Contact person: Anna
E-mail: wisdomlongkeji@163.com
Cellphone: +0086-13534205279

Similar Products

140CPU113-02 (S) 140CPU11302C 140CPU11303
140CPU11303C 140CPU21304 140CPU213-04
140CPU21304C 140CPU213-4 (S) 140CPU42402
140CPU42402C 140CPU43412 140CPU43412C
140CPU434-14 140CPU53414 140CPU534-14
140CPU53414C 140CRA21110 140CRA21110C
140CRA21120 140CRA21120C 140CRA21210
140CRA21210C 140CRA21220 140CRA21220C
140CRA93100 140CRA93100C 140CRA93101
140CRA93101C 140CRA93200 140CRA93200C
140CRP81100 140CRP81100 140CRP93100

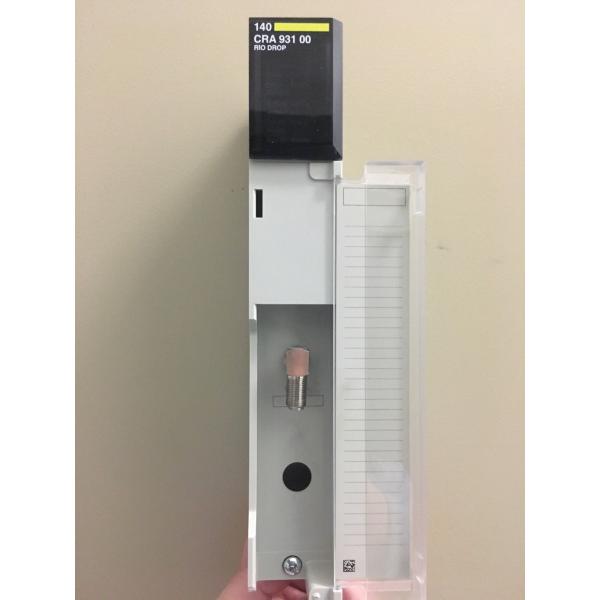

Rio Drop Adaptor Module Modicon Quantum - 1 Connector With Single Cable
Quantum | 140CRA93100 | Modicon | 140 CRA 931 00 | RIO Drop S908 1CH
The Remote I/O Drop Single Channel modules are used to transfer data bi-directionally over a coaxial cable network between I/O modules installed in the same (RIO drop) backplane and the RIO head installed in the CPU backplane. Two rotary switches are located on the rear panel of the RIO Drop Modules and are used for setting RIO drop addresses. SW1 (top switch) sets the upper digit (tens) ; SW2 (bottom switch) sets the lower digit (ones).

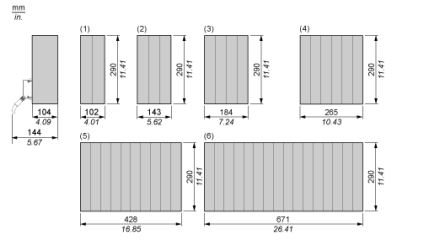

Dimensions of Modules and Racks


Quantum I / O Power Interface Module 1544 Mbit / S Transmission Rate 140CRA93100
(1) 2 slots
(2) 3 slots
(3) 4 slots
(4) 6 slots
(5) 10 slots
(6) 16 slots


The card is not seeing one or more of the IO modules configured for the drop. A module could be in the wrong slot or missing, it also could mean that it has failed. If the IO module is functioning correctly, the word "Active" will appear at the top of the module. If none of the IO modules are "Active" it could be that the address switches at the back of the CRA are not set up correctly. If all modules have the word 'Active', it could be that the Power Supply model number that is in the slot does not match the one in the configuration.
