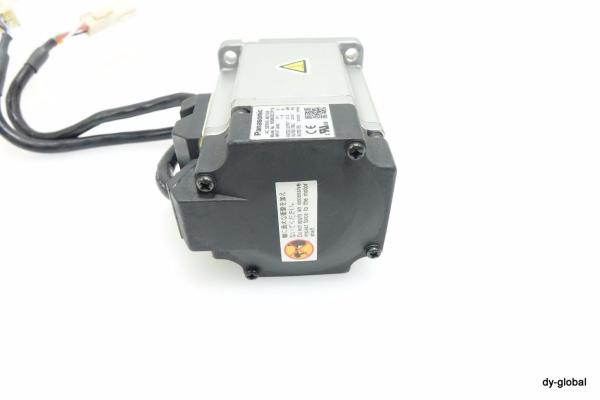

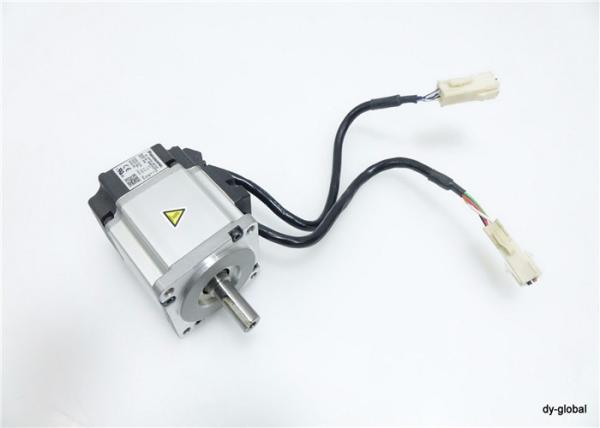

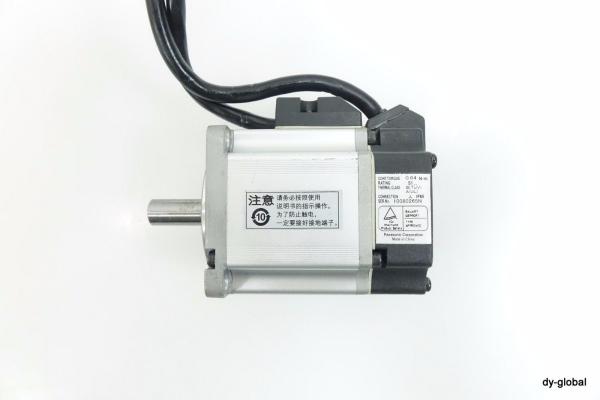

Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S
Specifications
Brand Name :
Panasonnic
Model Number :
MSMD022P1S
Place of Origin :
Japan
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100
Delivery Time :
2-3 work days
Packaging Details :
New in original box
Brand :
Panasonnic
Model :
MSMD022P1S
Type :
AC SERVO MOTOR
Power :
0.2W
Ralted REV :
3000 r/min
Description

Panasonic Servo Motor K7 200W 2500p/r Incremental Encoder Motor MSMD022P1S

1. About Regenerative brake frequency
the frequency of the motor's stops from the rated speed with deceleration without load.
. If the load is connected, frequency will be defines as 1/(m+1), where m=load moment of inertia/rotor moment of inertia.
・ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to thesquare of (running speed/rated speed).
・Power supply voltage is AC115 V(at 100 V of the main voltage),AC230 V(at 200 V of the main voltage).
If the supply voltage fluctuates, frequency is in inverse proportion to the square of (Running supply voltage)relative to the value in the table.
・When regeneration occurs continuously such cases as running speed frequently changes or vertical feeding, consult us ora dealer.
2. About unlimited regenerative brake frequency
If the effective torque is within the rated torque, there is no limit in generative brake.
3. About recommended moment of inertia ratio of the load and the rotor
Consult us or a dealer if the load moment of inertia exceeds the specified value.
For details, check the catalog and instruction manuals
Specifications:

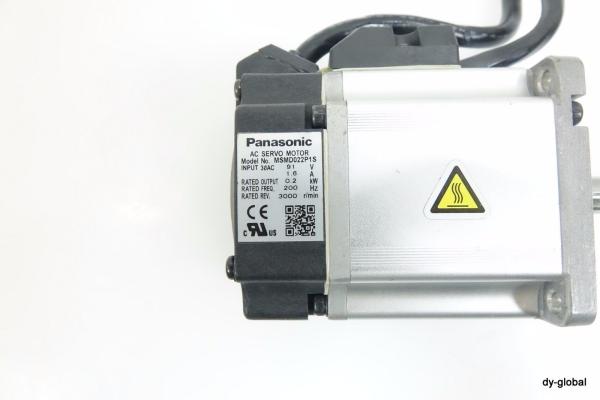

Part Number MSMD022P1S
Product MINAS A4 Family Servo motor
Details Low inertia, Lead wire type, IP65
Product name MINAS A4 Family Servo Motor
Item Specifications
Part Number MSMD022P1S
Details Low inertia, Lead wire type, IP65
Family Name MINAS A4 Family
Series MSMD Series
Type Low inertia
Enclosure IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Environmental Conditions For more details, please refer to the instruction manual.

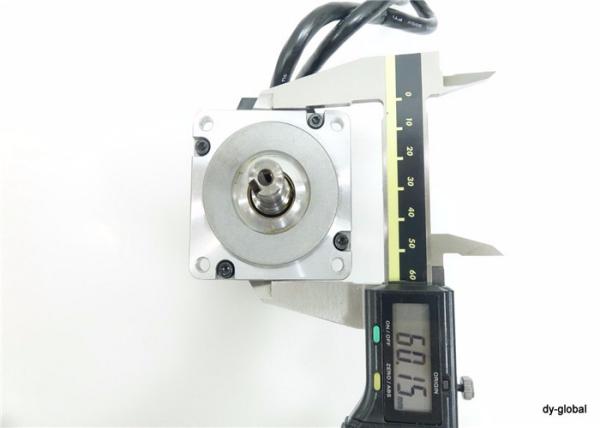

Flange sq. dimension 60 mm sq.
Flange sq. dimension (Unit:mm) 60
Motor lead-out configuration Lead wire

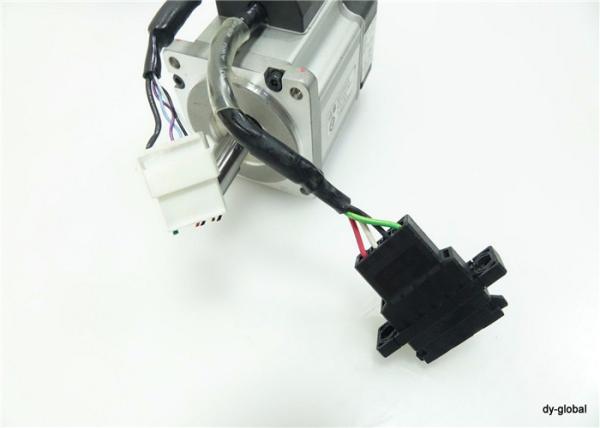

Motor encoder connector Lead wire
Voltage specifications 200 V
Rated output 200 W
Holding brake without
Mass (kg) 0.82
Oil seal without
Shaft Key-way, Shaft end, Center tap
Rated torque (N ⋅ m) 0.64
Momentary Max. peak torque (N ⋅ m) 1.91
Max. current (A (o-p)) 6.9
Regenerative brake frequency (times/min) Without option :No limit
With option : No limit
Option (External regenerative resistor) Part No. : DV0P4283
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 5000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.14
Recommended moment of inertia ratio of the load and the rotor 30times or less
Rotary encoder: specifications 2500 P/r Incremental system
