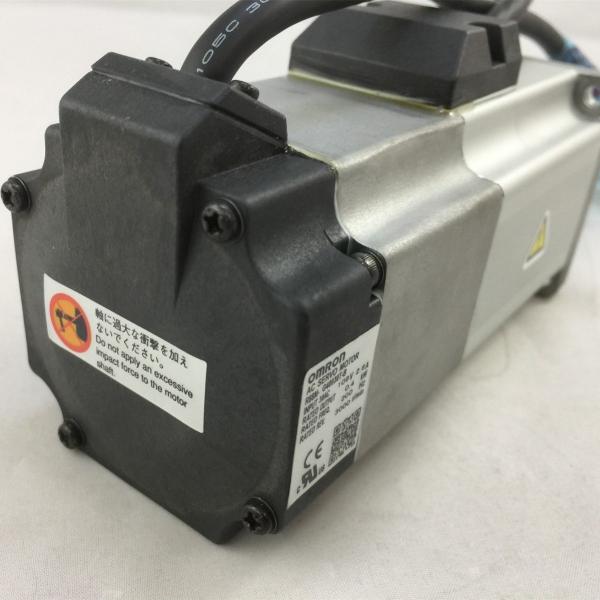

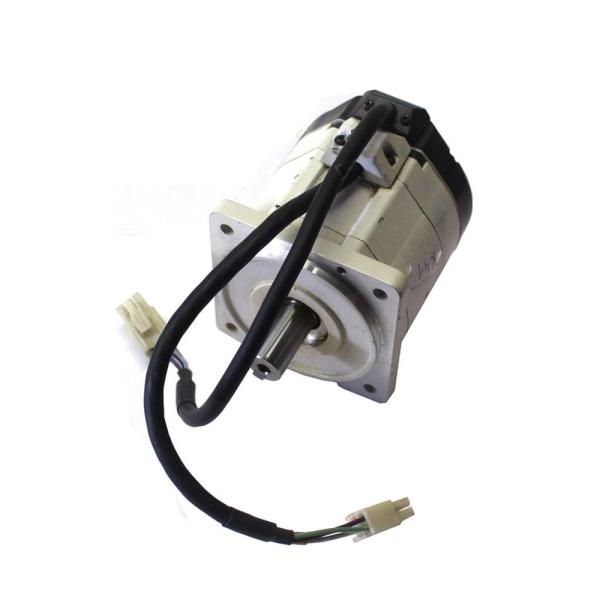

R88M-GP10030T-Z AC Servomotor With ABS/INC OMRON Encoder Flat-Style 100W 200 VAC Without Key / Without Brake 3000rpm
R88M-GP10030T-Z AC Servomotor With ABS/INC OMRON Encoder Flat-Style 100W 200 VAC Without Key / Without Brake 3000rpm
R88M-GP10030T-Z AC Servomotor With ABS/INC OMRON Encoder Flat-Style 100W 200 VAC Without Key / Without Brake 3000rpm
R88M-GP10030T-Z AC Servomotor With ABS/INC OMRON Encoder Flat-Style 100W 200 VAC Without Key / Without Brake 3000rpm
Specifications
Brand Name :
OMRON
Model Number :
R88M-GP10030T-Z
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
5-8 work days
Packaging Details :
New in original box
Certification :
CE
Brand :
OMRON
Model :
R88M-GP10030T-Z
Origin :
China
Voltage :
100-200V
Power :
25 kw
Warranty :
1 Year
Description

R88M-GP10030T-Z AC Servomotor With ABS/INC OMRON Encoder Flat-Style 100W 200 VAC Without Key / Without Brake 3000rpm

3,000-r/min Flat Servomotors

Model (R88M-) 100 VAC 200 VAC
GP10030L GP20030L GP40030L GP10030H GP20030H GP40030H
Item Unit GP10030S GP20030S GP40030S GP10030T GP20030T GP40030T
Rated output *1 W 100 200 400 100 200 400
Rated torque *1 N·m 0.32 0.64 1.3 0.32 0.64 1.3
Rated rotation speed r/min 3000
Max. momentary rotation
speed		 r/min 5000 4500 5000
Max. momentary torque *1 N·m 0.84 1.8 3.6 0.86 1.8 3.65
Rated current *1 A (rms) 1.6 2.5 4.4 1 1.6 2.5
Max. momentary current
*1		 A (rms) 4.9 7.5 13.3 3.1 4.9 7.5
Rotor inertia kg·m2
(GD2/4)		 1.0 × 10-5 3.5 × 10-5 6.5 × 10-5 1.0 × 10-5 3.5 × 10-5 6.4 × 10-5
Applicable load inertia --- 20 times the rotor inertia max. *2
Torque constant *1 N·m/A 0.21 0.27 0.3 0.34 0.42 0.54
Power rate *1 kW/s 10.2 11.7 26.0 10.2 11.5 25.5
Mechanical time constant ms 0.87 0.75 0.55 1.05 0.81 0.59
Electrical time constant ms 3.4 6.7 6.7 2.9 5.6 6.6
Allowable radial load *3 N 68 245 245 68 245 245
Allowable thrust load *3 N 58 98 98 58 98 98
Weight Without brake kg Approx. 0.7 Approx. 1.3 Approx. 1.8 Approx. 0.7 Approx. 1.3 Approx. 1.8
With brake kg Approx. 0.9 Approx. 2 Approx. 2.5 Approx. 0.9 Approx. 2 Approx. 2.5
Radiation shield dimensions (material) 130 × 120
× t10 (AI)		 170 × 160 × t12 (AI) 130 × 120
× t10 (AI)		 170 × 160 × t12 (AI)
Applicable Servo Drives (R88D-) GT01L GT02L GT04L GT01H GT02H GT04H
Brake
spec-
ifica-
tions		 Brake inertia kg·m2
(GD2/4)		 3 × 10-6 9 × 10-6 3 × 10-6 9 × 10-6
Excitation voltage
*4		 V 24 VDC ± 10%
Power
consumption
(at 20 °C)		 W 7 10 7 10
Current
consumption
(at 20 °C)		 A 0.29 0.41 0.29 0.41
Static friction
torque		 N·m 0.29 min. 0.29 min. 1.27 min.
Attraction time
*5		 ms 50 max. 50 max. 60 max.
Release time *5 ms 15 max.
Backlash ± 1 °
Allowable work per
braking		 J 137 196 137 196
Allowable total work J 44.1 × 103 147 × 103 44.1 × 103 147 × 103
Allowable angular
acceleration		 rad/s2 10,000 max.
(Speed of 900 r/min or more must not be changed in less than 10 ms)
Brake life --- 10,000,000 operations min.
Rating --- Continuous Continuous
Insulation grade --- Type F

*1. These are the values when the Servomotor is combined with a Servo Drive at room temperature (20°C, 65%). The
maximum momentary torque shown above indicates the standard value.
*2. Applicable Load Inertia:
• The operable load inertia ratio (load inertia/rotor inertia) depends on the mechanical configuration and its rigidity.
For a machine with high rigidity, operation is possible even with high load inertia. Select an appropriate motor and
confirm that operation is possible.
• If the dynamic brake is activated frequently with high load inertia, the dynamic brake resistor may burn. Do not
repeatedly turn the Servomotor ON and OFF while the dynamic brake is enabled.
• The dynamic brake is designed only for emergency stops. Design the system so that the Servomotor remains
stopped for at least 3 minutes after applying the dynamic brake. Otherwise the dynamic brake circuits may fail.
*3. The allowable radial and thrust loads are the values determined for a service life of 20,000 hours at normal operating
temperatures. The allowable radial loads are applied as shown in the following diagram.
*4. This is an OFF brake. (It is reset when excitation voltage is applied).
*5. The operation time is the value (reference value) measured with a surge suppressor (CR50500 manufactured by
Okaya Electric Industries Co., Ltd.).

Similar Model Products

Specifications Model
Straight shaft Straight shaft with key and tap
Without brake 100 V 100 W R88M-GP10030S R88M-GP10030S-S2
200 W R88M-GP20030S R88M-GP20030S-S2
400 W R88M-GP40030S R88M-GP40030S-S2
200 V 100 W R88M-GP10030T R88M-GP10030T-S2
200 W R88M-GP20030T R88M-GP20030T-S2
400 W R88M-GP40030T R88M-GP40030T-S2
With brake 100 V 100 W R88M-GP10030S-B R88M-GP10030S-BS2
200 W R88M-GP20030S-B R88M-GP20030S-BS2
400 W R88M-GP40030S-B R88M-GP40030S-BS2
200 V 100 W R88M-GP10030T-B R88M-GP10030T-BS2
200 W R88M-GP20030T-B R88M-GP20030T-BS2
400 W R88M-GP40030T-B R88M-GP40030T-BS2

R88M-GP10030T-Z AC Servomotor With ABS/INC OMRON Encoder Flat-Style 100W 200 VAC Without Key / Without Brake 3000rpm

R88M-GP10030T-Z AC Servomotor With ABS/INC OMRON Encoder Flat-Style 100W 200 VAC Without Key / Without Brake 3000rpm
