2x8Ch Digital Input Relay Remote Input Output Module ABB 3BSE008552R1 DI811
2x8Ch Digital Input Relay Remote Input Output Module ABB 3BSE008552R1 DI811
2x8Ch Digital Input Relay Remote Input Output Module ABB 3BSE008552R1 DI811
2x8Ch Digital Input Relay Remote Input Output Module ABB 3BSE008552R1 DI811
Specifications
Brand Name :
ABB
Model Number :
DI811
Certification :
CE
Place of Origin :
USA / FI etc
MOQ :
1
Price :
Contact us
Payment Terms :
T/T / Paypal
Supply Ability :
50
Delivery Time :
In Stock
Packaging Details :
New Original Box
Product Name :
Input Module
Model No. :
DI811
Order No. :
3BSE008552R1
Input impedance :
11 kΩ
AC :
N/A V
Rated insulation voltage :
50 V
Dielectric test voltage :
500 V a.c.
Power dissipation :
Typ. 2.7 W
Description

ABB 3BSE008552R1 2x8Ch Digital Input Relay DI811 I/O Input Output Module



General Information

  • Product ID:

    3BSE008552R1

  • ABB Type Designation:

    DI811

  • Catalog Description:

    DI811 2x8 ch 48V Digital input

Type Digital Input
Signal specification 48 V d.c.
Article number 3BSE008552R1
Number of channels 16
Signal type Current sinking
HART No
SOE No
Redundancy No
High integrity No
Intrinsic safety No
Mechanics S800

Detailed Data:

Input voltage range, "0" -60..+10 V
Input voltage range, "1" 30..60 V
Input impedance 11 kΩ
Isolation Groupwise isolated from ground, 2 groups with 8 channels
Filter times (digital, selectable) 2, 4, 8, 16 ms
Current limiting Sensor power can be current limited by the MTU
Maximum field cable length 600 meters (656 yards)
Rated insulation voltage 50 V
Dielectric test voltage 500 V a.c.
Power dissipation Typ. 2.7 W
Current consumption +5 V Modulebus 50 mA
Current consumption +24 V Modulebus 0
Current consumption +24 V external 0

Description of DI811:

This S800 I O module has 16 digital inputs. The input signal voltage range is 36 to 60 volt d.c. and the input current

is 4 mA at 48 V. The inputs are divided into two individually isolated groups with eight channels and one

voltage supervision input in each group. Every input channel consists of current limiting components, EMC

protection components, input state indication LED and optical isolation barrier. The process voltage

supervision input give channel error signals if the voltage disappears.The error signal can be read via the

ModuleBus.

Features and benefits

  • 16 channels for 48 V d.c. inputs with current sinking

  • 2 isolated groups of 8 with voltage supervision

  • Input status indicators

Compability

Use with MTU:TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850

Keying code:BD

Dimensions

Height 119 mm (4.7”)
Width 45 mm (1.77”)
Depth 102 mm (4.01”), 111 mm (4.37”) including connector
Weight 0.15 kg (0.33 lbs.)

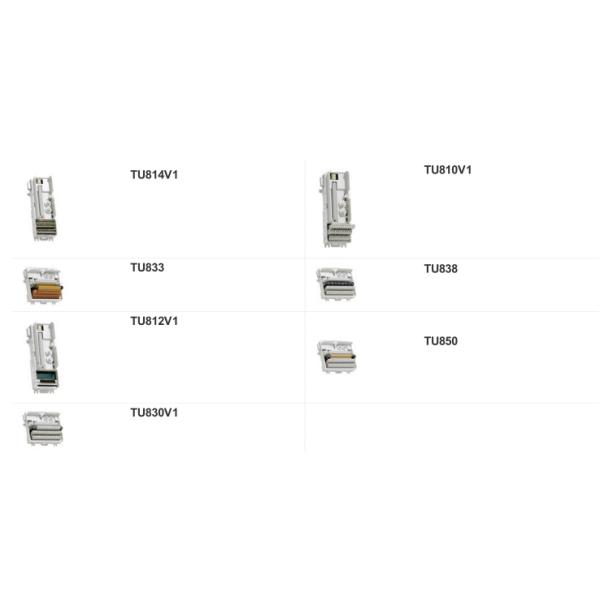

Related products

TU814V1
TU810V1
TU833

TU838
TU812V1
TU850
TU830V1
