Specifications
Brand Name :
GE
Model Number :
IC693CMM321
Place of Origin :
USA
MOQ :
1
Price :
negotiable
Payment Terms :
TT West Union
Supply Ability :
100
Delivery Time :
2-3 work days
Packaging Details :
New in original box
Brand :
GE
Model :
IC693CMM321
Product Name :
Programmable Controller
Series :
90-30
Weight :
1 LBS
Description

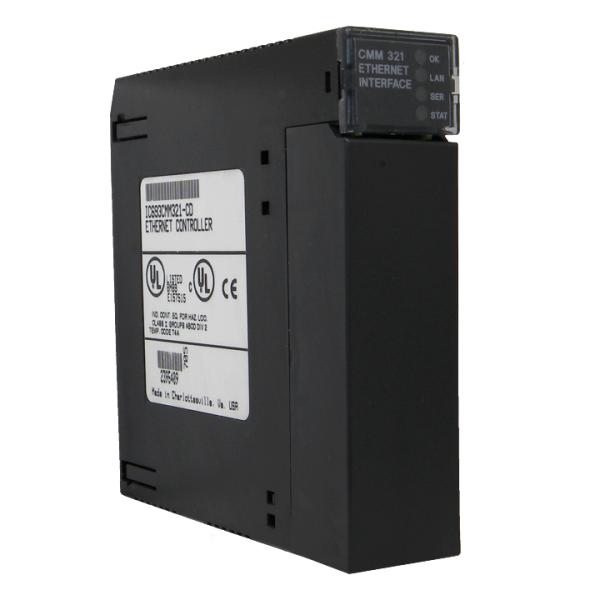

PLC Programmable Logic Controller IC693CMM321 GE FANUC SERIES 90-30 Ethernet Interface Module

The GE IC693CMM321 Ethernet Interface Module connects any GE Series 90-30 PLC to an Ethernet LAN. The Ethernet interface on the IC693 CMM321 allows for either client or server communication capabilities.

Older CMM321 modules (version -EF and earlier) communicate via an external transceiver port on the bottom of the module and an AAUI cable. The newer IC693CMM321 modules (version -EG and newer) have an RJ-11 Port right on the front of the module. We can support either version of the module - please specify which type you prefer at the time of your order.

The Ethernet Interface module (IC693CMM321) provides an interface that allows you to attach the
Series 90-30 PLC to an Ethernet LAN via an external transceiver and AAUI cable, and to
communicate with hosts and other control devices on the network.

The Ethernet Interface for the Series 90-30 PLC has clientrver capability. As a client it can
initiate communications with other PLCs containing Ethernet Interfaces. This is done from the
ladder program using the COMMREQ Function Block. As a server it responds only to requests
from other devices such as a Host computer running a Host Communications Toolkit application oranother Series 90-30 PLC acting as a client.

QUICK DETAILS

  1. Brand :GE
  2. Model :IC693CMM321
  3. Place of Origin : USA


DESCRIPTION

  • Programmable Logic Controller
  • GE Fanuc

  • Ethernet Interface Module

The Ethernet Interface allows you to:
  • „ Directly attach your PLC to an Ethernet network
  • „ Initiate transfer of data to the PLC from another device
  • „ Communicate simultaneously to multiple devices with up to 16 server connections
  • „ Interface with other GE Fanuc devices, as well as with devices from other vendors
  • „ Communicate from a Host computer (or other control device)
  • „ Diagnose and maintain your system using diagnostic and station management tools

The Ethernet Interface does not support the Series 90-30/20/Micro Hand-Held Programmer. Eitherone or two Ethernet Interface modules can be installed in any Series 90-30 baseplate.


The Ethernet Interface connects to an Ethernet network through an external SQE enabled
transceiver (GE Fanuc catalog no. IC649AEA102 or IC649AEA103 or equivalent. See Appendix

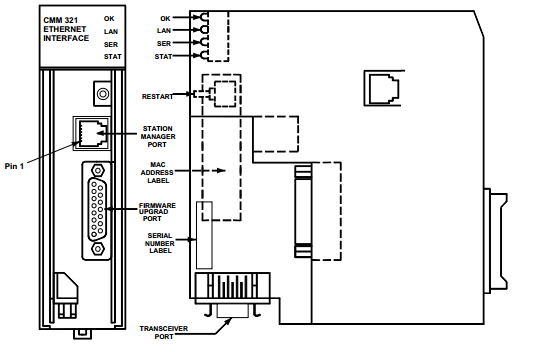

J). The following figure shows the layout of the Ethernet Interface.

Lightweight Ethernet Control Module , IC693CMM321ethernet Interface Module In Plc
