Nidec Control Techniques Battery Detector EBU01 15W Emerson MONITORING UNIT NEW in stock
Nidec Control Techniques Battery Detector EBU01 15W Emerson MONITORING UNIT NEW in stock
Nidec Control Techniques Battery Detector EBU01 15W Emerson MONITORING UNIT NEW in stock
Nidec Control Techniques Battery Detector EBU01 15W Emerson MONITORING UNIT NEW in stock
Specifications
Brand Name :
Emerson CONTROL TECHNIQUES
Model Number :
EBU01
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Contact us
Payment Terms :
T/T / Paypal
Supply Ability :
50
Delivery Time :
2-3 work days
Packaging Details :
New Original Box
Model :
EBU01
Type :
Battery Detector
Input voltage range :
80~320Vdc
Power consumption :
<15W
Relative humidity :
10%RH ~ 90%RH
Ambient temperature :
-10 ~ +50°C
Brand :
Control Techniques
Weight :
2 kg
Description

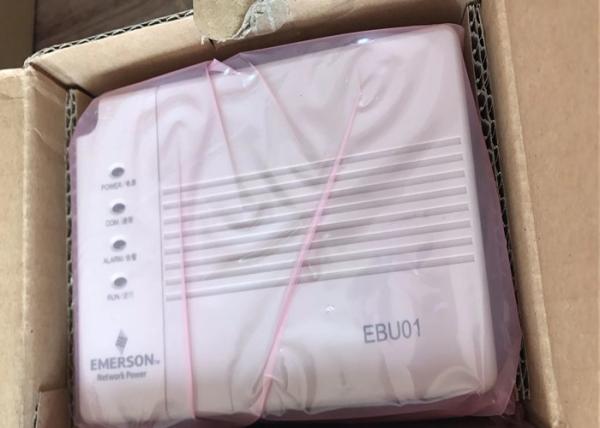

Nidec Control Techniques Battery Detector EBU01 15W Emerson MONITORING UNIT NEW in stock



Description

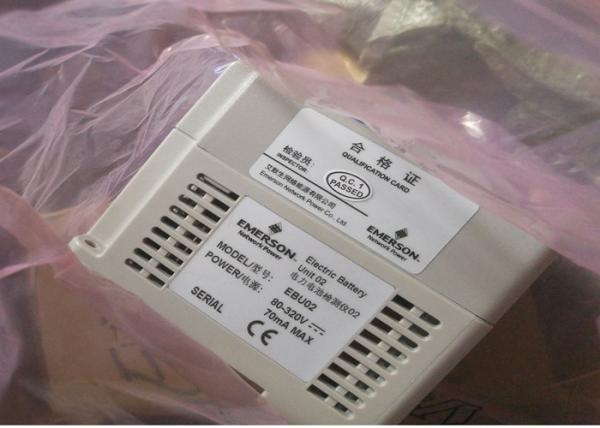

The Emerson battery detector is applicable to detecting batteries in power plants and transformer substation. It has two models: EBU01 and EBU02. The small size makes it suitable to be installed in a small space of electric cabinets.

Functions of EBU01 battery detector
1. EBU01 can detect temperature of two routes, current of one route, voltage of 24 battery cells. EBU02 can detect voltage of 19 battery cells.
2. The battery detector can adjust the measurement levels (2V, 6V, 12V) automatically according to the battery cell voltage, so as to improve the measurement accuracy.
3. Upon battery detector start, if the voltage of any detecting channel exceeds approximately 36V, the battery detector will shut down all the channels and stop the test. The alarm indicator will flash. The test will resume only when the power is cut off and the fault is cleared.
4. During the test process, if the voltage of any detection channel exceeds approximately 16.7V, the battery detector will shut down all the channels, stop the measurement and reset itself automatically. If the measurement voltage exceeds 16.7V after the reset, the preceding process will repeat. The alarm indicator will flash during the reset process. The battery detector will resume automatically after the overvoltage is removed.
Specification of EBU01 (EBU02 )battery detector
The specification of BD is shown in the following table.
DB specification
Parameter
Range
Error
Remark
Input voltage range
80 ~ 320Vdc
Power consumption
<15W
Ambient temperature
-10 ~ +50°C
Relative humidity
10%RH ~ 90%RH
Atmospere
70 ~ 106kPa
Dimensions
135mm%90mm%75mm
Weight
About 2kg
Communication baud rate
9600bps
Battery string voltage
80 ~ 320V
± 0.3%
The sum of all battery cells voltages
One route of battery current
-4 ~ 4V, Hall sensor measurement range -3000 ~ 3000A
± 0.5%
For EBU01
Two routes of battery temperature
-25 ~ 75℃
± 1℃
Voltage of battery cells 1 ~ 24
0.100 ~ 16.500V
± 0.2%
Voltage of battery cells 1 ~ 19
0.100 ~ 16.500V
± 0.2%
For EBU02
SP Drives
SP0401 SP0402 SP0403 SP0404 SP0405 SP1401 SP1402 SP1403
SP1404 SP1405 SP1406 SP2201 SP2202 SP2401 SP2402 SP2403
SP2404 SP3401 SP3402 SP3403 SP4401 SP4402 SP4403 SP5401
SP5402 SP5403 SP6401 SP6402 SP5402 ES2401 ES2402 ES2403
UNI Drives:
UNI1201 UNI1202 UNI1203 UNI1204 UNI1205 UNI2201 UNI2202 UNI2203
UNI3201 UNI3202 UNI3203 UNI3204 UNI1401 UNI1402 UNI1403 UNI1404
UNI1405 UNI2401 UNI2402 UNI2403 UNI3401 UNI3402 UNI3403 UNI3404
UNI3405 UNI4401 UNI4402 UNI4403 UNI4404 UNI4405 UNI5401 SP5402

Analog Input Cards and Termination Blocks
Description Model Number
8 Channels 4-20 mA, HART Standard I/O Termination Block VE4003S2B1
Redundant Standard I/O Termination Block
 VE4033S2B1
Fused I/O Termination Block VE4003S2B2
4-wire I/O Termination Block VE4003S2B3
16-Pin Mass Termination Block VE4003S2B4
24-Pin Mass Termination Block VE4003S2B5
16 Channels 4-20 mA, HART Standard I/O Termination Block VE4003S2B6
4-wire I/O Termination Block 16 Channels 4-20 ma, HART, Plus Card VE4003S2B7
16-Channel 2-Wire AI Terminal Block for Series 2 Plus VE4003S2B9
16-Channel 4-Wire AI Terminal Block for Series 2 Plus VE4003S2B10
Redundant 16-Channel 2- & 4-Wire AI Terminal Block for Series 2 Plus VE4033S2B10
8 Channels Thermocouple,mV Standard I/O Termination Block VE4003S4B1
Cold Junction Compensated (CJC) Termination Block VE4003S5B1

Analog Input Card: 8 Channels RTD
Resistant Temperature Device (RTD) Termination Block

 VE4003S6B1
Isolated Input Card
Isolated Input Terminal Block
 VE4003S7B1
Standard I/O Termination Block VE4005S2B1
Redundant Standard I/O Termination Block VE4035S2B1
Fused I/O Termination Block VE4005S2B2
16-Pin Mass Termination Block VE4005S2B3
16-Channel AO Terminal Block for Series 2 Plus VE4005S2B4
Redundant 16-Channel AO Terminal Block for Series 2 Plus VE4035S2B4

Standard I/O Termination Block

 VE4001S2T1B1
Fused I/O Termination Block VE4001S2T1B2
Standard I/O Termination Block VE4001S2T2B1
Redundant Standard I/O Termination Block VE4031S2T2B1
Fused I/O Termination Block
VE4001S2T2B2
16-Pin Mass Termination Block VE4001S2T1B3
16-Pin Mass Termination Block VE4001S2T2B3
Standard Termination Block VE4001S2T2B4
40-pin Mass Termination Block
 VE4001S2T2B5
Redundant32-Channel DI Terminal Block for Series 2 Plus VE4031S2T2B6
40-pin DI Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)
 VE4001S2T2B7
40-pin DI Mass Termination Block for Series 2 Plus including 2 x 16-channel DI Plus Mass Connection Boards*
 VE4051S2T2B7
Redundant 40-pin DI Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)
 VE4031S2T2B7
Redundant 40-pin DI Mass Termination Block for Series 2 Plus including 2 x 16-channel DI Plus Mass Connection Boards *
 VE4081S2T2B7
Standard I/O Termination Block VE4001S3T1B1
Fused I/O Termination Block VE4001S3T1B2
Standard I/O Termination Block VE4001S3T2B1
Fused I/O Termination Block VE4001S3T2B2
Discrete 32 Channel Terminal Block VE4015
Discrete 32-Channel Terminal Block
 VE4001S5T2B4
40-pin Mass Terminal Block VE4001S5T2B5
Standard I/O Termination Block VE4002S1T1B1
Fused I/O Termination Block VE4002S1T1B2
16-Pin Mass Termination Block VE4002S1T1B3
Standard I/O Termination Block
VE4002S1T2B1
Redundant Standard I/O Termination Block VE4032S1T2B1
Fused I/O Termination Block VE4002S1T2B2
16-Pin Mass Termination Block VE4002S1T2B3
10-Pin Mass Termination Block VE4002S1T2B4
Standard I/O Termination Block VE4002S1T2B5
40-Pin Mass Termination Block VE4002S1T2B6
40-pin DO Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)
 VE4002S1T2B8
40-pin DO Mass Termination Block for Series 2 Plus including 4 x 8-channel DO Mass Connection Boards *
 VE4052S1T2B8
Redundant 40-pin DO Mass Termination Block for Series 2 Plus (to be used with P+F HiD or HiC IS barriers and termination boards for DeltaV DCS)
 VE4032S1T2B8
Redundant 40-pin DO Mass Termination Block for Series 2 Plus including 4 x 8-channel DO Mass Connection Boards *
 VE4082S1T2B8
Standard I/O Termination Block VE4002S2T1B1
Fused I/O Termination Block VE4002S2T1B2
Standard I/O Termination Block
VE4002S2T2B1
Fused I/O Termination Block VE4002S2T2B2
250V 2A Fuse for Fused Terminal Block; Box of 20
KJ4010X1-BC1
