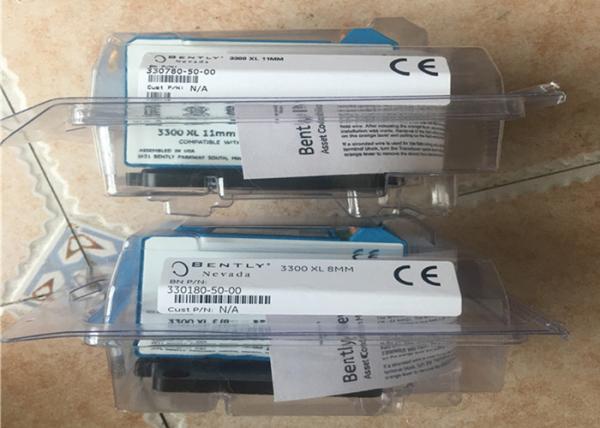

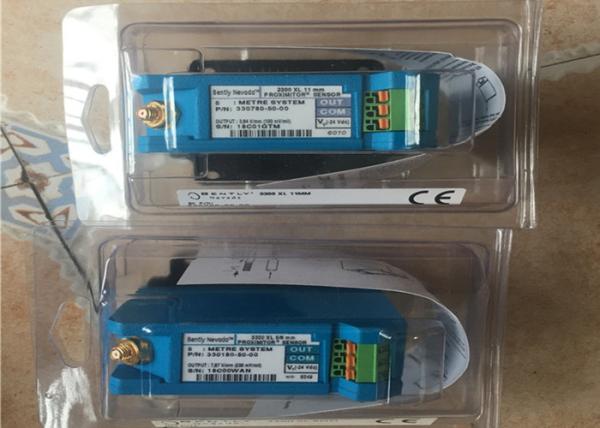

Bently Nevada 330780-50-00 3300 XL 11 mm Proximitor Sensor 5.0 Meter system length NEW

A SET :

BENTLY NEVADA 3300XL 11mm 330780-50-00 Proximitor-Sensor

BENTLY NEVADA 3300XL 11mm 330702-30-10-02-00

BENTLY NEVADA 3300XL 11mm 330730-040-01-00

Specifications

Unless otherwise noted, the following specifications are for a 3300 XL 8 mm Proximitor Sensor, extension cable and 8 mm probe between +18 °C and +27 °C (+64 °F to +80 °F), with a -24 Vdc power supply, a 10 kilo Ω load, an AISI 4140 steel target, and a probe gapped at 1.27 mm (50 mils). Performance characteristics are applicable for systems that consist solely of 3300 XL 8 mm components. The system accuracy and interchangeability specifications do not apply when using a transducer system calibrated to any target other than a Bently Nevada AISI 4140 steel target.

Electrical

Description of Proximitor Sensor

The 3300 ProximitorSensor offers many improvements over previousBently Nevada eddy current transducers with better linearity and temperaturestability. It also uses an integral isolation plate as its base, eliminating theneed for separate isolator plates.

Proximity Probes and Extension Cable.

The 3300 XL 8 mm probe, 3300 5 mm probe, and 3300 XL extension cablealso reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and theprobe body. The probe’s cable is more securely attached as well,incorporating a patented CableLoc design that provides 330 N (75 lb) pullstrength for 8 mm probe where the probe cable attaches to the probe tip.

Probes (8 mm only) and Extension Cables can also be ordered with anoptional FluidLoc cable option. This option prevents oil and other liquidsfrom leaking out of the machine through the cable's interior.

Models of 330180 Series Proximitor Sensor

330180-50-00
330180-50-05
330180-51-00
330180-51-05
330180-52-00
330180-52-05
330180-90-00
330180-90-05
330180-91-00
330180-91-05
330180-92-00
330180-92-05

For a shorter delivery time, order commonly stocked probes. Currently, stocked probes consist of the following part numbers:

330101-00-08-05-02-00, 330101-00-08-05-02-05, 330101-00-08-10-02-00, 330101-00-08-10-02-05, 330101-00-12-10-02-00, 330101-00-12-10-02-05, 330101-00-16-10-02-00, 330101-00-16-10-02-05, 330101-00-20-05-02-00, 330101-00-20-10-02-00, 330101-00-20-10-02-05, 330101-00-30-10-02-00, 330101-00-30-10-02-05, 330101-00-40-05-02-00, 330101-00-40-10-02-00, 330101-00-40-10-02-05, 330101-00-60-10-02-00, 330101-00-60-10-02-05, 330102-00-20-10-02-00, 330103-00-02-10-02-05, 330103-00-03-10-02-05, 330103-00-04-10-02-00, 330103-00-04-50-02-00, 330103-00-05-10-02-00, 330103-00-06-10-02-00, 330104-00-06-10-02-00, 330104-01-05-50-02-00, 330105-02-12-05-02-00, 330105-02-12-05-02-05, 330105-02-12-10-02-00, 330105-02-12-10-02-05, 330106-05-30-05-02-00, 330106-05-30-05-02-05, 330106-05-30-10-02-00 and 330106-05-30-10-02-05.

• All the Bently Nevada Parts are new and original with package.
• Warranty time: 180 or 360 days.

Good Service in WTL:

> Please send your RFQ to get the latest price.

> Normally, we will ship the items in 1-2 weeks after receive the payment.

> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.

> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.
