ABB Resolver interface FEN-21 Interface Card 3ABD68805848 for Inverter Drive ACS850 NEW

Desciption

The FEN-21 is to be inserted into the option slot of the drive. See the drive hardware manual for more information. The module is held in place with plastic retaining clips and one screw. The screw also provides the earthing of the cable shields connected to the module and interconnects the GND signals of the module and the drive.

General


• Max. power consumption: 350 mA at 24 V (Max. combined power consumption of encoders, latches and cabling 5W)
• Degree of protection: IP20
• Ambient conditions: The applicable ambient conditions specified for the drive in its Hardware manual are in effect.

Connectors:


• 20-pin socket
• 2 x 7-pin detachable plugs, max 2.5 mm2wire, tightening torque 0.5 N·m (5 lbf·in)
• 9-pin D-Sub
• 6-pin detachable plug, max 1.5 mm2 wire, tightening torque 0.3 N·m (3 lbf·in)

HTL encoder input (X81 & X82)


• Supply voltages:
- +15 V DC ± 20% 200mA (max.)
- HTL encoders
- +24 V DC ± 20% 200mA (max.)
-HTL encoders- External power supply, if connected, has to be in the range of 10-24 V DC

• Channels A, B, and Z supported
- Signal frequencies up to 300kHz can be detected by the HTL encoder input
.- With long cables and/or single-ended encoders it may be difficult to convey high signal frequencies reliably.
- Signal levels: “0” < 3.5 V and “1” > 7.5 V• Supported encoder types:- Differential Push-Pull HTL encoders, supply voltage 10 - 24 V
- Single-ended Push-Pull HTL encoders, supply voltage 15 - 24 V
- Open collector HTL encoders, supply voltage 15 - 24 V- Open emitter HTL encoders, supply voltage 15 - 24 V

• Supported cable lengths:
- 300 m for differential push-pull HTL encoders
- 200 m for single-ended push-pull HTL encoders
- 100 m for open collector / open emitter HTL encoders

• Performance:
- Speed range: -32768...32767 rpm
- Speed resolution: 0.04 RPM (24 bits)
- Position resolution: 16 M / rev (24 bits)
- Position accuracy: 4x pulse count / rev

• Isolated together with digital inputs

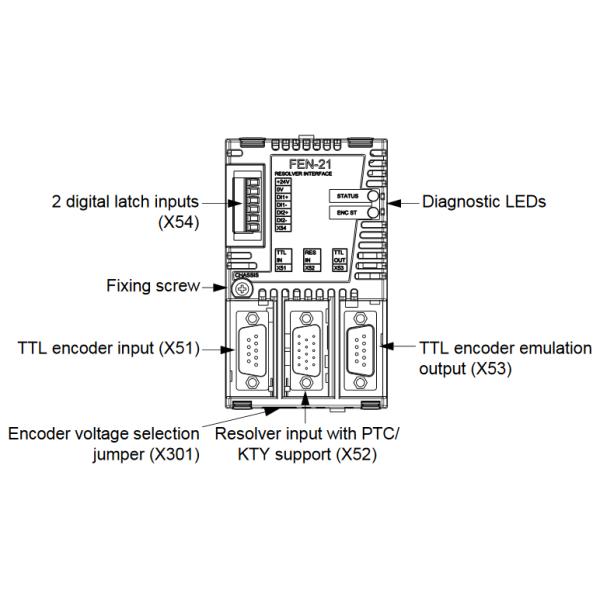

FEN-21 layout
