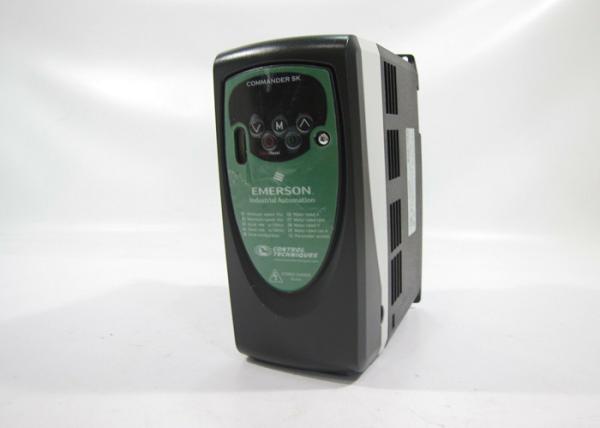

Emerson Control Techniques SK2203 AC Drives Commander SK Series INPUT 200-240 VAC 24.2 A
Emerson Control Techniques SK2203 AC Drives Commander SK Series INPUT 200-240 VAC 24.2 A
Emerson Control Techniques SK2203 AC Drives Commander SK Series INPUT 200-240 VAC 24.2 A
Emerson Control Techniques SK2203 AC Drives Commander SK Series INPUT 200-240 VAC 24.2 A
Specifications
Brand Name :
Emerson CONTROL TECHNIQUES
Model Number :
SK2203
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Contact us
Payment Terms :
T/T / Paypal
Supply Ability :
50
Delivery Time :
2-3 work days
Packaging Details :
New Original Box
Model :
SK2203
Type :
AC DRIVE
Voltage :
200-240 VAC
Normal Duty :
24.2 A
Weight :
6 kg
Brand :
Control Techniques
Description

Emerson Control Techniques SK2203 AC Drives Commander SK Series INPUT 200-240 VAC 24.2 A

Specifications:

EMERSON CONTROL TECHNIQUES COMMANDER DRIVE
MODEL NO: SK2203
INPUT: 200-240 VAC 24.2 A
OUTPUT: 0-240 VAC, 0-1500 HZ , 25.0/28.0 A

Setting up the SK2203 is simple thanks to the innovative CTSoft drive configuration tool, which is included free of charge with any new Commander SK. CTSoft is for the commissioning, optimising and monitoring of Control Techniques drives.

Commander SK 230/460/575/690 VAC Drives

TheCommander SKis a simple cost-effective drive that delivers more than a general purpose drive. Easy to use but upgradeable for more complex applications, the Commander SK is your solution for better productivity.Common applications include; extruders, pumps, conveyors, mixers, and multiple motor needs. Available from 120VAC (single phase) up to 690VAC (three phase) input voltages, and horse powers ranging from 1 to 200 there is a Commander SK for every industrial application. And for the perfect fit this drive is available in nine frame sizes. Customize your drive with plug-in options like SmartStick for "hot swapping" parameters or a LogicStick for PLC functionality from your drive. SM modules are another option to consider for additional I/O or communication needs like EtherNet and DeviceNet. A Human Machine Interface or (HMI) is also an option to expand programming power with a graphic color touch screen. Keypad upgrades for this drive include SK-Keypad remote (LED) or SM-Keypad Plus (LCD). External additions to your drive are dynamic braking resistors, EMC filters, faceplates, and conduit boxes. Accomplish your productivity goals at a lower cost with a Commander SK.

Commander SK Series Drive:

Item Description
SK2201 Commander SK, 230Vac, Max Cont Output Current (hp): Normal Duty - 15.5A (5hp), Heavy Duty - 12.6A (3hp)
SK2202 Commander SK, 230Vac, Max Cont Output Current (hp): Normal Duty - 22A (7.5hp), Heavy Duty - 17A (5hp)
SK2203 Commander SK, 230Vac, Max Cont Output Current (hp): Normal Duty - 28A (10hp), Heavy Duty - 25A (7.5hp)
SK2401 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 15.3A (10hp), Heavy Duty - 13A (7.5hp)
SK2402 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 21A (15hp), Heavy Duty - 16.5A (10hp)
SK2403 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 29A (20hp), Heavy Duty - 25A (20hp)
SK2404 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 29A (20hp), Heavy Duty - 29A (20hp)
SK3201 Commander SK, 230Vac, Max Cont Output Current (hp): Normal Duty - 42A (15hp), Heavy Duty - 31A (10hp)
SK3202 Commander SK, 230Vac, Max Cont Output Current (hp): Normal Duty - 54A (20hp), Heavy Duty - 42A (15hp)
SK3401 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 35A (25hp), Heavy Duty - 32A (25hp)
SK3402 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 43A (30hp), Heavy Duty - 40A (30hp)
SK3403 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 56A (40hp), Heavy Duty - 46A (30hp)
SK3501 Commander SK, 575Vac, Max Cont Output Current (hp): Normal Duty - 5.4A (5hp), Heavy Duty - 4.1A (3hp)
SK3502 Commander SK, 575Vac, Max Cont Output Current (hp): Normal Duty - 6.1A (5hp), Heavy Duty - 5.4A (5hp)
SK3503 Commander SK, 575Vac, Max Cont Output Current (hp): Normal Duty - 8.4A (7.5hp), Heavy Duty - 6.1A (5hp)
SK3504 Commander SK, 575Vac, Max Cont Output Current (hp): Normal Duty - 11A (10hp), Heavy Duty - 9.5A (7.5hp)
SK3505 Commander SK, 575Vac, Max Cont Output Current (hp): Normal Duty - 16A (15hp), Heavy Duty - 12A (10hp)
SK3506 Commander SK, 575Vac, Max Cont Output Current (hp): Normal Duty - 22A (20hp), Heavy Duty - 18A (15hp)
SK3507 Commander SK, 575Vac, Max Cont Output Current (hp): Normal Duty - 27A (25hp), Heavy Duty - 22A (20hp)
SK4201 Commander SK, 230Vac, Max Cont Output Current (hp): Normal Duty - 68A (25hp), Heavy Duty - 56A (20hp)
SK4202 Commander SK, 230Vac, Max Cont Output Current (hp): Normal Duty - 80A (30hp), Heavy Duty - 68A (25hp)
SK4203 Commander SK, 230Vac, Max Cont Output Current (hp): Normal Duty - 104A (40hp), Heavy Duty - 80A (30hp)
SK4401 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 68A (50hp), Heavy Duty - 60A (50hp)
SK4402 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 83A (60hp), Heavy Duty - 74A (60hp)
SK4403 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty -104A (75hp), Heavy Duty -96A (75hp)
SK4601 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 22A (20/25hp), Heavy Duty - 18A (15/20hp)
SK4602 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 27A (25/30hp), Heavy Duty - 22A (20/25hp)
SK4603 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 36A (30/40hp), Heavy Duty - 27A (25/30hp)
SK4604 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 43A (40/50hp), Heavy Duty - 36A (30/40hp)
SK4605 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 52A (50/60hp), Heavy Duty - 43A (40/50hp)
SK4606 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 62A (60/74hp), Heavy Duty - 52A (50/60hp)
SK5401 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty -138A (100hp), Heavy Duty -124A (100hp)
SK5402 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty -168A (150hp), Heavy Duty -156A (125hp)
SK5601 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 84A (75/100hp), Heavy Duty - 62A (60/75hp)
SK5602 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 99A (100/125hp), Heavy Duty - 84A (100hp)
SK6401 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 205A (150hp), Heavy Duty - 180A (150hp)
SK6402 Commander SK, 460Vac, Max Cont Output Current (hp): Normal Duty - 236A (200hp), Heavy Duty - 210A (150hp)
SK6601 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 125A (125/150hp), Heavy Duty - 100A (100/125hp)
SK6602 Commander SK, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 144A (150/175hp), Heavy Duty - 125A (125/150hp)
SKA1100025 Commander SK (Size A), 0.33hp, 115Vac, 1 Input - 3 Output, 1.7A Cont. Output Current, 2.6A-60Sec, IP20
SKA1100037 Commander SK (Size A), 0.50hp, 115Vac, 1 Input - 3 Output, 2.2A Cont. Output Current, 3.3A-60Sec, IP20
SKA1200025 Commander SK (Size A), 0.33hp, 230Vac, 1 Input - 3 Output, 1.7A Cont. Output Current, 2.6A-60Sec, IP20
SKA1200037 Commander SK (Size A), 0.50hp, 230Vac, 1 Input - 3 Output, 2.2A Cont. Output Current, 3.3A-60Sec, IP20
SKA1200055 Commander SK (Size A), 0.75hp, 230Vac, 1 Input - 3 Output, 3.0A Cont. Output Current, 4.5A-60Sec, IP20
SKA1200075 Commander SK (Size A), 1hp, 230Vac, 1 Input - 3 Output, 4.0A Cont. Output Current, 6.0A-60Sec, IP20
SKB1100075 Commander SK (Size B), 1hp, 115V - 1 , 4A Cont. Output Current
SKB1100110 Commander SK (Size B), 1.5hp, 115V - 1 , 5.2A Cont. Output Current
SKB3400037 Commander SK (Size B), 0.5hp, 460V - 3 , 1.3A Cont. Output Current, 2.0A-60Sec, IP20
SKB3400055 Commander SK (Size B), 0.75hp, 460V - 3 , 1.7A Cont. Output Current, 2.6A-60Sec, IP20
SKB3400075 Commander SK (Size B), 1hp, 460V - 3 , 2.1A Cont. Output Current, 3.2A-60Sec, IP20
SKB3400110 Commander SK (Size B), 1.5hp, 460V - 3 , 2.8A Cont. Output Current, 4.2A-60Sec, IP20
SKB3400150 Commander SK (Size B), 2hp, 460V - 3 , 3.8A Cont. Output Current, 5.7A-60Sec, IP20
SKBD200110 Commander SK (Size B), 1.5hp, 230Vac, 1 or 3 Input - 3 Output, 5.2A Cont. Output Current, 7.8A-60Sec, IP20
SKBD200150 Commander SK (Size B), 2hp, 230Vac, 1 or 3 Input - 3 Output, 7.0A Cont. Output Current, 10.5A-60Sec, IP20
SKC3400220 Commander SK (Size C), 3hp, 460V - 3 , 5.1A Cont. Output Current, 7.7A-60Sec, IP20
SKC3400300 Commander SK (Size C), 4hp, 460V - 3 , 7.2A Cont. Output Current, 10.8A-60Sec, IP20
SKC3400400 Commander SK (Size C), 5hp, 460V - 3 , 9A Cont. Output Current, 13.5A-60Sec, IP20
SKCD200220 Commander SK (Size C), 3hp, 230Vac, 1 or 3 Input - 3 Output, 9.6A Cont. Output Current, 14.4A-60Sec, IP20
SKD3200400 Commander SK (Size D), 5hp, 230Vac - 3 , 17A Cont. Output Current, 25.5A-60Sec, IP20
SKD3400550 Commander SK (Size D), 7.5hp, 460V - 3 , 13A Cont. Output Current, 19.5A-60Sec, IP20
SKD3400750 Commander SK (Size D), 10hp, 460V - 3 , 16.5A Cont. Output Current, 24.75A-60Sec, IP20
SKDD200300 Commander SK (Size D), 3hp, 230Vac, 1 or 3 Input - 3 Output, 12.6A Cont. Output Current, 18.9A-60Sec, IP20
Commander SK AC Inverter
SKA1100025 SKA1100037 SKB1100075 SKB1100110 SKA1200025 SKA1200037 SKA1200055
SKBD200110 SKBD200150 SKCD200220 SKDD200300 SKD3200400 SKB3400037 SKB3400055
SKB3400110 SKB3400150 SKB3400220 SKB3400300 SKB3400400 SKB3400550 SKB3400750
SKA1200075 SKB3400075 SK3201 SK3202 SK4201 SK4202 SK4203
SK2402 SK2403 SK2404 SK3401 SK3402 SK3403 SK4401
SK4403 SK5401 SK5402 SK6401 SK6402 SK3501 SK3502
SK3504 SK3505 SK3506 SK3507 SK4601 SK4602 SK4603
SK4605 SK4606 SK5601 SK5602 SK6601 SK6602 SK6602
SK2401 SK4402 SK2201 SK2202 SK2203 SK3503 SK4604
SP Drives
SP1201 SP1202 SP1203 SP1204 SP2201 SP2202 SP2203 SP3201
SP3202 SP4201 SP4202 SP4203 SP5201 SP5202 SP3501 SP3502
SP0401 SP0402 SP0403 SP0404 SP0405 SP1401 SP1402 SP1403
SP1404 SP1405 SP1406 SP2201 SP2202 SP2401 SP2402 SP2403
SP2404 SP3401 SP3402 SP3403 SP4401 SP4402 SP4403 SP5401
SP5402 SP5403 SP6401 SP6402 SP3505 ES2401 ES2402 ES2403
SP3503 SP3504 SP3506 SP4601 SP4602 SP4603 SP4604 SP4605
SP4606 SP5601 SP5602 SP6601 SP6602
UNI Drives:
UNI1201 UNI1202 UNI1203 UNI1204 UNI1205 UNI2201 UNI2202 UNI2203
UNI3201 UNI3202 UNI3203 UNI3204 UNI1401 UNI1402 UNI1403 UNI1404
UNI1405 UNI2401 UNI2402 UNI2403 UNI3401 UNI3402 UNI3403 UNI3404
UNI3405 UNI4401 UNI4402 UNI4403 UNI4404 UNI4405 UNI5401 SP5402
