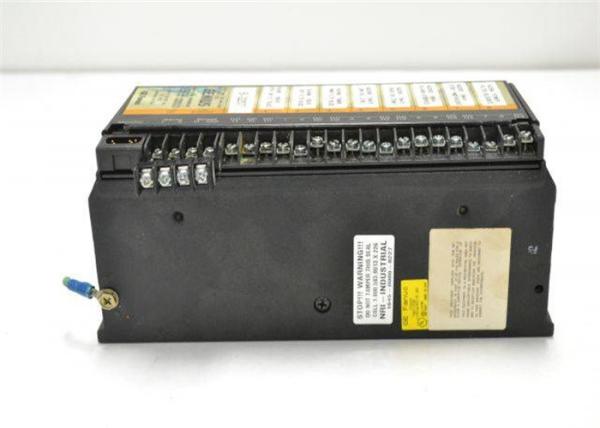

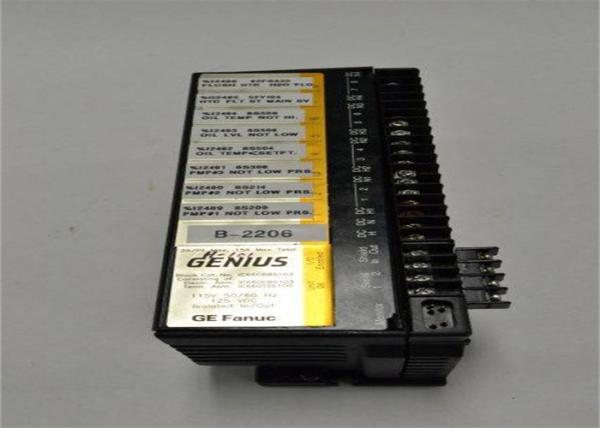

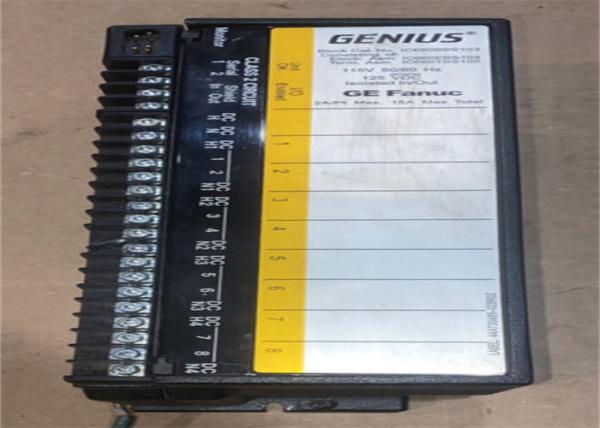

GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O
Specifications
Brand Name :
GE
Model Number :
IC660BBS103
Certification :
CE
Place of Origin :
USA
MOQ :
1
Price :
contact us
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
3-5 working day
Packaging Details :
New Original Box
Country of Origin :
USA
Deliver time :
3-5 working day
warranty :
one year
Brand :
GE
Quality :
Seal Original Package
Shipping term :
DHL / FEDEX /UPS/TNT
MOQ :
1 piece
Payment term :
T/T, Western Union,paypal
Rated Voltage :
115 VAC / 125 VDC
Description

Description Of GE IC660BBS103 GENERAL ELECTRIC GENIUS BLOCK ASSEMBLY LOW LEAK ISOLATED I/O

Product Details:

  • IC660BBS103
  • DISCONTINUED BY MANUFACTURER
  • I/O MODULE
  • GENIUS BLOCK
  • 8 CIRCUIT
  • 115 VAC / 125 VDC POWER
  • FOR 2 OR 3 WIRE SWITCH INPUTS
  • WITHOUT FAIL SWITCH DIAGNOSTICS
  • FACTORY WARRANTY MAY NOT APPLY. RADWELL 2-YEAR WARRANTY INCLUDED

Related Product Recommendation:

GE VCIB-16A GE DS200CDBAG1ACA
GE VMIVME-7671-421000 GE DS200DCFBG2BNC
GE 269PLUS-100P-120 GE DS200FCRRG1AKD
GE 369-HI-0-0-0-0 GE DS200LDCCH1ARA
GE 369-HI-R-0-0-0 GE DS200LRPAG1AGF
GE 531X111PSHAPG3 GE DS200PCCAG5ACB
GE 531X113PSFARG1 GE DS200PCCAG9ACB
GE 531X123PCHACG1 GE IC693DSM302
GE 531X139APMARM7 GE IC693MDL330
GE 531X303MCPBCG1 GE IC693MDL646
GE 531X305NTBACG1 GE IC693MDL655
GE 531X305NTBAPG1 GE IC693MDL730
GE IC200ALG322 GE IC693MDL752
GE IC200ALG620 GE IC693PBS105
GE IC200ALG630 GE IC693PCM301
GE IC200CHS002 GE IC200MDL742
GE IC200MDL740 GE IC200CPUE05
GE IC3600LTGA GE IC200PWR101
GE IC3600TUAA1 GE IC200PWR001
GE IC660BBD025 GE IC693PWR330
GE IC670MDL640 GE IC694APU300
GE IC670PBI001 GE IC694BEM331
GE IC693ACC310 GE IC694MDL645
GE IC693ALG223 GE IC694MDL655
GE IC693ALG390 GE IC694MDL740

The IC660BBS103 is an eight circuit I/O isolated block by GE Fanuc. The block has a rated voltage of 115 VAC or 125 VDC with an input voltage range of between 93 VAC and 132 VAC. Output voltage range varies from 105 to 132 VDC with a load current of two Amps for every output point.

The IC660BBS103 block’s isolation can withstand a voltage of 250 VAC or VDC between two groups or between a group and a ground. It has a transient rating of 2000V for every 10 seconds. The block can be powered differently from the circuits with power being either AC or DC. The block’s control power can be tapped from the voltages of input/output devices which are wired to the terminals. There is electronic fusing for every circuit used for output. The circuit shuts down immediately after five microseconds in the event of a short circuit. The circuit can thereafter be restarted using a handheld monitor or a CPU. Some of the diagnostic checks include detection of sudden shutdowns, voltage overload, overheating, and detection of power loss to the circuits.

During block mounting, it is advisable to mount the block in a protective enclosure, clean and free from contaminants. It can be mounted facing up or down. It is important to leave two inches of space between blocks for ample ventilation. During field wiring, all terminals will accept 1 AWG #12 wire or 2 AWG #14 wires. The minimum wire size recommended is AWG #22. Ring terminals of up to 0.27 inches can be accommodated by the block. The recommended torque for the terminal screws is 0.678 N/M. Operating temperature for IC660BBS103 ranges from 0-60o C with storage temperature being -40o C to 80o C.
