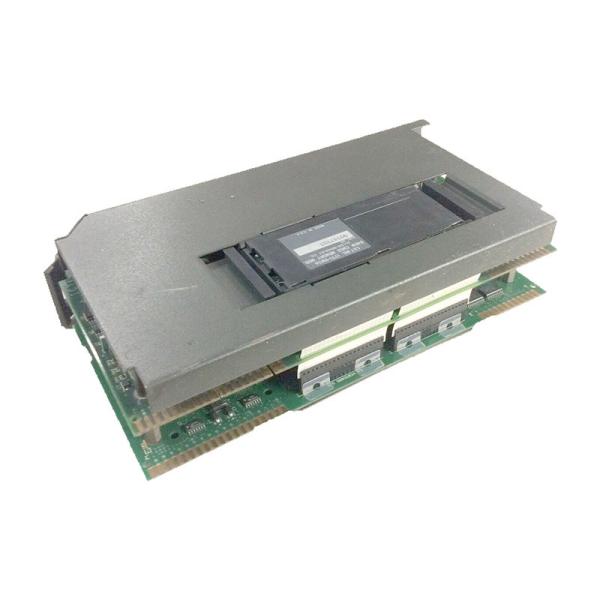

120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
120 Volts Servo Controller Module PLC 5 Allen Bradley 1771-HS3A DC Analog
Specifications
Brand Name :
AB
Model Number :
1771-HS3A
Place of Origin :
USA
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
5-8 work days
Packaging Details :
New in original box
Brand :
AB
Model :
1771-HS3A
Module Type :
Servo Controller Module
Servo Controller Module :
120 Volts
Max Input Frequency :
250 Kilohertz Differential Input
Outputs :
+/- 10 Volt DC Analog Command
Description

AB 1771-HS3A Servo Controller Module From The PLC 5 Product Line

Technical Specifications for 1771-HS3A

Brand AB
Part Number/Catalog No. 1771-HS3A
Module Type Servo Controller Module
Fuse Voltage 120 Volts
Max Input Frequency 250 Kilohertz Differential Input
Outputs +/- 10 Volt DC Analog Command
Slots 2 Slots Per ES
Module Update Period 2 ms/axis
Backplane Current 1.7 Amperes
Wiring Arm 1771-WB
Wiring Arm 1771-WA

About 1771-HS3A

The 1771-HS3A IMC 120 Servo Controller Module by AB is a 3-axis servo controller module specially designed for use with
the 1771 I/O chassis series and it consists of a memory module, a power module, an encoder module, a resolver, and an optional Hand-Held
pendant. The module has similar specifications to most IMC 120 servo controllers with an additional 3-axis capability.

The 1771-HS3A uses a power supply module (1771-PS7) which supplies 120-240V AC at 1A and 2A, using the 9-pin connected cable
(1771-CAS) connected the controller’s power connector and it uses the 1771-HMA 96 KB battery-backed memory cartridges which store the
servo controller’s AMP parameters and MML downloaded programs.

The 1771-HS3A uses the RS-232 connector to connect to the connector of the T45 and T50 ODS and by using an optional Hand-Held pendant
through the ODS users can modify the system’s variable and parameter values.

It comes with LED light indicators which indicate the 1771-HS3A’s various status. The 1771-HS3A uses a resolver feedback and with a resolver
excitation module, it can produce Sine and Cosine signals which excite and activate the stator of the resolver.

It uses an encoder feedback which provides 10V DC isolated outputs, and a 250 KHz and 20 KHz differential and single-ended inputs. Its
operational temperature ranges between 0 and 600C at an ambient relative humidity range of 5-95% without condensation and it is c-UL,
C-TICK, and CE-certified.
