Electrical Fiber Optic Rotary Joint Slip Ring 1550nm With Low Temperature
Electrical Fiber Optic Rotary Joint Slip Ring 1550nm With Low Temperature
Electrical Fiber Optic Rotary Joint Slip Ring 1550nm With Low Temperature
Electrical Fiber Optic Rotary Joint Slip Ring 1550nm With Low Temperature
Electrical Fiber Optic Rotary Joint Slip Ring 1550nm With Low Temperature
Electrical Fiber Optic Rotary Joint Slip Ring 1550nm With Low Temperature
Specifications
Brand Name :
CENO
Model Number :
ECN000-13P-24S-01F-LC
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 weeks
Packaging Details :
Cartons/As request
Fiber type :
Single mode(9/125um)
Wave length :
1310-1550nm
Insert loss :
<2.0dB
Insert loss change :
<0.5dB
Return loss :
>45dB
Optical power :
23dB
Cable length :
Stator:800±10mm; Rotor:1500±10mm
Connector :
LC/LC
FORJ External Dimension :
3mm
Housing material :
Aluminum Alloy
Current & Circuits :
7circuits*20A; 4circuits*2A; 2circuits*7A; 24circuits*1A
Rating Voltage :
≥500VAC@50Hz
Isolation resistance :
≥200MΩ@500VDC
Electrical Noise :
10mΩ (50rpm)
Torque :
≤0.25N*m (-40°C)
Contact material :
Gold to Gold
Working temperature :
-40°C~+80°C; -55°C~+70°C
Working humidity :
60 %RH
IP protection grade :
IP54
Operating speed :
0~100rpm
Lead wire length :
Rotor : 1500mm Stator : 800mm
External diameter :
Ø62mm
Installation :
Rotor fixed by screws; Stator fixed by flanges
Description

Fiber optic rotary joint design electrical slip ring with low temperature application

ECN000-13P-24S-01F-LC is an integrated slip ring which combine electrical power, data signals and 1 channel Fiber Optic Rotary Joint. And it can be working stably at the low temperature environment with -55°C to +80°C. Fiber Optic Rotary Joints are to optical signals like what electrical slip rings are to electrical signals, a means to pass signals across rotating interface, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. More information about how CENO integrated slip ring can fit your specific usage please contact us.

Features

  • Integrate kinds of electrical signals, data and FORJ
  • Connectorized interface, for easy fiber cable replacement
  • Most parameters are optional

Applications

  • Medical System
  • Remote control system
  • Video surveillance system
  • National security systems
  • Robotics

Optional

  • Circuit, Voltage, Current
  • Fibber channels and types
  • Contact / Housing Materials
  • Wave length and interface type
  • Working speed

Specification

ECN000-13P-24S-01F-LC

 Specification
Current & Circuits

7circuits*20A; 4circuits*2A; 2circuits*7A; 24circuits*1A

Rating Voltage

 0~380VAC/VDC
Dielectric strength

≥500VAC@50Hz
Isolation resistance ≥200MΩ@500VDC
Electrical Noise 10mΩ (50rpm)
Torque ≤0.25N*m (-40°C)
Contact material Gold to Gold
Housing material Aluminum Alloy
Working temperature -40°C~+80°C; -55°C~+70°C
Working humidity 60 %RH
IP protection grade IP54
Operating speed 0~100rpm
Lead wire length

AWG17# 22#26# Tin coated Teflon ® UL

Twisted wires or shielded wires
Lead wire length

Rotor : 1500mm

Stator : 800mm
External diameter Ø62mm
Installation Rotor fixed by screws; Stator fixed by flanges
Fiber
Fiber type Single mode(9/125um)
Wave length 1310-1550nm
Insert loss <2.0dB
Insert loss change <0.5dB
Return loss >45dB
Optical power 23dB
Cable length Stator:800±10mm; Rotor:1500±10mm
Connector LC/LC
FORJ External Dimension 3mm
Housing material Stainless steel

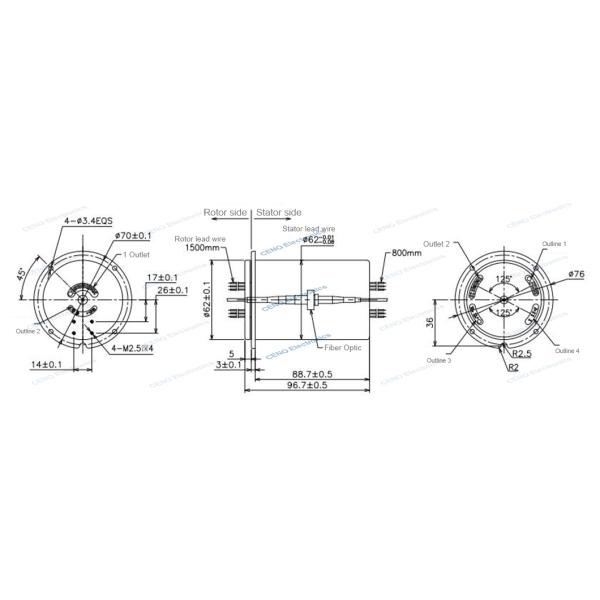

Outline drawing

Electrical Fiber Optic Rotary Joint Slip Ring 1550nm With Low Temperature

CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
