Diameter 190mm Low Temperature Slip Ring With Megabit Ethernet Signal
Diameter 190mm Low Temperature Slip Ring With Megabit Ethernet Signal
Specifications
Brand Name :
CENO
Model Number :
ECN000-22P-05S
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current & Circuits :
3circuits*13A, 5circuits*5A, 14circuits*14A, 5circuits*100M Ethernet (Signal), 1circuit * PE
Rating Voltage :
0~380VAC/24VDC
Dielectric strength :
≥1000VAC@50Hz,60s (Power) ≥300VAC@50Hz,60s (Signal)
Isolation resistance :
≥500MΩ@500VDC (Power) ≥100MΩ@100VDC (Signal)
Electrical noise :
≤30mΩ (50rpm)
Operating speed :
0~20rpm
Contact material :
Precious metal
Housing material :
Aluminum alloy
Working temperature :
-40°C~+40°C
Working humidity :
85%
IP protection grade :
IP55
External diameter :
Ø190mm
Lead wire size :
3*2.5mm² wire; 7*2.5mm² wire; 2*2*0.75mm² Twisted Shield wire; 1*25mm² wire
Lead wire length :
Rotor : 5000mm/12000mm Stator : 27000mm(with plug on cable)
Installation :
With 4 screw spindle fixed on the axis of rotation
Description

100M Megabit Ethernet Signal Slip Ring For Low Temperature Environments

ECN000-22P-05S is low temperature slip ring with Megabit Ethernet signal from CENO Electronics, there are 3 circuits for 13A, 5 circuits for 5A,14 circuits for 14A, 5 circuits for 100M Ethernet signal (Megabit & Gigabit Ethernet signal optional) and one wire PE. It’s working stably at speed of 0~20rpm in temperature of -40°C to +40°C, the external diameter is 190mm and can be customized as different application, due to it’s stable transmission, no packet loss, no loss and ultra-long distance transmission, it’s usually apply to the wire-drawing machine, communication system, turntable test equipment and automatic equipment.

Features

  • Can combined multiple signals and various currents
  • No electromagnetic interference between current & signal.
  • Install easily & transmit stably

Applications

  • Automatic machine
  • Communication systems
  • Measuring instrument
  • Turntable test equipment
  • Filling machinery

Optional

  • Circuit number & Current
  • Channels Ethernet type
  • Materials
  • Combine signals
  • Protection grade

Specification

ECN000-22P-05S

 Specification
Current & Circuits 3circuits*13A, 5circuits*5A, 14circuits*14A, 5circuits*100M Ethernet (Signal), 1circuit * PE
Rating Voltage 0~380VAC/24VDC
Dielectric strength

≥1000VAC@50Hz,60s (Power)

≥300VAC@50Hz,60s (Signal)
Isolation resistance

≥500MΩ@500VDC (Power)

≥100MΩ@100VDC (Signal)
Electrical noise ≤30mΩ (50rpm)
Operating speed 0~20rpm
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -40°C~+40°C
Working humidity 85%
IP protection grade IP55
External diameter Ø190mm
Lead wire size 3*2.5mm² wire; 7*2.5mm² wire; 2*2*0.75mm² Twisted Shield wire; 1*25mm² wire
Lead wire length

Rotor : 5000mm/12000mm

Stator : 27000mm(with plug on cable)
Installation With 4 screw spindle fixed on the axis of rotation

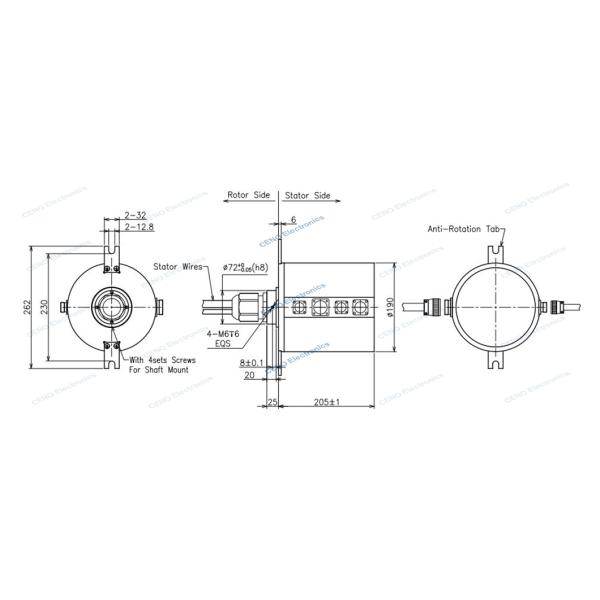

Outline drawing

Diameter 190mm Low Temperature Slip Ring With Megabit Ethernet Signal

Application

Diameter 190mm Low Temperature Slip Ring With Megabit Ethernet Signal

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Diameter 190mm Low Temperature Slip Ring With Megabit Ethernet Signal

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Diameter 190mm Low Temperature Slip Ring With Megabit Ethernet Signal

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
