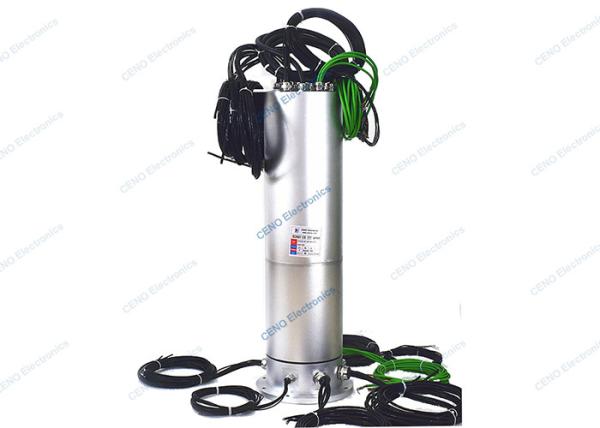

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment
IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment
Specifications
Brand Name :
CENO
Model Number :
ECN040-22P-58S-04EG-IP67
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current & circuits :
10circuits*70A, 1circuits*PE, 8circuits*40A, 4circuits*25A, 40circuits*2A, 3circuits*RS422, 4circuits*1000M Ethernet (BER Error rate:10E-12)
Rating Voltage :
0~400VAC/VDC
Dielectric strength :
≥1000VAC@50Hz ≥500VAC@50Hz
Isolation resistance :
≥500MΩ@1000VDC ≥100MΩ@100VDC
Electrical noise :
≤30mΩ (50rpm)
Operating speed :
0~50rpm
Contact material :
Precious metal
Housing material :
Aluminum alloy
Working temperature :
-30°C~+80°C
Working humidity :
90%
IP protection grade :
IP67
Through hole size :
Ø40mm
External diameter :
Ø220mm
Lead wire size :
16mm² wire AWG10#12# Tin coated Teflon®UL 40*0.3mm² wire 4 core Twisted Shield wire Cat5e net wire
Lead wire length :
Rotor : 3000mm Stator : 3000mm
Installation :
Flange installation
Description

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment

ECN040-22P-58S-04EG-IP67 is a high protection water proof Gigabit Ethernet Slip ring for industry application from CENO Electronics. It’s non-standard slip ring with 10circuits for 70A electric power, 8 circuits for 40A, 4circuits for 25A, 40circuits for 2A, 3circuits for RS422, 4circuits for 1000M Gigabit Ethernet and with IP67 high protection grade even to military standards IP68. Due to it’s high protection and combined large Ethernet signal with various electric power, most apply to the Boats and ship machinery, Port machine, Bear or milk equipment and Communication systems.

Features

  • Can combined multiple signals and various currents
  • No electromagnetic interference between current & signal.
  • High protection IP67

Applications

  • Automatic machine
  • Communication systems
  • Boats and ship machinery
  • Port machine

Optional

  • Circuit number & Current
  • Channels & Ethernet type
  • Materials
  • Protection grade

Specification

ECN040-22P-58S-04EG-IP67

 Specification
Current & Circuits

10circuits*70A, 1circuits*PE, 8circuits*40A, 4circuits*25A, 40circuits*2A, 3circuits*RS422, 4circuits*1000M Ethernet

(BER Error rate:10E-12)
Rating Voltage 0~400VAC/VDC
Dielectric strength

≥1000VAC@50Hz

≥500VAC@50Hz
Isolation resistance

≥500MΩ@1000VDC

≥100MΩ@100VDC
Electrical noise ≤30mΩ (50rpm)
Operating speed 0~50rpm
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -30°C~+80°C
Working humidity 90%
IP protection grade IP67
Through hole size Ø40mm
External diameter Ø220mm
Lead wire size

16mm² wire

AWG10#12# Tin coated Teflon®UL

40*0.3mm² wire

4 core Twisted Shield wire

Cat5e net wire
Lead wire length

Rotor : 3000mm

Stator : 3000mm
Installation Flange installation

Outline drawing

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Why with CENO

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

IP67 Waterproof Gigabit Ethernet Slip Ring For Industry Marine Equipment

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
