IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector
IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector
IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector
IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector
Specifications
Brand Name :
CENO
Model Number :
ECN035-12P
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Circuits & Current :
12circuits*6A
Rating Voltage :
0~380VAC/VDC
Dielectric strength :
≥1000VAC@50Hz
Isolation resistance :
≥500MΩ@500VDC
Contact resistance :
70mΩ (50rpm)
Contact material :
Precious metal
Housing material :
Aluminum Alloy
Working temperature :
-20°C~+60°C
Working humidity :
60%RH
IP protection grade :
IP54
Operating speed :
0~300rpm
Lead wire size :
AW22# Wire Teflon® UL
Lead wire length :
Rotor : 1000mm Stator : 300mm
Inner diameter :
Ø35mm
External diameter :
Ø99mm
Rotation way :
Fix rotor side on the main shaft with screws
Description

Hollow Shaft Slip Ring With Through Hole ID35mm Electrical Collector

ECN035-12P is CENO’s new designed Through Hole Slip Ring with ID35mm and 12circuits for electrical collector for industrial automatic system. As a basic slip ring Through hole slip ring often combine kinds data and other signals to a integrated slip ring, such as compatible with Pneumatic Hydraulic Rotary Union, RF Rotary union, FORJ or other signal as the Ethernet, profi-bus, Encoder and HDMI etc. Through hole slip ring is more economical and working stably comparing with other integrated slip ring, Usually apply to the harsh environment, for more information about How CENO’s slip ring can fit your applications, please contact us.

Features

  • Quiet mechanical system work
  • Can be integrated different data, signals & Pneumatic/Hydraulic
  • Stable performance, install easy

Applications

  • Automatic machinery
  • Electrical Crane
  • Electric Winch
  • Offshore Equipment

Optional

  • Circuits & Current
  • Contact / Housing Materials
  • IP Grade
  • Working speed


Specification

ECN035-12P

 Specification
Current & Circuits 12 circuits * 6A
Rating Voltage

0~380VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance 70mΩ (50rpm)
Contact material Precious metal
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP54
Operating speed 0~300rpm
Lead wire size AW22# Wire Teflon® UL

Lead wire length

Rotor : 1000mm

Stator : 300mm
Inner diameter Ø35mm
External diameter Ø99mm
Rotation way Fix rotor side on the main shaft with screws

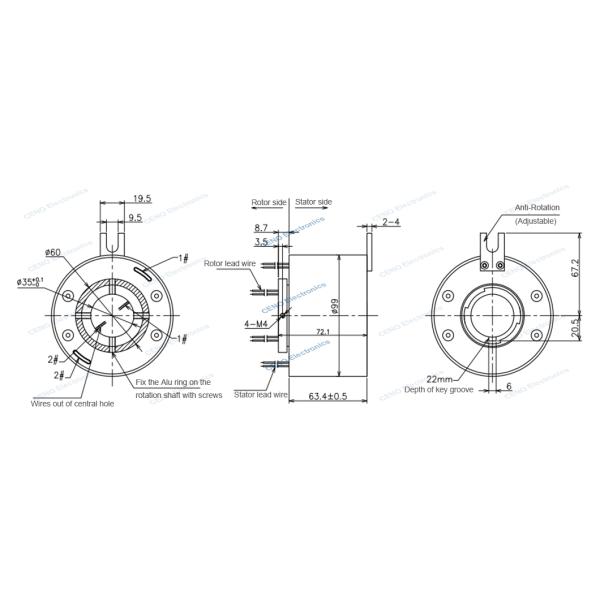

Outline Drawing

IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector

Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
