K Type Thermo Couple Signal Slip Rings With Through Hole ID140mm For Industry
K Type Thermo Couple Signal Slip Rings With Through Hole ID140mm For Industry
K Type Thermo Couple Signal Slip Rings With Through Hole ID140mm For Industry
K Type Thermo Couple Signal Slip Rings With Through Hole ID140mm For Industry
K Type Thermo Couple Signal Slip Rings With Through Hole ID140mm For Industry
K Type Thermo Couple Signal Slip Rings With Through Hole ID140mm For Industry
Specifications
Brand Name :
CENO
Model Number :
ECN140-20S-IP54
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
2 weeks
Packaging Details :
Crate/As request
Current & Circuits :
8*10A; 10*3A
Rating Voltage :
0~220 VAC/VDC
Dielectric strength :
≥1000VAC@50Hz
Isolation resistance :
≥500MΩ@500VDC
Electrical Noise :
30mΩ (50rpm)
Contact material :
Precious Metal
Housing material :
Stainless steel + Aluminum Alloy
Working temperature :
-20°C~+80°C
Working humidity :
60 %RH
IP protection grade :
IP54
Operating speed :
0~10rpm
Inner diameter :
Ø140mm
Lead wire size :
K type Thermo couple wire
Lead wire length :
Rotor : 300mm; Stator : 5000mm
Description

Product Description:

ECN140-20S-IP54 is a K type Thermo couple signal slip ring which is a customized slip ring too. In order to meet the requirement of equipment continuous rotating transmission of thermo couple signals, CENO design and develop a type of high precision slip ring to use and transmit thermo couple signals. Which have been successfully used in rotary furnace equipment, coating machine, heating shaft equipment, welding equipment and automatic turntables, etc. More information please contact us.

Features

  • Thermo couple slip ring design with through hole 3-1000mm
  • Stable and accurately transfer
  • Can be integrated various data, signal or electric power

Applications

  • Rotary furnace equipment
  • Automatic turntables
  • Packing equipment
  • Welding equipment
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Inner / Outer Diameter
  • Contact / Housing Materials
  • Protection grade
  • Working speed / temperature

Technical Parameters:

ECN140-20S-IP54

 Specification
Current & Circuits 10 Group *K type Thermo couple signal
Rating Voltage 0~220 VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Electrical Noise 30mΩ (50rpm)
Contact material Precious Metal
Housing material Stainless steel + Aluminum Alloy
Working temperature -20°C~+80°C
Working humidity 60 %RH
IP protection grade IP54
Operating speed 0~10rpm
Inner diameter Ø140mm
Lead wire size K type Thermo couple wire
Lead wire length Rotor : 300mm; Stator : 5000mm

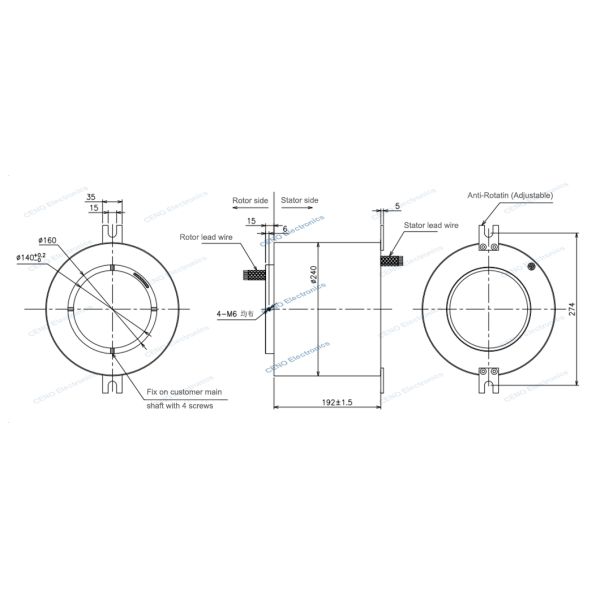

Outline drawing:
K Type Thermo Couple Signal Slip Rings With Through Hole ID140mm For Industry



Support and Services:

We provide technical support and service for our Industrial Slip Rings. Our team of experts is available to assist you with any technical questions or solutions you may have. We also offer a variety of services including installation and maintenance, troubleshooting, and custom solutions.
If you need assistance, please contact us through our website or call us directly. We will do our best to help you find the right solution for your application.
We strive to provide the best possible customer service and product support. If you have any questions or concerns, please don’t hesitate to contact us.

Packing and Shipping:

Industrial Slip Ring Packaging and Shipping:

  • The slip rings meet the requirements of the relevant international codes and standards.
  • Slip rings are packed in wooden cases or metal boxes.
  • Large packages are shipped by sea or air.
  • Small packages are shipped by express.
  • Each package is labeled with product name, model, size, quantity, origin, etc.
  • The packages are inspected to ensure that the products are delivered in good condition.

FAQ:

Q: What is the brand name of your Industrial Slip Ring?
A: Our Industrial Slip Ring is CENO brand.
Q: What is the model number of your Industrial Slip Ring?
A: The model number of our Industrial Slip Ring is ECN000-04P-08S.
Q: Where is your Industrial Slip Ring manufactured?
A: Our Industrial Slip Ring is manufactured in China.
Q: What is the minimum order quantity of your Industrial Slip Ring?
A: The minimum order quantity of our Industrial Slip Ring is 1pcs.
Q: What is the delivery time of your Industrial Slip Ring?
A: The delivery time of our Industrial Slip Ring is 2 weeks.
