Deutsch Connector IP65 15rpm Capsule Slip Ring
Deutsch Connector IP65 15rpm Capsule Slip Ring
Specifications
Brand Name :
CENO
Model Number :
ECN000-21P-05P2
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Contact Material :
Precious metal
Rating Voltage :
0~200VAC/DC
Working speed :
0~15rpm
Current :
21*3A,5*10A
IP protection grade :
IP65
Dielectric strength :
≥1000V@50Hz
Description

Capsule Slip Ring With Deutsch Connector

This solid shaft slip ring is designed for excavator application. there are Deutsch connector and AMP connector on rotor and stator side to simplify the connection. rotor side has a big flange for easy mounting,IP protection grad is IP 65,housing material is aluminum alloy.Compact structure and flexible installation,long service life.

Specification

ECN000-21P-05P2
Current 21*3A,5*10A
Voltage 0~200VAC/DC
Electrical noise ≤30mΩ (at 5rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-15 rpm
Contact material precious metals
Operating temperature -30~+80℃
Housing material Aluminum alloy
IP protection grade IP65

Features

  • Compact structure and flexible installation
  • Low temperature resistance, shockproof
  • Long service life

Applications

  • Excavator
  • Construction engineering
  • Engineering machinery


Optional

  • Circuit number
  • Current rating
  • Lead wire
  • Rotation way

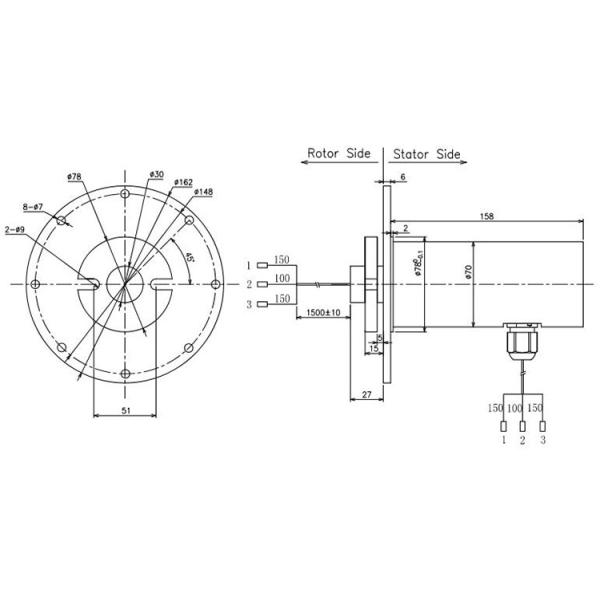

Outline Drawing

Deutsch Connector IP65 15rpm Capsule Slip Ring

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Deutsch Connector IP65 15rpm Capsule Slip Ring

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Deutsch Connector IP65 15rpm Capsule Slip Ring

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Deutsch Connector IP65 15rpm Capsule Slip Ring

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
