Specifications
Brand Name :
CENO
Model Number :
BHCN-C-04P-32S-04EG
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 weeks
Packaging Details :
Cartons/As request
Rating Voltage :
0-380VAC;0-220VAC/VDC
Operating speed :
0-50rpm
Maintainability :
Regular maintenance
Contact material :
Copper graphite (power) Precious metal (signal)
Housing material :
Stainless & Aluminium
IP degree :
IP54
Circuits :
4*150A,32*signal,4*GB Ethernet
Application :
Marine crane,Propulsion,Engineering machinery
Description

Stainless Steel Aluminium 380VAC High Amp Slip Ring

High Current Slip Ring 4*150A With Stainless Steel & Aluminium Housing,for Marine crane,Engineering machinery

CENO's carbon brush slip ring is also named as large current collector or high power slip ring, which could transmit the current at least on 100A or above. It widely be used in ship machinery, engineering machinery, port machinery, offshore crane, cable reel, propeller,as well as drilling platform.

Any requirement, please feel free to contact us ,and we will recommend the most suitable product to you.

Features

  • Integrate encoder ,fiber optical and RF rotary joint design is optional

  • Support analog signal and data signal mixed transmission

  • Long lifespan, easy maintenance

  • High protection, good weather resistance

  • Various signal type could be integrated

Applications

  • Platform crane ,vessel crane

  • Cable reel ,seaport machinery

  • Drilling platform

  • Marine crane

  • Propulsion

  • Material delivery equipment

  • Engineering machinery

Optional

  • Voltage

  • Current rating

  • Signal type

  • Circuit number

  • Protection grade

  • Cable length

Product details

BHCN-C-04P-32S-04EG

Circuits

4*150A,32*signal,4*GB Ethernet

Voltage

0-380VAC;0-220VAC/VDC

Electrical noise

≤10mΩ(50rpm power)

≤30mΩ(50rpm signal)

Dielectric strength

≥1500V@50Hz (power)

≥500V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥300MΩ@300VDC (signal)

Contact material

Copper graphite (power)

Precious metal (signal)

Operating speed

0~50rpm

Operating temperature

-20°C~+60°C

Housing material

Stainless & Aluminium

IP protection grade

IP54

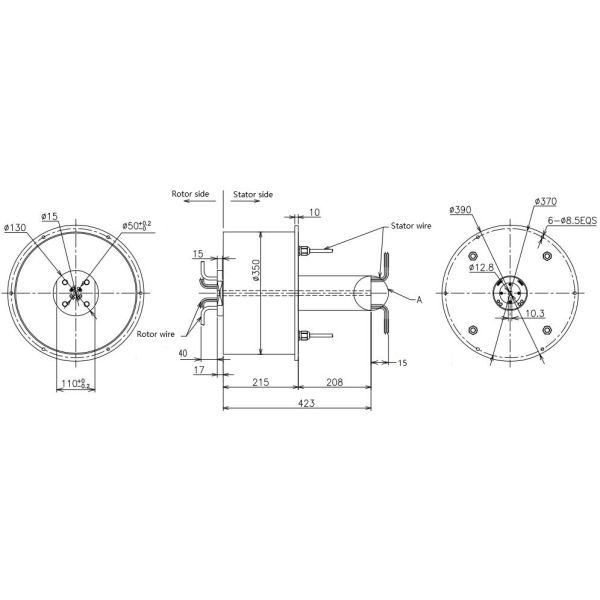

Outline drawing

Stainless Steel Aluminium 380VAC High Amp Slip Ring

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Stainless Steel Aluminium 380VAC High Amp Slip Ring

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Stainless Steel Aluminium 380VAC High Amp Slip Ring

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Stainless Steel Aluminium 380VAC High Amp Slip Ring

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
