Precious Metal 100M 500rpm Radio Frequency Rotary Joint Slip Ring

Radio Frequency Rotary Joint Slip Ring with 1 channel coaxial cable ,aluminium housing,used for satellite communication.

It’s a solid RF Coaxial rotary joint,also named high frequency rotary joint, wave guide rotary joint.

The channel coaxial rotary joint is conducive to reducing the size of the structure and processing,

and is conducive to stable rotation. It meets the microwave transmission in a wide frequency band

with excellent performance indicators, including the rotating section and the fixed end.RF rotary

joint with compact size, and stable rotating performance with RG 178 coaxial cable and aluminium

housing.Typical application including radar antennas,research & development, telecommunication

networks,military industry.

Radio frequency characteristics

Features

• Stable performance and high reliability
• Integrated RF rotary joint
• Apply to RF signal and high data speed rate transmission
• Easy maintenance
• Anti-interference ability
• Compact structure
• With SMA connector
• 1 channel coaxial cable

Applications

• Simulation tester
• Antenna system
• Traffic control system
• High definition network
• Satellite communication
• Military industry
• Radar antennas

Optional

• Circuits number
• Frequency range
• Interface type
• IP protection grade

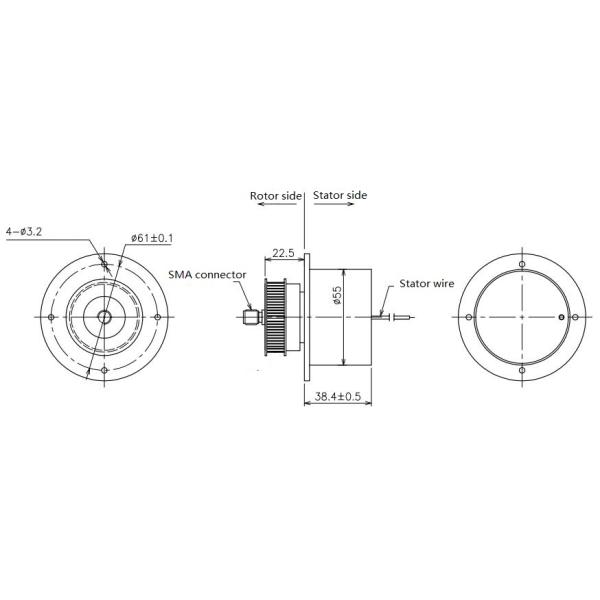

Outline Drawing

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
