500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine
500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine
500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine
500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine
Specifications
Brand Name :
CENO
Model Number :
SCN038-C-07P2
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current :
10Amp
Channel number :
7
Working speed :
5000rpm
Life :
500 million rotation min
Description

500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine

Lifespan is an important indicator for chosing slipring,as frequently replacement of slip rings not only waste time but also increase costs. CENO developed long life span slip ring with maintenance free and easy maintenance slip ring, according to the different application with different design concept to fully meet high-end market requirement. To avoid traditional conductive slip ring that wear is inevitable, as it adopts closed structure and internal contact type transmission.

Feature

Maintenance free or easy maintenance base on different application

Long lifespan, reliable contact

Outer size could be optional

Integrate current and various signal type

Typical application

Textile machinery
Testing machine

Braiding machine

Specification

Parameter
Circuit 7*10 A, Protection grade IP51
Voltage 415VAC Temperature -20°C~+60°C
Insulation Resistance ≥500MΩ@500VDC Rotating speed 0~5000rpm
Dielectric Strength ≥1500V@5hz,60S Contact Material Copper graphite
Inner Diameter Ø38mm Installation Way The Rotor installation on the spindle by screws
Working Life 500million rotations Lead Wire Size AWG17#Wire ® UL

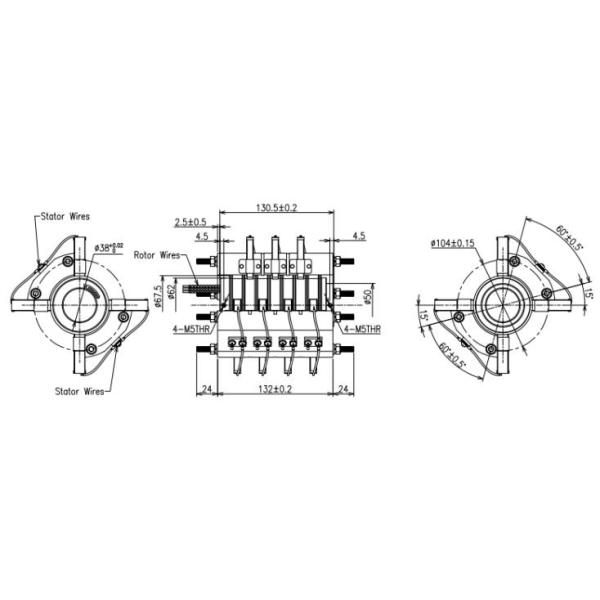

Outer drawing

500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine

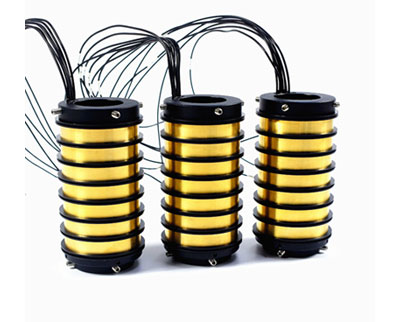

Product picture

500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine

Application shows

500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

500Million Rotation Longlife Slip Ring 5000RPM 38mm Through Hole 16 Circuits Braiding Machine

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
