Specifications
Brand Name :
CENO
Model Number :
ECN000-02P2-05P-33S
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Contact Material :
Precious metal
Housing Material :
Stainless steel
Working speed :
0~50rpm
Protection Grade :
IP65
Description

8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel

An electrical slip ring is a device used to transfer power and data from a stationary to a
rotating structure. Slip rings can provide continuous or intermittent rotation while
transmitting power and data -simplifying operation, improving application performance,
and eliminating risk of damage to wiring between movable parts.

Characteristic of product
◆ High Protection level
◆ Reliable Contact ,stable performance
◆ Compact size, low torque ,low contact resistance

Application
◆ Cable reel
◆ Multiple signal types can be integrated

Optional
◆ Circuit number
◆ Current rating
◆ IP protection
◆ Signal type

Specification

Model: ECN000-02P2-05P-33S Parameter
Housing Material Stainless steel Protection Grade IP65
Working Speed 0~50rpm Rating Voltage 380 VAC
Insulation Resistance

≥500MΩ@500VDC(power)

≥300MΩ@100VDC(signal)

 Dielectric Strength

≥1500V@50Hz(power)

≥500V@50Hz(signal)
Resistance fluctuation ≤70MΩ Contact Material Precious metal
Lead Wire Size AWG7#/12#/17#/22# tin-coated ®UL ,8 core shield wire Lead Wire Length Rotor:1500mm, Stator:1500mm

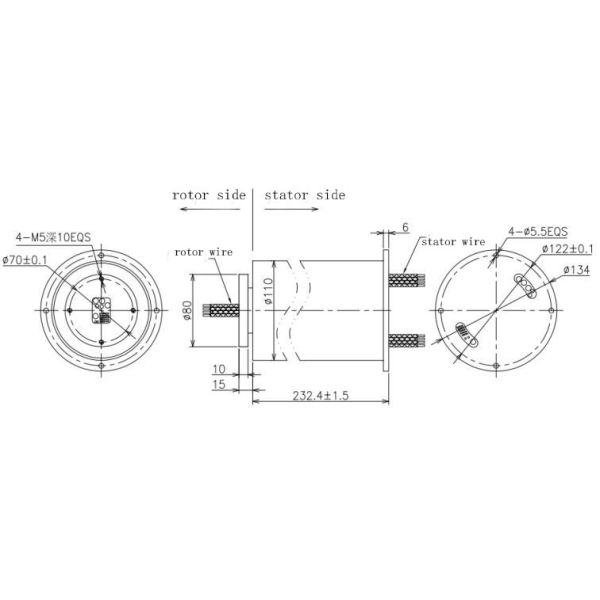

Product Outline Drawing

8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

8 Core Shield Wire High Protection Industrial Slip Ring For Cable Reel

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
