2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number
2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number
2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number
2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number
2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number
2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number
2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number
2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number
Specifications
Brand Name :
CENO
Model Number :
ACN-30S-01EG-01UB-01HD-01R
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Housing material :
Aluminum alloy
USB Signal channel :
1 channel USB2.0
Other signal :
HD-SDI,Ethernet,digital signal
Channel number :
34
Description


Capsule USB Slip Ring Transmitting USB2.0 USB3.0 Signal For Pipe Checking Camera

CENO USB slip ring is a rotary joint to transmit USB signal during 360 degrees rotating, It stably transmitting IEEE1394 and various USB signals, it can be applied to any device which needs to transmit conductive power and 1 or more channel USB signal during 360 degree rotating. USB slipring solve the problem of large capacity data signal transmission between system components rotating connection, and provides the best technical solutions.

Feature

Transmit USB1.0,USB2.0,USB3.0

Stable transmission,no package loss,no cross talk,low loss

Combine various signal and power

No interference between power and signal circuit,comply with EMC

Equip amplifying module ,like HUB to increase transmission distance

USB female and male connector are available

Typical application

Motion simulator

Automation equipment

Specification

Parameter
Circuit

30* 2A, 1*Gigabit signal

1*USB,1*HD-SDI

 Protection Grade IP54
Voltage 100VAC/VDC Temperature -20°C~+60°C
Insulation Resistance 100MΩ@300VDC Rotating speed 0~50rpm
Dielectric Strength ≥300 V@50hz Contact Material Gold to Gold
Electrical Noise ≤0.15N*m Housing material Aluminum alloy oxidation white
Humidity 60%RH Electrical noise ≤15mΩ

Outline drawing

2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number

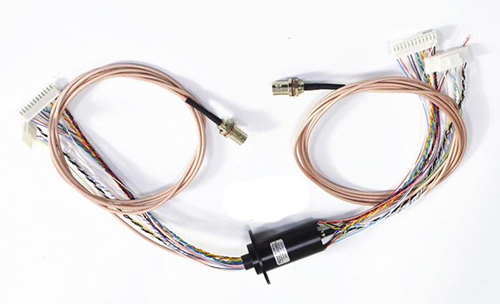

Product picture

2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number

Application

2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

2.0 USB Slip Ring , Pipe Checking Camera Slip Ring 34 Channel Number

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
