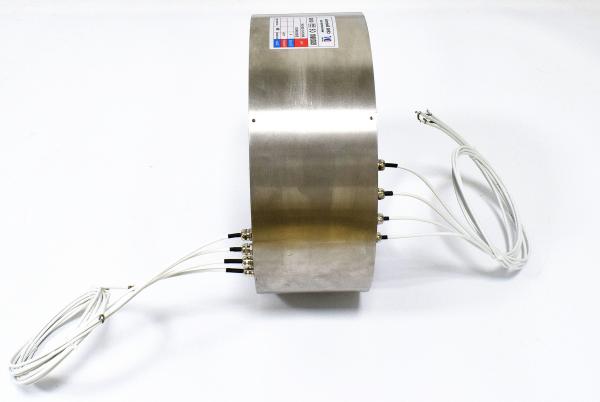

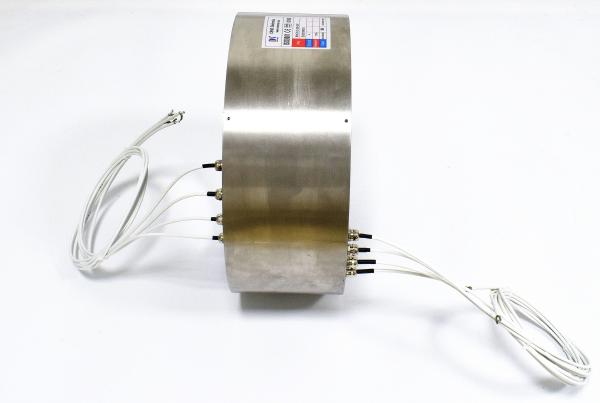

Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Specifications
Brand Name :
CENO
Model Number :
BHCN-C-260-04P
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 weeks
Packaging Details :
Cartons/As request
Through hole size :
260mm
Rating Voltage :
1000VAC
Operating speed :
0-10rpm
Maintainability :
Regular maintenance
Contact material :
Copper graphite
Insulation resistance :
10000MΩ @500VDC
Description

Copper Graphite Contact Material Carbon Brush Slip Ring With Stainless Steel Housing

CENO high current slip ring adopts carbon brush design which can pass high current power on each carbon brush.
Currently,the max current ampere up to 2000Amp,below 1000A, electronic brushes slip ring is recommended; more than 1000A, carbon brushes slip ring is recommended.We apply advanced technology on effective and guaranteed testing to ensure risk,because leaving the factory, each slip ring has a temperature rise test and a large current impact test.

Any requirement, please feel free to contact us ,and we will recommend the most suitable product to you.

Features

  • Integrate encoder ,fiber optical and RF rotary joint design is optional
  • Support analog signal and data signal mixed transmission

Applications

  • Platform crane ,vessel crane
  • Cable reel ,seaport machinery
  • Drilling platform

Optional

  • Voltage
  • IP protection grade
  • Current rating
  • Signal type

Specification

BHCN-C-260-04P Specification Picture
Current 4*7.5A Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing
Rating Voltage 1000VAC
Contact Material Copper graphite
Dielectric strength ≥2000V@50Hz
Working speed 0~10rpm
Insulation resistance 10000MΩ @500VDC
Resistance fluctuation ≦70mΩ
Maintainability Regular maintenance

Outline drawing

Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing

Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing

Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Carbon Brush Cable Reel Slip Ring 1000 VAC With Stainless Steel Housing

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
