Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Specifications
Brand Name :
CENO
Model Number :
BCN15-24
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
10000pcs month
Delivery Time :
Off the shelf
Packaging Details :
Carton
Circuit number :
24
Current :
2A/circuit
Voltage :
240 VAC/DC
OD :
Φ12.4×14 mm Φ12.4×19.5 mm
Protection grade :
IP54
Operating Humidity :
60%RH or higher
Operating Speed :
0-300 rpm
Housing Material :
Engineering Plastics
Description

Continuous Transmission Of Signal And Data Under 360° Unrestrained Rotation CENO Slip Ring


CENO develops and produces highly advanced slip rings. Our products are based on a modular design.
We use precious metals as contact material to ensure long work life time as well as less noise,smooth rotation.
Continuous transmission of signal and data under 360° unrestrained rotation and compact size,as well as
transmit data and analog signal,compatible with bus protocol.

Further to an extensive range of standard products, we also provide individual solutions as your competent partner.

If you have any question ,pls feel free to contact us via WWW.ceno360.com

Typical applications

◆ CCTV pedestal

◆ Automatic arm

◆ Medical equipments

◆ Rotary index table

◆ Production line, industry process equipments

Advantage

◆ Continuous transmission of signal and/or data under 360° unrestrained rotation

◆ Less noise, long life

◆ Low torque, smooth rotation

◆ Electrical Noise<0.01Ω


Specification

BCN15-24 Specification Picture
Operating Speed 0-300 rpm Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation
Number of circuits 24
Current Rating 2A/circuit
Voltage 240 VAC/DC
Size

Φ12.4×14 mm

Φ12.4×19.5 mm
Operating Humidity 60%RH or higher
Electrical noise <10m Ω
Operating temperature -20~+80℃
Protection Grade IP54
Housing Material Engineering Plastics
Contact Material Precious Metals
Lead wire size 28# silver plated copper
Option

• Lead wire length

• IP grade

• Operating speed

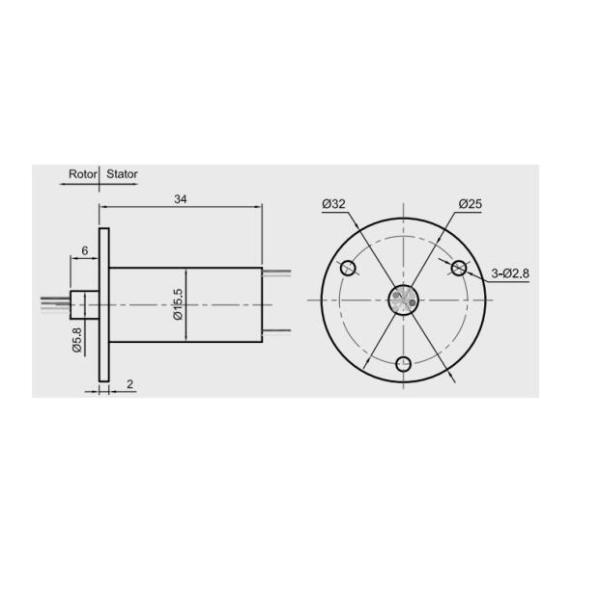

Outline drawing

Continuous Transmission Micro Slip Ring Data Under 360° Unrestrained Rotation

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
