2 or 4 Channel Flange Connection High Frequency Slip Ring With Single And Multi Mode

This series fiber optic rotary joint slip ring include 2-4 channels, it can be choosed single or multi mode with flange connection and ST,FC,SC this three connector types,it is widely used in naval vessel system,medical equipment and marine industrial equipment .

Features

• Apply to single or multi mode photoelectric rotary connection
• No contact,no friction,long life
• Transmit hundreds kilometer distance

Applications

• Medical equipment
• Radar system
• Naval vessel system

Optional

• Fiber type
• Connector type
• Fiber channel number

Specification

FCN0204G-67R Specification		Picture
Fiber Type	Single or multi mode
Working Temperature	-20℃~+60℃
Weight	1.6kg
Max Working speed	400rpm
Maximum input power	0.5W
Connector types	ST,FC,SC
Return loss	≥50(APC) or ≥40(PC)
Insertion loss	5dB/1dB

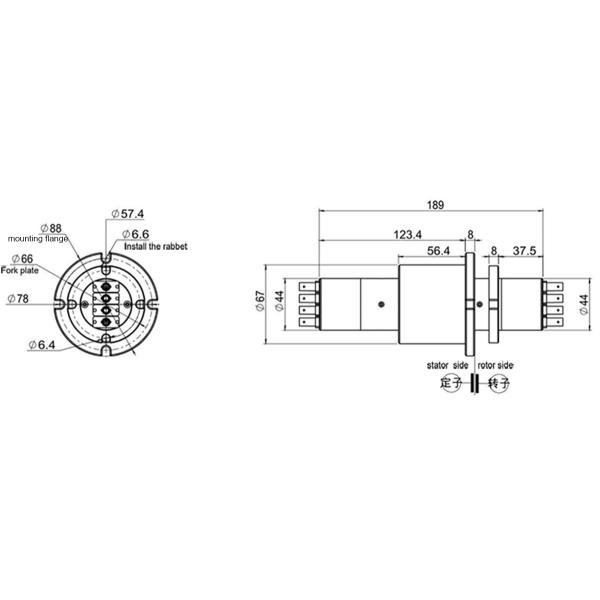

Outline drawing

Q: How does slip ring work?

A: A slip ring is an electrical connection designed to pass the flow of current from a stationary device to a rotating one.This electromechanical device is also known as a rotary electrical connector or rotary electrical joint. Electrical slip rings are free to rotate without limitations, unlike cables which twist and eventually break.In general, conductor rings are mounted on the rotor and terminated with leadwires that run axially through the rotor to one end. Brushes are secured by a brush holder that is mounted to the housing.Electrical slip rings work by holding a sliding contact (brush) against a ring (conductor ring). One part, typically the brush, is stationary while the other, typically the conductor ring, rotates.Electrical components incude the brush, contact ring, and electrical connectors.They are made of precision materials are selected based on requirements such as current size, voltage drop, rotational speed, temperature, resistance variation, bandwidth, and characteristic impedance.

Q: What applications are they used?

A: Typical applications refers revolving automation or control systems such as turntables, index tables, and robots. Wind turbines, semiconductor processing, printing plastic molding, CNC and MRI medical scanners, satellite communications, beverage bottle filling process, and industrial filling machine are also common slip ring applications.
