2 A / Circuit Current Rating Small Slip Ring IP 54 Low Electrical Noise
2 A / Circuit Current Rating Small Slip Ring IP 54 Low Electrical Noise
2 A / Circuit Current Rating Small Slip Ring IP 54 Low Electrical Noise
2 A / Circuit Current Rating Small Slip Ring IP 54 Low Electrical Noise
2 A / Circuit Current Rating Small Slip Ring IP 54 Low Electrical Noise
2 A / Circuit Current Rating Small Slip Ring IP 54 Low Electrical Noise
Specifications
Brand Name :
CENO
Model Number :
ACN22T-J
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union, L/C
Supply Ability :
10000pcs month
Delivery Time :
Off the shelf
Packaging Details :
Carton
Circuit number :
1-24
Current :
2A/circuit
Voltage :
240 VAC/DC
OD :
Φ22 mm
Protection grade :
IP54
Operating Humidity :
60%RH or higher
Description

2 A/circuit Current Rating Small Size Slip Ring With Through Hole Widely Used In Exhibit Equipment

Miniature slip ring capsule assemblies economically address both critical space and weight limitations. Each assembly includes the rotor, brush blocks, frame, ball bearings and dust cover.our electrical slip ring units are used around the world for reliable power and signal transmissions in military equipment,radar antenna applications.

For details and contact information, please visit: www.ceno360.com

Typical applications

◆ Electrical test equipment

◆ Manufacturing and process control equipment

◆ Indexing tables.

◆ CCTV pan / tilt camera mounts

◆ Robotics, rotary sensors, urgent illumination equipment

◆ Exhibit / display equipment.

◆ Mini-type wire-rolling machine

◆ Closed-circuit control

Advantage

◆ Low torque

◆ Smooth running

◆ Low electrical noise

◆ 360°continuous rotation

◆ Compact package


Specification

ACN22T-J Specification Picture
Operating Speed 0-300 rpm

2 A / Circuit Current Rating Small Slip Ring IP 54 Low Electrical Noise
Number of circuits 1-24
Current Rating 2 A/circuit
Voltage 240 VAC/DC
ID 6.4mm
OD 22 mm
Operating Humidity 60%RH or higher
Electrical noise <10m Ω
Operating temperature -20~+80℃
Protection Grade IP54
Housing Material Engineering Plastics
Contact Material Precious Metals
Lead wire size AWG28# silver plated copper
Option

• Lead wire length

• IP grade

• Operating speed

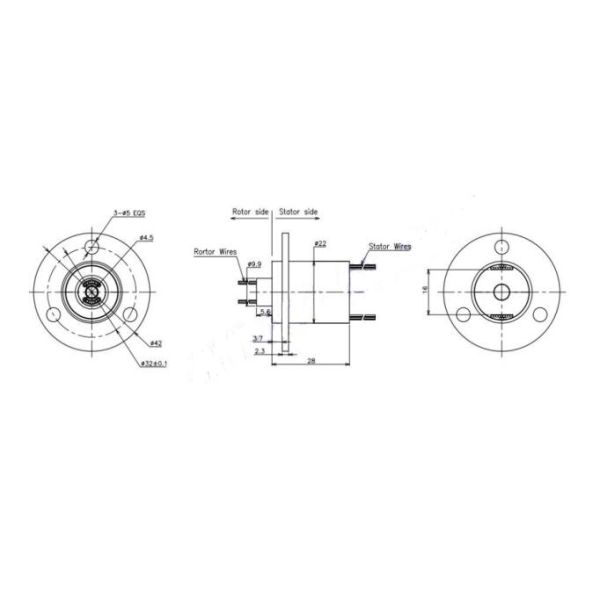

Outline drawing

2 A / Circuit Current Rating Small Slip Ring IP 54 Low Electrical Noise

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
