Specifications
Brand Name :
CENO
Model Number :
ACN22-03P-02S-01U3
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union, L/C
Supply Ability :
10000pcs month
Delivery Time :
Off the shelf
Packaging Details :
Carton
Current :
3*2A, 2*PWM signal,1*USB3.0
Voltage :
0~12 VAC/VDC
OD :
22mm
Operating speed :
0-300 rpm
Electrical noise :
≤35mΩ
Housing material :
engineering plastic
Description

USB3.0 Capsule Slip Ring Fast Transmission Rates With PWM Signal

This is USB3.0 signal capsule slip ring. It satisfies the USB3.0 transmission protocol and is compatible with the USB2.0 interface. It can also transmit PWM signal while transmitting USB signal. This slip ring is used for

high-speed data transmission between the PC and the mobile, such as camera or a variety of devices connected to high-frequency devices, with a standard interface, fast transmission rate.

Specification

ACN22-03P-02S-01U3
Current 3*2A, 2*PWM signal,1*USB3.0
Voltage 0~12 VAC/VDC
Electrical noise ≤35mΩ
Dielectric strength

≥300V@50Hz (power)

≥100V@50Hz (signal)
Insulation resistance

100MΩ@300VDC (power)

10MΩ@100VDC (signal)
Operating speed 0-300 rpm
Contact material precious metals
Housing material engineering plastics
Operating temperature -20~+60℃
OD 22mm

Applications

  • Camera gimbal
  • Camera stabilizer
  • VR devices

Features

  • Fast transmission rate of USB3.0 signal
  • Compatible with the USB2.0 interface.
  • Diversified transmission signals

Optional

  • Circuit number
  • Current rating
  • Installation way
  • Optional interface type

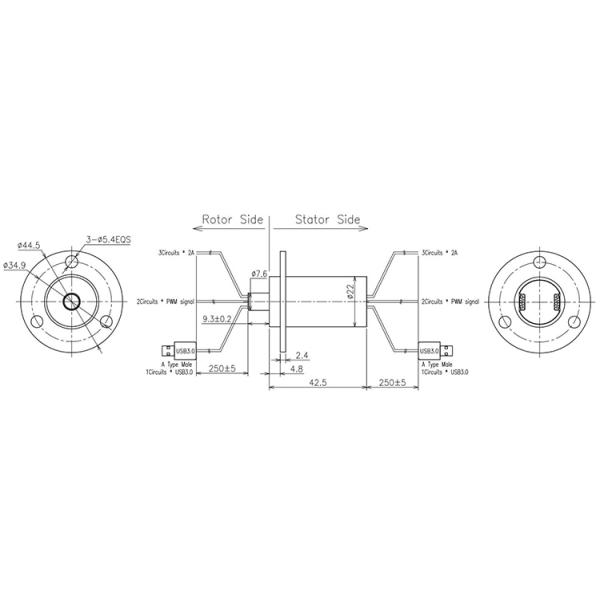

Outline Drawing

USB 3.0 Capsule Slip Ring plastic Housing Fast Transmission Rates With PWM Signal

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
