45mm Inner Diameter Through Bore Slip Ring Assembly Long Life Low Friction

Through hole series slip ring produced by CENO Electronics ,it could provide electricity continuously for many industrial application, because it can integrate signal and current transmission together.

Using the industry-leading manufacturing process, CENO slip rings is with reliable quality, long service life, no need lubrication as well as many other advantages,to meet customer requirements fully for rotary conduction, signal transmission,CENO can also provide many parameters for customer to choose ,such as outer diameter,inner diameter ,current,circuit number,IP protection.

Specification

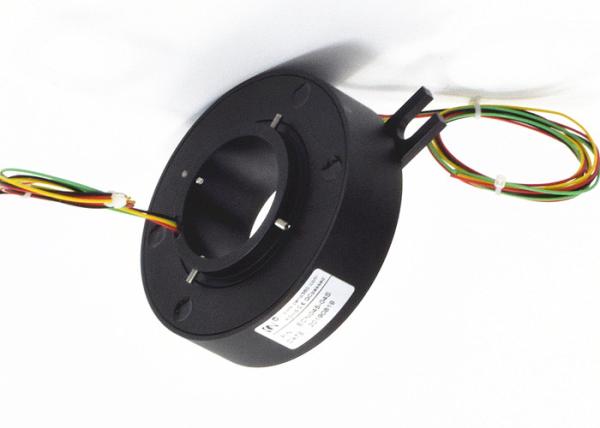

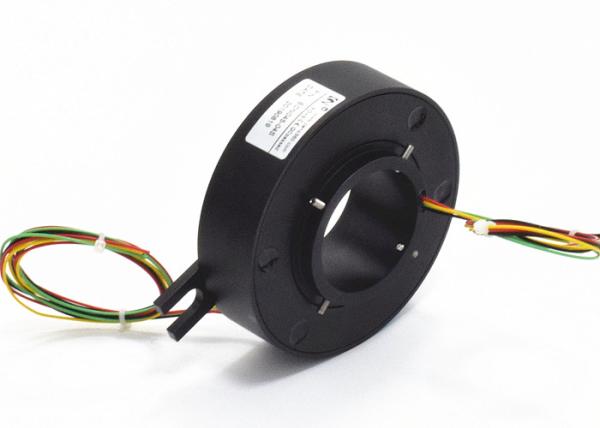

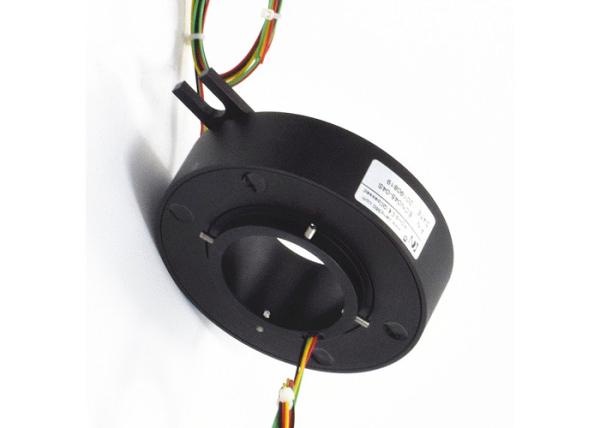

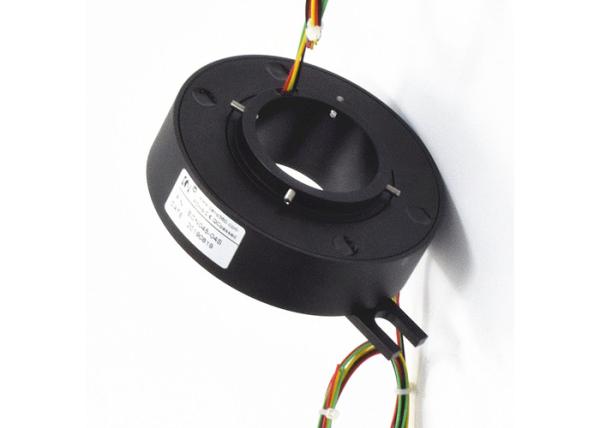

ECN045-04S		Picture
Current	4*0.5A
Voltage	5VDC
Electrical noise	≤15mΩ(50rpm)
Dielectric strength	≥500V@50Hz
Insulation resistance	≥100MΩ@100VDC
Operating speed	0-100 rpm
Contact material	precious metal
Operating temperature	-20~+60℃
Through bore size	45mm
IP protection grade	IP54

Feature

• Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
• Adopt advance fiber brush multipoint contact,low friction,long life

Application

• Amusement
• Construction engineering
• Package equipment

Optional

• Through hole size
• Circuit number
• Installation way
• IP protection grade

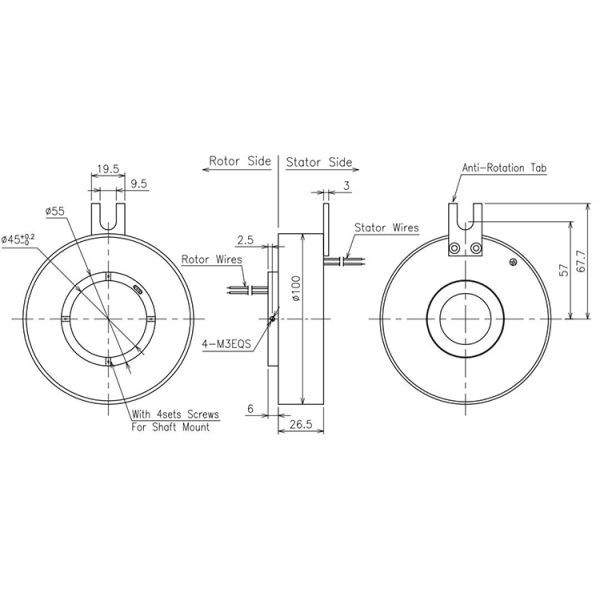

Outline drawing

Reduce costs
Improve manufacturing efficiency. You asked, we delivered.CENO Electronics offers high-performance 360° rotation solutions,
refined over years of helping customers with thousands of system designs in hundreds of industries.

How do you determine which is best for you?
Step one: Reference our slip ring products parameter chart, a matrix showing the key performance for CENO's products.
Keep in mind that if you don’t see the device needed for your project, we can work together on a derivative or a full custom device to fit your needs.
Step two: Fill out the custom form with necessary specification info, so we will be able to provide an evaluation solution, quote or more information on how we can make required slip ring easier.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
