Stable transmission radio frequency rotary joint slip ring with SMA connector used for radar antennas, high definition network and satellite communication.

Three channels radio frequency coaxial rotary joint RCN03-0812A from CENO is a radio frequency slip ring with strong optional, one of the interface type is SMA(50Ω), and other two interface can be choose as customer's application. It has many features such as anti-interference ability, compact structure, working stably and easy to integrated with other equipment etc. For the specification the frequency range is 8GHz-12GHz and low insert loss 2dB(max), the shortest working life is 5million rotation with the operation speed 60rpm(max). The maximum Voltage standing wave radio is 2:1. It support high frequency signal, power and other combined signal transmission. All of CENO's radio frequency rotary joint specification values can be choose.

Specfication

Features

• Wide frequency range

• Compact structure

• Integrated with other equipment

Applications

• Testing equipment

• Motion simulator

• Air traffic control

Optional

• Channel number

• Frequency range

• Life time & working speed

• IP grade

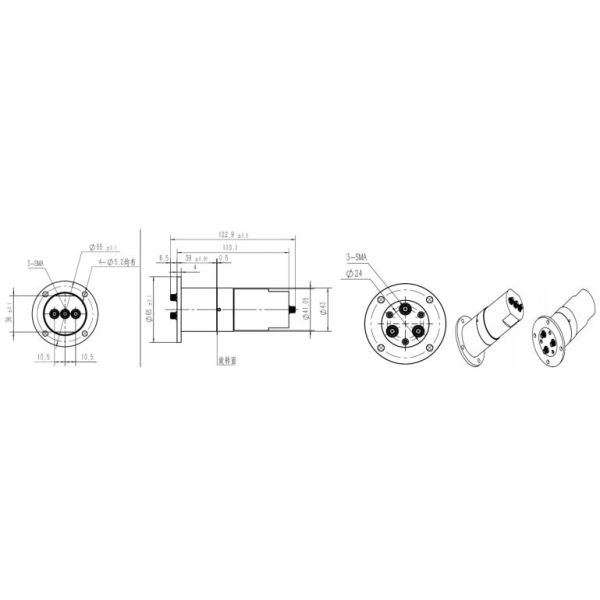

Outline Drawing:

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
