12 rings of 10A through hole Collector ring inner diameter 38mm with 300rpm

ECN038-1210 is one model of through hole industry slip rings in CENO electrical company with low noise 30mΩ when the working speed is 50rpm, there are 12 circuits of 10A electrical signals and the Rating Voltage is 0~600 VAC/VDC. The contact material is precious metal and the housing material is aluminum alloy, through hole diameter is Ø38.1mm and external size is Ø99mm. Installation method is that fix up stator side with anti-rotation side shaft to drives rotor side running. It is wildly used on various industry equipment, such as agriculture equipment forestry industry, fishery industry, mineral engineering equipment etc.

Specification

Features

• Stable data transmission,no packet loss ,low return loss,

• Wide rage of application

• The solution can combine hybrid of power, digital signal,fiber optic,gas-liquid

Applications

• Fishery industry

• Agriculture and forestry industry

• Industrial automatic control

• Mineral engineering equipment

Optional

• Circuit number &Current rating

• Application temperature

• Working speed

• IP protection grade

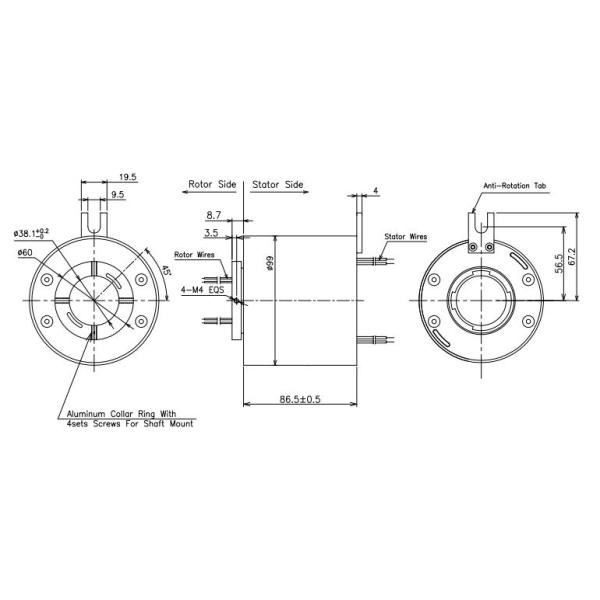

Outline drawing

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
