High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56
High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56
High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56
High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56
Specifications
Brand Name :
CENO
Model Number :
ECN096-15P1-IP56
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current :
15 circuits * 5A
Rating Voltage :
380VAC/VDC
Working speed :
0~50rpm
Protection Grade :
IP56
Temperature :
-20°C ~ +120°C
Contact material :
Precious Metal
Housing material :
Aluminum alloy + Stainless steel
Installation way :
Fix the rotor end to the main shaft guest supplied with screws
Working humidity :
<60%
lead wire size :
Guest supply
Description

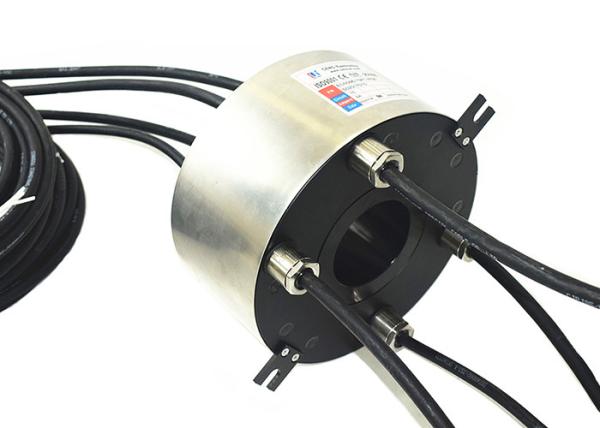

Industry Slip ring high temperature 120°C through hole Ø96mm IP56

ECN-096-15P1-IP56 is one of the through hole industry slip rings in CENO company, there are 15 circuits for 5A, rating voltage is 380VAC/VDC and the through bore size is Ø96mm in this industry slip ring. The housing material is Aluminum alloy + stainless steel, contact material is precious metal, it can be working normally at the speed from 0 to 50rpm within the temperature -20°C ~ +120°C. Most of the specification is optional, such as current, circuits, voltage, Material, working speed and temperature etc according to CENO’s customer requests. Due to it’s suitable the high temperature and high humidity working environment, always used on the sewage treatment, food processing machinery, Filling machine, Marine platform.

Features

• Large inner diameter Ø96mm ,

• Resistant to high temperature and high humidity

• Most of specification is optional

Applications

• Winding machine

• sewage treatmen

• Marine platform

• Automation in industry

Optional

• Circuit number & Current

• Working speed

• Protection grade

• Signal type & Material

Specification

ECN096-15P1-IP56
Current & Circuits 15 circuits * 5A
Rating Voltage 380VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistant float Max 30mΩ (50rpm)
Lead wire size Guest supply
Lead wire length Rotor : 8000mm; Stator : 5000mm
Operating speed 0~50rpm
Contact material Precious Metal
Housing material Aluminum alloy + Stainless steel
Working temperature -20°C ~ +120°C
Working humidity <60%
Protection grade IP56
Installation way Fix the rotor end to the main shaft guest supplied with screws
Through hole diameter

Ø96mm

Outline drawing

High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
