4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery
4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery
4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery
4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery
4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery
4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery
Specifications
Brand Name :
CENO
Model Number :
QCN04M5-12
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
channels :
4 channels * pneumatic
Connect type :
M5; Ø6mm tube
Pressure Max :
-100KPa ~ 0.6MPa
Working speed :
0~250Rpm
Housing material :
Aluminum Alloy + stainless steel
Contact material :
Precious metal
Torque :
≤2.0N*m
Through Hole :
Ø12mm
Description

4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery

QCN04M5-12 is CENO pneumatic rotary union with 4 channels gas & Ø6mm tube for pharmaceuticals. Pneumatic / hydraulic rotary union is rotary union specially used to transmit gas / air / pneumatic / hydraulic or liquid media. And rotary union adopt different sealing methods according to different transmission media. The application fields of rotary joints cover almost every processing and manufacturing industry, such as: metallurgy, machine tools, rubber, plastic feed processing, etc. For more information about how CENO rotary union can fit your special application please contact us

Features

  • Different sealing forms selected as different applications
  • Channels be to 16 as request
  • The boundary dimension and installation is customized

Applications

  • Lithium battery equipment
  • Laser cutting machine
  • CNC Machinery
  • Filling machinery
  • Medical equipment

Optional

  • Channels & medium
  • Contact / Housing Materials
  • Protection grade
  • Temperature
  • Working speed

Specification

QCN04M5-12

 Specification
Channels 4 channels * Gas
Connect type M5; Ø6mm tube
Pressure -100KPa ~ 0.6MPa
Rotating 0~250 rpm
Torque ≤2.0N*m
Inner diameter Ø12mm
Housing material Stainless steel+Aluminum

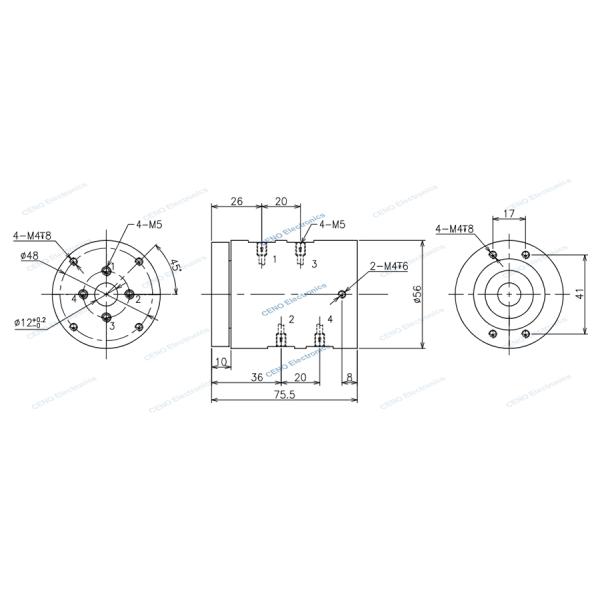

Outline Drawing

4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

4 Channels Gas Pneumatic Rotary Union with M5 Sealing ring For Lithium battery

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
