Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints
Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints
Specifications
Brand Name :
CENO
Model Number :
RCN0404A
Certification :
ISO9001,CE,RoHS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton
Channels :
4 Channels*RF ;
Interface :
SMA-F(50Ω)
Frequency range :
DC-4GHz
Style :
I
Average power :
50W; 10W; 10W; 10W
VSWR, max :
1.3; 1.5; 1.5; 1.5
VSWR WOW, max :
0.1; 0.1; 0.1; 0.1
Insertion Loss, max :
1.3dB; 1dB; 1dB; 1dB
Insertion loss,wow,max :
0.1dB; 0.1dB; 0.1dB; 0.1dB
Insulation, min :
55dB; 55dB; 55dB; 55dB
Phase stable, max :
1deg; 4deg; 4deg; 4deg
Working speed :
0~30rpm
Service life,Min :
5x106 Rotation
Torque, Max :
0.8Nm@normal temperature
Materials :
Aluminum Alloy
Surface treatment :
Electric Conductive Oxidation
Net Weight :
700g
IP Grade :
IP60
Working Temperature Storage Temperature :
-40℃~+70℃ -50℃~+70℃
Working Humidity :
95%
Description

Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints

RCN0404A is CENO new product 4-channels RF Rotary Joints which belongs to RCN system products. This series of slip rings is a non-standard customized series, designed for the radar industry. RF Rotary Joints can be integrated current and signals. The frequency of the joint ranges from DC to 50GHz,and the number of channels range from single to five. RF Rotary Joints have stable performance, meet EMC electromagnetic compatibility requirements, and widely used in various radar antenna systems.

Features

  • Channels can be up 5RF
  • Can be integrated signal / date for variety of functions
  • Frequency range DC-50GHz & Channels1-5 is option

Applications

  • Radar antenna
  • Air traffic control
  • Electronic warfare system
  • Space defence
  • Photoelectric pod

Optional

  • Channel number
  • Frequency range
  • Interface type
  • Working temperature
  • Working speed

Specification

RCN0404A

 Specification
Channel CH1 CH2 CH3 CH4
Interface SMA-F(50Ω) SMA-F(50Ω) SMA-F(50Ω) SMA-F(50Ω)
Frequency range DC-4GHz DC-4GHz DC-4GHz DC-4GHz
Style I I I I
Average power 50W 10W 10W 10W
VSWR, max 1.3 1.5 1.5 1.5
VSWR WOW, max 0.1 0.1 0.1 0.1
Insertion Loss, max 1.3dB 1dB 1dB 1dB
Insertion loss,wow,max 0.1dB 0.1dB 0.1dB 0.1dB
Insulation, min 55dB 55dB 55dB 55dB
Phase stable, max 1deg 4deg 4deg 4deg
Working speed 0~30rpm
Service life,Min 5x106 Rotation
Torque, Max 0.8Nm@normal temperature
Materials Aluminum Alloy
Surface treatment Electric Conductive Oxidation
Net Weight 700g
IP Grade IP60

Working Temperature

Storage Temperature

-40℃~+70℃

-50℃~+70℃
Working Humidity 95%

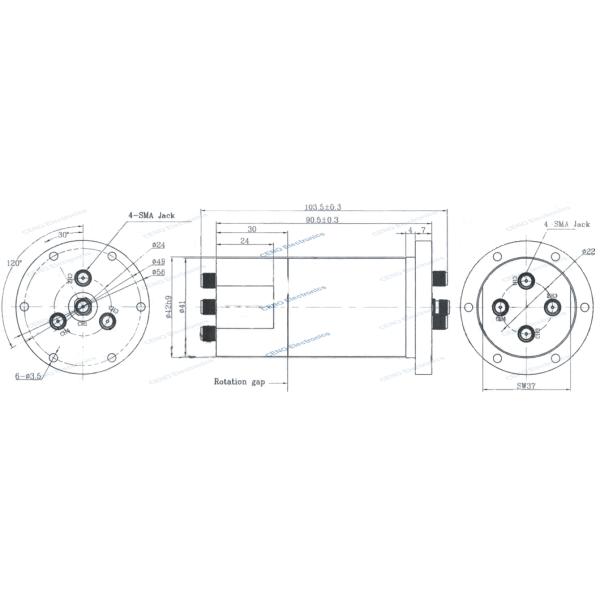

Outline drawing

Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Antenna Slip Ring with 4 Channels SMA-F Radio Frequency Rotary Joints

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
