3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
Specifications
Brand Name :
CENO
Model Number :
BCN0317T
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union, L/C
Supply Ability :
10000pcs month
Delivery Time :
Off the shelf
Packaging Details :
Carton
Circuit number :
1-8
Current :
2A/circuit
Voltage :
240VAC/DC
OD :
17 mm
Protection grade :
IP54
Operating Humidity :
60%RH or higher
ID :
3mm
Lead wire size :
AWG26# silver plated copper
Description

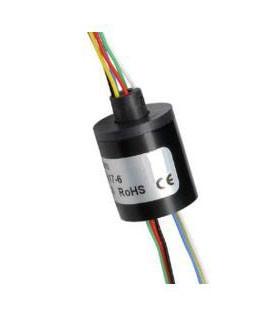

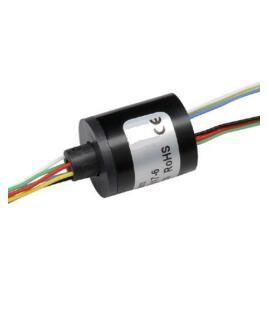

Smooth Running 3mm ID With Through Hole Slip Ring For Mini-Type Wire-Rolling Machine

The special series small size slip ring like 0D 17mm ,ID3mm with through hole ,widely used in mini-type wire-rolling machine,
Robotics, rotary sensors, urgent illumination equipment and closed-circuit control.

For your reference,

CENO's small size slip rings includes ACN,BCN,CCN,DCN for series.They have flexible spec options
to fulfill the various and complex requirement of systems.We also call them capsule slip rings.
Ring number are range from 2 rings up to 100 rings.Power and signal are easily to be integrated
into one slip rings under our years of proven technique.Outstanding signal types are Ethernet,canbus,
profibus,RS,HDMI,HD-SDI,USB and so on. Typical outside diameter is 5.5mm,12.4mm,22mm in these series.

Any question,pls feel free to visit our website: WWW.CENO360.COM

Typical applications

◆ Electrical test equipment

◆ Manufacturing and process control equipment

◆ Indexing tables.

◆ CCTV pan / tilt camera mounts

◆ Robotics, rotary sensors, urgent illumination equipment

◆ Exhibit / display equipment.

◆ Mini-type wire-rolling machine

◆ Closed-circuit control

Advantage

◆ Low torque

◆ Smooth running

◆ Low electrical noise

◆ 360°continuous rotation

◆ Compact package


Specification

BCN0317T Specification Picture
Operating Speed 0-300 rpm 3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine
Number of circuits 1-8
Current Rating 2 A/circuit
Voltage 240 VAC/DC
ID 3mm
OD 17 mm
Operating Humidity 60%RH or higher
Electrical noise <10m Ω
Operating temperature -20~+80℃
Protection Grade IP54
Housing Material Engineering Plastics
Contact Material Precious Metals
Lead wire size AWG26# silver plated copper
Option

• Lead wire length

• IP grade

• Operating speed

Outline drawing

3mm ID Capsule Slip Ring Smooth Running For Mini Type Wire Rolling Machine

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
