SUS316 Housing 0~24 VAC/VDC IP67 Explosion Proof Slip Ring
SUS316 Housing 0~24 VAC/VDC IP67 Explosion Proof Slip Ring
Specifications
Brand Name :
CENO
Model Number :
ECN-EX-06S
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current :
6*2A
Voltage :
0~24 VAC/VDC
Dielectric strength :
≥300V@50Hz
Housing material :
SUS316
IP protection grade :
IP67
Explosion-proof grade :
EX ǁ2 /2G EX ib mb/Ex pyb ǁC T6 Gb/Gb
Description

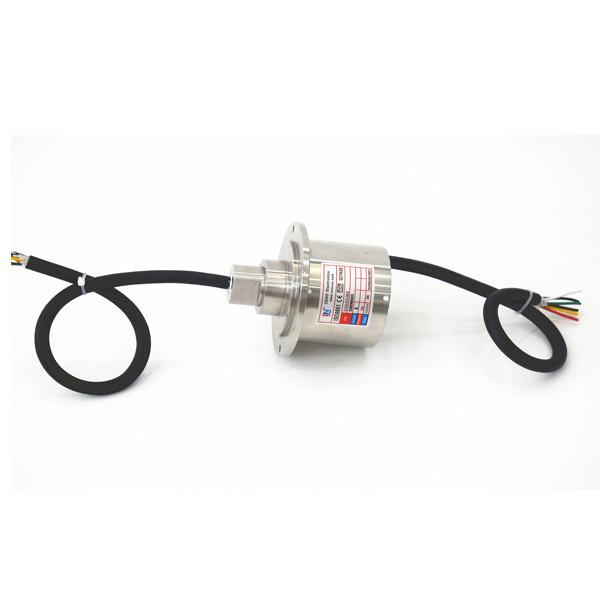

IP67 Explosion Proof Slip Ring Components SUS316 Housing

Explosion-proof electrical slip ring, usually refers to the explosion-proof function, can work under explosive environment,such as oil platform, explosive material packaging equipment, agricultural processing equipment, coal mines, spraying and other dangerous places .CENO combined with years of experience in developing and producing highly reliable slip rings, an explosion-proof type conductive slip ring is developed, which can meet the requirements of explosive gas environment and explosive dust environment at the same time. The protection grade is IP67.

Specification

ECN-EX-06S
Current 6*2A
Voltage 0~24 VAC/VDC
Electrical noise ≤15mΩ(50rpm)
Dielectric strength ≥300V@50Hz
Insulation resistance 200MΩ@100VDC
Operating speed 0-50 rpm
Contact material Gold to gold
Housing material SUS316
IP protection grade IP67
Explosion-proof grade EX ǁ2 /2G EX ib mb/Ex pyb ǁC T6 Gb/Gb

Features

  • High safety,high reliability
  • Support analog signal and data signal mixed transmission
  • SUS316 housing material

Optional

  • Housing material
  • Circuit number
  • Current rating
  • Voltage
  • IP protection grade

Applications

  • Package equipment of explosive material
  • Agriculture processing equipment
