1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
Specifications
Brand Name :
CENO
Model Number :
QCN0201-07P-02EG
Certification :
ISO9001,CE,RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
2 weeks
Packaging Details :
Carton
Air channel number :
2
Electrical circuit number :
7
Current :
5*25A; 2*20A; 2 group 1000M Ethernet signal
Voltage :
380VAC/VDC
Protection Grade :
IP54
Media :
Compress air
Description

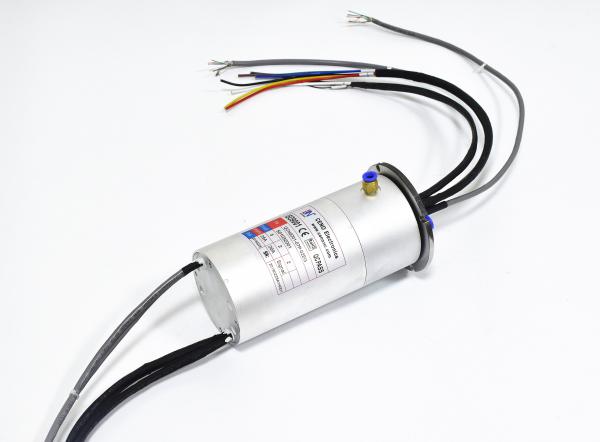

2 Channel Air 7 Circuits Air Rotary Union With 1000M Ethernet Signal Slip Ring

A rotary union is sometimes referred to as an electrical rotary union, rotary valve, swivel union, hydraulic coupling, pneumatic rotary union or vacuum rotary union. It transmit water,oil and some chemical liquid media e.c.t .Both air and liquid rotary union are in rotary union series.

Features

  • Transmit100M/1000M ether net
  • Integrate various signal and power,comply with EMC
  • reliable transmitting,no package loss,no cross talk,low loss

Applications

  • Automation equipment
  • Measuring equipment

Optional

  • Circuit number
  • IP protection grade
  • Current rating

Specification

QCN0201-07P-02EG Specification Picture
Current 5*25A; 2*20A; 2 group 1000M Ethernet signal 1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade
Working Temperature -20℃~+60℃
Protection Grade IP54
Working speed 0~100rpm
Contact material Precious metal
Rating Voltage 380VAC/VDC
Lead Wire Size 2.5mm² ;2.0mm²; CAT5e
Working Humidity Below 60%RH

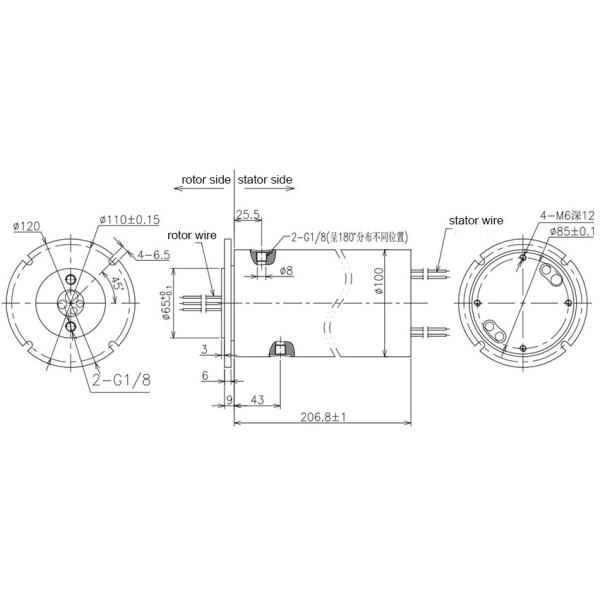

Outline Drawing

1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

1000 M Rotary Swivel Unions , Pneumatic Rotary Union IP 54 Protection Grade

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
