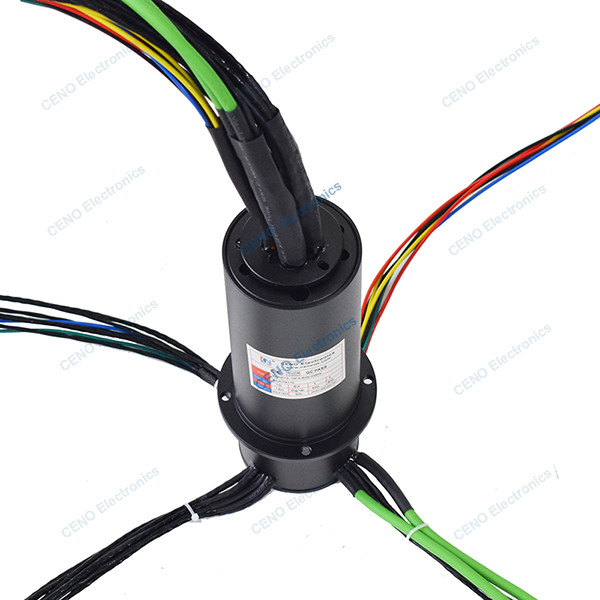

Low Temperature Ethernet Signal Slip Ring with multi-channels electric power
Low Temperature Ethernet Signal Slip Ring with multi-channels electric power
Low Temperature Ethernet Signal Slip Ring with multi-channels electric power
Low Temperature Ethernet Signal Slip Ring with multi-channels electric power
Low Temperature Ethernet Signal Slip Ring with multi-channels electric power
Low Temperature Ethernet Signal Slip Ring with multi-channels electric power
Specifications
Brand Name :
CENO
Model Number :
ECN012-10P3-63S-02EG
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current & Circuits :
10 circuits* 15A; 63 circuits* signal; 2 Groups* Ethernet
Rating Voltage :
330VAC/VDC
Dielectric strength :
≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance :
500MΩ@500VDC; 100MΩ@300VDC
Contact resistance :
30mΩ (50rpm)
Temperature :
-40°C~+55°C; -55°C~+70°C
Working humidity :
60%RH
IP protection grade :
IP51
Operating speed :
0~300rpm
Inner Diameter :
Ø12.7mm
External Diameter :
Ø 75mm
Lead wire length :
Rotor: 500mm; Stator: 1000mm
Installation :
Flange
Contact Material :
Precious Metal
Housing Material :
Aluminum Alloy
Description

Low Temperature Ethernet Signal Slip Ring with multi-channels electric power

ECN012-10P3-63S-02EG is CENO new customized low temperature slip ring with multi-channels electric power and circuits Ethernet signal, which is equipped in the machinery stating and working stably in the low temperature environment from -55°C~+70°C. Ethernet signal is an advanced communication technology and widely used in kinds of machinery, it can realize the data transmission of high speed, stably and reliable. For more information please contact us.

Features

  • Anti-low temperature design
  • Compact structure, Stable performance & optional spec
  • Can be integrated various data
  • Install easy & Free maintenance

Applications

  • Automatic machine
  • Turntable testing machine
  • Intelligent housing system
  • Aerospace
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • IP Grade & outlet wire
  • Working speed & temperature

Specification

ECN012-10P3-63S-02EG

 Specification
Current & Circuits 10 *15A; 60 * signal; 2 * Ethernet Signal
Rating Voltage 0 ~ 330 VAC/VDC
Dielectric strength ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance ≤30mΩ (50rpm)
Contact material Precious Metal
Housing material Aluminum Alloy
Working temperature -40°C~+55°C; -55°C~+70°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0 ~ 300 rpm
Lead wire size Tin coated Teflon@UL; CAT6
Lead wire length As customized
Installation Flange installation
Inner diameter 12.7mm
Working life 5 Million Rotation

Outline drawing

Low Temperature Ethernet Signal Slip Ring with multi-channels electric power

Application

Low Temperature Ethernet Signal Slip Ring with multi-channels electric power

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Low Temperature Ethernet Signal Slip Ring with multi-channels electric power

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Low Temperature Ethernet Signal Slip Ring with multi-channels electric power

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
