Gas Fired Industrial Steam Boiler , Automatic Running Industrial Water Boiler
Gas Fired Industrial Steam Boiler , Automatic Running Industrial Water Boiler
Specifications
Brand Name :
Yuanda
Model Number :
WNS-15-1.5-Y
Certification :
ISO9001,CE,SGS
Place of Origin :
Henan,China
MOQ :
1 SET
Price :
Depends boiler model
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 sets per year
Delivery Time :
About 15 working days after peyment
Packaging Details :
Professional boiler cooperated transportation pakaging and delivery.
Produdct name :
15Ton Gas Fired Industrial Steam Boiler Automatic Running Steam Boiler
Boiler capacity :
0.5t-20t
Boiler efficiency :
88%-95%
Material :
Q345R natiaonal standard
Boiler type :
Automatic running
Fuel fired :
natural gas,diesel,heavy oil
Boiler structure :
three pass fire tube boiler
Steam temp. :
below 226°C
Description

Gas Fired Industrial Steam Boiler , Automatic Running Industrial Water Boiler

Boiler introuction

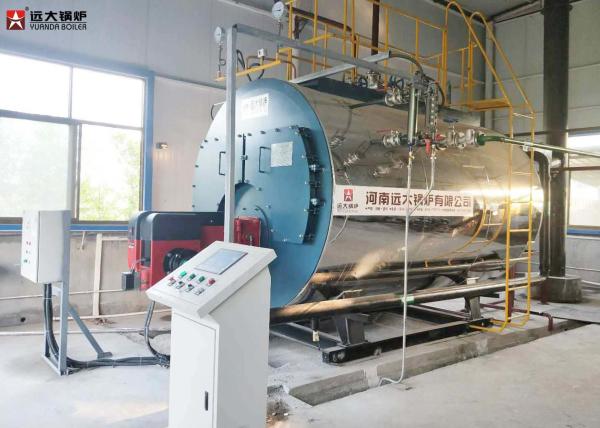

This series boiler is three return fire tube steam boiler. It is equipped with good performance burner and advanced techniques. The burning control, water feed, programs run, etc, is full automatic. This fantasy boiler is safe and reliable, and also has the advantage of compact structure, simple operation, easy installation, high efficiency, less pollution and noise,etc.

Boiler technical parameter

Boiler model Capacity Pressure Feed temp. Steam temp. Fuel consump. Thermal efficiency Weight
Light oil Natural gas
t/h Mpa ℃ ℃ kg/h m3/h % ton
WNS1-1.0-Y(Q) 1 1 20 184 65.5 84.2 91 4.3
WNS 2-1.25- Y(Q) 2 1.25 20 194 129.6 165 92 7.2
WNS3-1.25-Y(Q) 3 1.25 20 194 192 250 92.1 8
WNS4-1.25- Y(Q) 4 1.25 20 194 256 323.6 93 9.6
WNS5-1.25- Y(Q) 5 1.25 20 194 318 386 93 12.5
WNS6-1.25- Y(Q) 6 1.25 20 194 380 450 93.2 16.5
WNS8-1.25- Y(Q) 8 1.25 105 194 503 642 93.5 24.8
WNS10-1.25- Y(Q) 10 1.25 105 194 628 805 93.5 26.8
WNS15-1.25- Y(Q) 15 1.25 105 194 940 1182 93.5 38
WNS20-1.25- Y(Q) 20 1.25 105 194 1250 1597 93.5 55

Application of Yuanda Boiler


1.Feeding processing factory
2.Textile industry
3.Printing industry
4.Brewery industry
5.Food making factory
6.Mill factory

Advantage design of boiler

1. Adopt domestic and foreign advanced large furnace design
Increase the diameter of furnace on the basis of original traditional design.expand the surface of radiant heat exchange. So, mainly center on radiant heat exchange ,reduce the heat exchange burden during the second and third return,and make the fuel burning efficiently,reduce the harmful gas production. Besides,the spiral hearth in the high temperature area not only increase the area of radiant heat exchange, but also make a resistance to the smoke movement.have a obvious effect about radiation heat exchange.

2. The spiral furnace design
Increase the overall strength of the furnace,make compensation for the heat exchange and shrinkage automatically,avoid the in-perfection of welded sew crack due to the change of tube plate heating stress.Therefore,boiler has strong adaptability about various of fuel,for example,heavy oil,light oil,natural gas,city gas.

3. Improve heat transfer technology
Apply the technology of heat transfer from “the light of Harbin institute”. Adopt the design of efficient heat transfer screw thread pipe and optimize the smoke speed. The output and heat efficiency of boiler don’t decrease with the extend of operation time, thus achieve a compact structure with 10% overload capacity.
