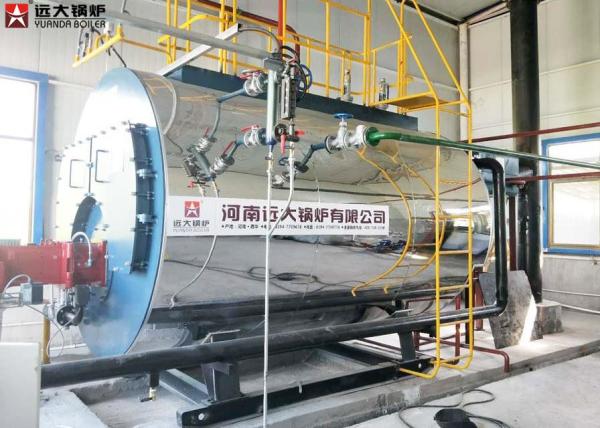

Horizontal Natural Gas Fired Steam Generator Boiler Automatic Running Operation
Horizontal Natural Gas Fired Steam Generator Boiler Automatic Running Operation
Specifications
Brand Name :
Yuanda boiler
Model Number :
WNS steam boiler
Certification :
ASME,ISO9001,CE
Place of Origin :
China
MOQ :
1 set
Price :
Price can be discussed
Payment Terms :
D/P, D/A, L/C, T/T, Western Union
Supply Ability :
800 stes per year
Delivery Time :
25 working days
Packaging Details :
Nude packaging for boiler main part and wooden box packaging for boiler accessories.
Product name :
20Ton Good Quality Industrial Steam Boiler Natural Gas Fired Steam Boiler
Capacity :
0.5t-20t
Color :
Gray, Silver
Tube :
Fire tube
Steam temp. :
Below 216°C
Design fuel :
natural gas,oil,diesel,heavy oil
Company :
boiler factory since 1956
Boiler operation :
Automatic running
Description

Horizontal Natural Gas Fired Steam Generator Boiler Automatic Running Operation

General Introduction of WNS fire tube boiler


1. Fuel: Natural gas,LPG,CNG,LNG,diesel oil,heavy oil ,city gas,dual fuel,etc.
2. The steam boiler have horizontal structure,so the thermal efficiency is higher.
3. It has the three returns design, so exhausted smoke temperature is low.

Boiler technical parameter

Boiler model Capacity Pressure Steam temp. Fuel consump. Thermal efficiency Weight
Light oil Heavy oil Natural gas
t/h Mpa ℃ kg/h kg/h m3/h % ton
WNS1-1.0-Y(Q) 1 1 184 65.5 67.3 84.2 91 4.3
WNS 2-1.25- Y(Q) 2 1.25 194 129.6 132.2 165 92 7.2
WNS3-1.25-Y(Q) 3 1.25 194 192 195 250 92.1 8
WNS4-1.25- Y(Q) 4 1.25 194 256 261.9 323.6 93 9.6
WNS5-1.25- Y(Q) 5 1.25 194 318 322 386 93 12.5
WNS6-1.25- Y(Q) 6 1.25 194 380 390.6 450 93.2 16.5
WNS8-1.25- Y(Q) 8 1.25 194 503 517 642 93.5 24.8
WNS10-1.25- Y(Q) 10 1.25 194 628 643 805 93.5 26.8
WNS15-1.25- Y(Q) 15 1.25 194 940 965 1182 93.5 38
WNS20-1.25- Y(Q) 20 1.25 194 1250 1301 1597 93.5 55

Boiler Application

1. Medicine
2. Chemical
3. Light industry
4. Textile factory
5. Building material
6. Cultivation
7. Food
8. Beverage
9. Plastic foam
10. Printing,
11. Dyeing and washing
12. Rubber processing
13. Paper products
14. Wood processing
15. Hotel
16. Clothing and leather manufacturer etc.

Boiler Features


1. Adopting the latest technology, it is designed with a combustion chamber with large volume.It is equipped with a world-known burner,making the combustion more sufficient and ensuring higher efficiency and lower failure rate.
2. It adopts advanced corrugated furnace pipe structure,increasing the heat surface area, and satisfying free expansion of the furnace pipe after heating.
3. It adopts wet back structure with high reliability and low maintenance cost.The wet type flue gas flow and compact structure to prevent the tube plate cracking,Science and calculate the heated area, output assured;
4. It has protective functions of over temperature, over pressure, water shortage, leakage detection and flame out, ensuring safe and reliable operation.Double pressure gauge, water level gauge, safety valve, double assurance, escort for the safe operation of boiler.
