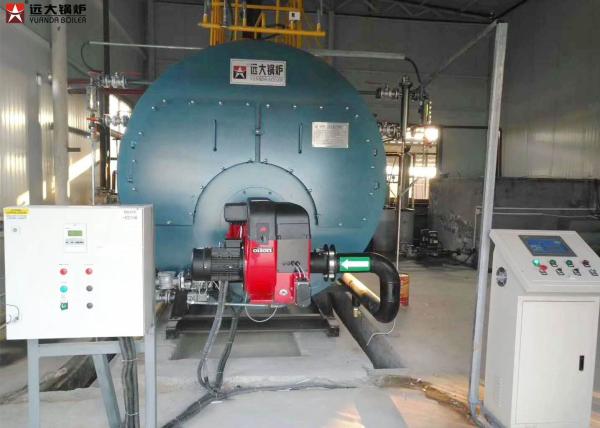

15T Diesel Oil Fired Industiral Steam Boiler , Low Pressure Fire Tube Boiler

General introduction

WNS Oil Fired Steam Boiler offered by us are designed and manufactured to deliver optimum functionality in the given environment. Backed by cutting edge features and special designs, these fully automatic systems provide complete ease of operations and maintenance. Package Type, Fully Automatic, three pass & water tube design electric steam boilers. These industrial steam boilers are designed to efficiently meet the demands of instantaneous steam.

1. WNS series oil Gas fired steam boiler realize high efficient heat transfer, sufficient burning with brand burner, environment protection
2. Adopted international latest technology for big volume combustion room design, and use brand burner machine
3. Corrugated furnace design make large heat transfer area and protect furnace
4. Using spirally corrugated tube , 1-2 faster heat transfer efficiency and remove hidden danger of welding cracks
5. Adopted wet-back structure that can reduce faults rate and maintenance cost
6. Equipped with protection devices for overheating, over pressure, lacking water, leak detection, flame out etc

Boiler application

Boiler Application

1. The Gas/Oil Fired Steam Boiler can be used for the following business: Chemical plant, Textile plant, Food & Beverage, Garment manufacturing, Paper Plant, Printing and dyeing mill, Cement Plant, Fertilizer plant, Feed mills, Rubber factory. Schools, Hotel, Bath Center, Swimming Pool, Hospital, Hotel, etc.
2. The most important thing is that our boilers are all tailor-made.They are designed all depending on your business,including on the fuel,capacity,pressure and so on you need.

Boiler Running Advantages

1. Safe and reliable.
(1) Whole wet back structure and transition multi-loop full-temperature condenser design, ND just material, fin tube design,which highly reduces the back plate sheet temperature(around 50°).
(2) Double layer 12cm aluminum silicate insulation material,two stage anti-leak design and tight seal to avoid leakage phenomenon.
(3) Design tension bars,increasing the tube plate strength, preventing cracking.

2. Long life span(More than 20 years ).
(1) 5-10% overload capacity design and reasonably configurate spare parts, reduce equipment fatigue.
(2) New type refractory material, solidification strong, long using life, which will not fall off after shaking.
(3) Smoke chamber ultrasonic testing, over pressure 40-50% water pressure test,ensure the boiler quality.

3. Intelligent and fully automatic.
(1) Adopt world famous brand burner,including baltur, riello from italy, weishaupt,hofat from Germany,Olin from Finland, etc.
(2) Adopt mechanical-electrical integration control equipment and programmable logic controller(PLC) touch screen electric control cabinet.
(3) Continuous feeding water vertical multistage centrifugal stainless steel pump,no need manual adjustment and at same time, ensure the stable&safety running of boiler.
