4 Ton Bagasse Fired Biomass Steam Boiler / 1.6Mpa Industrial Steam Boiler
4 Ton Bagasse Fired Biomass Steam Boiler / 1.6Mpa Industrial Steam Boiler
Specifications
Brand Name :
Yuanda
Model Number :
SZL water tube boiler
Certification :
ISO9001,CE,ASME
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Price can be negotiated.
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per year
Delivery Time :
20 working days after payment
Packaging Details :
Wooden box for boiler accessories and professional transport cooperate.
Product name :
4Ton Bagasse Fired Biomass Steam Boiler 1.6Mpa Industrial Steam Boiler
Boiler capacity :
large capacity 2ton - 30ton
Boiler model :
SZL two drums A layout boiler
Boiler pressure :
1.0MPa, 1.5MPa, 2.0MPa
Boiler efficiency :
86%
Biomass fuel :
rice husk,coconut shell,bagasse,paddy,wood chips
Quality :
High strict quality control system
Company :
boiler factory since 1956
Description

4 Ton Bagasse Fired Biomass Steam Boiler / 1.6Mpa Industrial Steam Boiler

Characteristic


1. A Grade Steam boiler
2. Lower fuel consumption.
3. Lower power consumption.
4. Lower heat losses.
5. Stable operating efficiency of the boiler
6. Boilers are completely trimmed, packaged boilers.No additional fuel train items or electrical wiring is needed.
7. Integrating with explosion gate, digital control system guarantee the boiler is safe.

The furnace type is double-drum,offset furnace, D-type layout, large furnace space, suitable for biomass boiler combustion.Design independent whirlwind burning chamber, with level dust function.Water pipe boiler,large heating area, boost fast.

Boiler technical parameter

Model Capacity Pressure Rated Feed water temp. Rated steam temp. Boiler heating area Boiler efficiency Fuel consump. Weight Delivery Mode
t/h Mpa ℃ ℃ ㎡ % kg/h Ton
SZH2-1.25/2.5-AII 2 1.25/2.5 20 194/226 69.5 81 225/228 17/18.5 Package Bolier
SZH4-1.25/2.5-AII 4 1.25/2.5 20 194/226 119.2 81 450/462 22/24.8
SZL2-1.25/2.5-AII 2 1.25/2.5 20 194/226 64.6 81.6 223/227 20/25
SZL4-1.25/2.5-AII 4 1.25/2.5 20 194/226 115.3 81.6 447/453 28/29
SZL6-1.25/2.5-AII 6 1.25/2.5 20 194/226 136.3 81.6 671/684 38/42
SZL8-1.25/2.5-AII 8 1.25/2.5 20 194/226 173 81.8 781/803 52
SZL10-1.25/2.5-AII 10 1.25/2.5 20 194/226 233 82 1113/1127 68 Assembled Boiler
SZL15-1.25/2.5-AII 15 1.25/2.5 20 194/226 307.3 82.3 1663/1686 30
SZL20-1.25/2.5-AII 20 1.25/2.5 20 194/226 725.2 82.3 2218/2246 40

Biomass boiler running advantages

1. Environmental protection and energy conservation.

2. Low fuel consumption and easy operation.

3. High burnning boiler furnace space, high thermal efficiency, Saving cost.

4. Convenient operation and economic.

5. Safety and reliabl, boiler life span can be reached to 25 years.

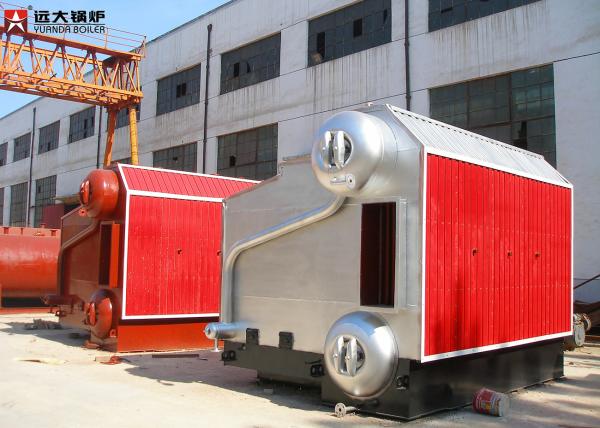

Our 20 ton biomass fired SZL (A type) boiler exported to Cambodia.

4 Ton Bagasse Fired Biomass Steam Boiler / 1.6Mpa Industrial Steam Boiler

4 Ton Bagasse Fired Biomass Steam Boiler / 1.6Mpa Industrial Steam Boiler
