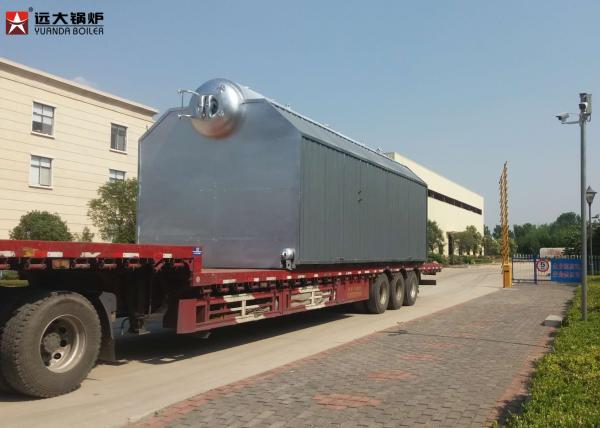

8T Biomass Wood Boiler High Efficiency Running , Wood Chips Fired Boiler
8T Biomass Wood Boiler High Efficiency Running , Wood Chips Fired Boiler
Specifications
Brand Name :
Yuanda
Model Number :
SZL
Certification :
ISO9001:2008
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Discussed.
Payment Terms :
D/A, D/P, T/T, L/C, Western Union
Supply Ability :
1000 sets per year
Delivery Time :
15-25 days after payment
Packaging Details :
Nude packaging for boiler main part and wood box packaging for boiler accessories.
Product name :
8T Biomass Steam Boiler High Efficiency Running Wood Chips Fired Boiler
Capacity :
8THP, 8 ton/h
Rated steam pressure :
1.25MPa,1.5MPa,2.0MPa
Weight :
2t-30t
Work efficiency :
86%
Boiler using life :
about 20 years
Steam temperature :
below 216°C
Material :
Carbon steel plate
Description

8T Biomass Wood Boiler High Efficiency Running , Wood Chips Fired Boiler

Boiler description

SZL series product has a double-drum offset hearth(D-type layout),great apply for biomass fuel,environmental protection and energy conservation,and is a key promoted product of national energy-saving projects.

1.More effective, High temperature cyclone separation combustion.
2.Enhanced corrosion resistance, more safe and reliable
3.Furnace wrapped by membrane
4.More kinds of fuel can be used, such as wood chips, bagasse, palm husk, rice husk, straw.
5.High temperature cyclone separation combustion, more cleaner and more effective.
6.More economical and flexible, it can full burn straw and also mix burning with coal

Boiler parameter

Model Capacity Pressure Feed water temp. Steam temp. Boiler efficiency Fuel consump. Delivery Mode
t/h Mpa ℃ ℃ % kg/h
SZH2-1.25/2.5-AII 2 1.25/2.5 20 194/226 81 225/228 Package Bolier
SZH4-1.25/2.5-AII 4 1.25/2.5 20 194/226 81 450/462
SZL2-1.25/2.5-AII 2 1.25/2.5 20 194/226 81.6 223/227
SZL4-1.25/2.5-AII 4 1.25/2.5 20 194/226 81.6 447/453
SZL6-1.25/2.5-AII 6 1.25/2.5 20 194/226 81.6 671/684
SZL8-1.25/2.5-AII 8 1.25/2.5 20 194/226 81.8 781/803
SZL10-1.25/2.5-AII 10 1.25/2.5 20 194/226 82 1113/1127 Assembled Boiler
SZL15-1.25/2.5-AII 15 1.25/2.5 20 194/226 82.3 1663/1686
SZL20-1.25/2.5-AII 20 1.25/2.5 20 194/226 82.3 2218/2246

Boiler running advantages

(1) High effiency(exceed 92%) and energy saving(save gas 3-5m3/h;save oil 3-5kg/h).
(2) Enough steam output and high quality steam.
(3) Safe and reliable.
(4) Long life span(More than 20 years ).
(5) Intelligent and fully automatic.
(6) Easy inspection and maintenance.

Boiler application

Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.
