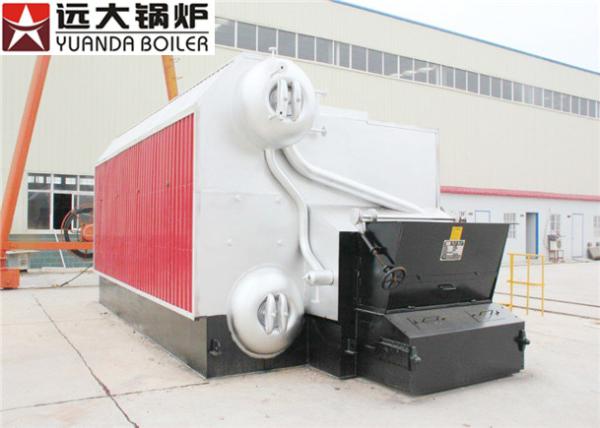

Wood Pellet Biomass Steam Boiler Water Tube Automatic Running Boiler

SZL Type Biomass fired boiler features

1. Advanced arch design:
The arch design adopts the latest scientific research patent for the inferior coal combustion to increase the coal adaptability.

2. Original membrane type water-cooled wall structure:
We adopts the membrane water wall structure and innovates some new design to increase the structure advantages of high heat transfer coefficient, good heat transfer effect, low heat loss, good air tightness and good performance of furnace wall.

3. Special GEF deslagging technology:
Boiler grate adopts the new small scale type fire grate with the exclusive insurance ring, which overcome the technical problem of grate falling off. This design reduce the air leakage of the fire grate, which ensure the stable and reliable grate operation and greatly improves the combustion efficiency.

4. Reasonable grate sealing structure:
The boiler with capacity less than 4t/h adopts the structure of side sealing and angle reinforcement plate, the boiler with the capacity more than 6t/h adopts contact type side seal ing and bottom sealing structure.

DZL Type Biomass fired boiler features

1. Wing flue
Function:cut down the smoke temperature inside the high temperature tube plate ,so as to slow down subcooled boiling
Purpose:reduce the thermal load at the bottom of boiler,prevent tube plate cracking ,prevent convex drum

2. Return water eject to the high temperature tube plate
F: Improve the flow rate of high temperature tube plate and prevent subcooled boiling
P:prevent the tube plate cracking

3. Ejector pipe
F:Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling
P:To prevent pipe explosion,Increase the reliability of water cycle

4. Smoke and dust separator chamber
F:Separate smoke and dust according to inertia
P:reduce the original effluent concentration of soot

5. Optimized design CAD
F:Choose the best furnace from dozens of options
P:improve economical efficiency

6. Convex tube plate
Function:improve tube plate flexibility,so as to reduce the heating stress of welded sew at the pipe end
Purpose:prevent tube plate cracking, cancel bracing,simplify the structure

7. Large size of simple circulation loop drop pipe and lower set box
F:Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling
P:To prevent pipe explosion,Increase the reliability of water cycle
