2 Ton - 30 Ton Biomass Fired Boiler , Commercial Biomass Boiler Pressure < 3.0MPa
2 Ton - 30 Ton Biomass Fired Boiler , Commercial Biomass Boiler Pressure < 3.0MPa
Specifications
Brand Name :
Yuanda
Model Number :
SZL(A)
Certification :
ISO9001,CE,ASME
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Price can be negotiated.
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per year
Delivery Time :
20 working days after payment
Packaging Details :
Wooden box for boiler accessories and professional transport cooperate.
Product name :
2Ton - 30 Ton Biomass Steam Boiler Bagasse Wood Pellet Fired High Efficiency
Boiler capacity :
large capacity 2ton - 30ton
Boiler model :
SZL two drums A layout boiler
Boiler pressure :
< 3.0MPa
Boiler efficiency :
>85%
Biomass fuel :
rice husk,coconut shell,bagasse,paddy,wood chips
Quality :
High strict quality control system
Company :
boiler factory since 1956
Description

2Ton - 30 Ton Biomass Steam Boiler Bagasse Wood Pellet Fired High Efficiency

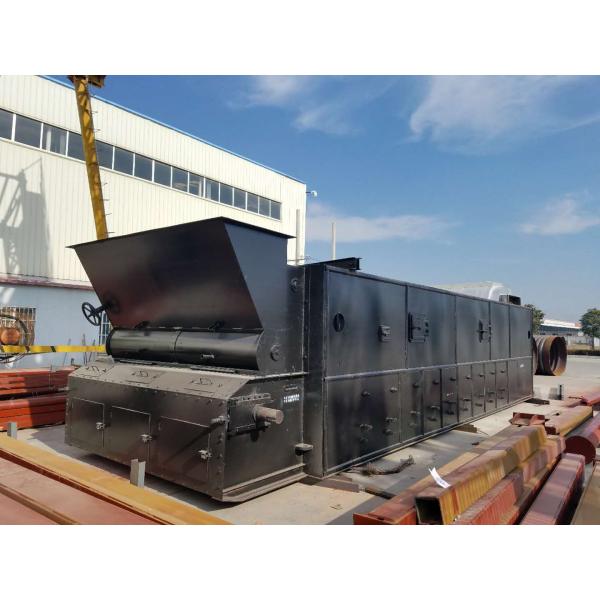

Introduction of SZL (A type) biomass steam boiler

SZL (A Type) low pressure horizontal double drums water tube automatic chain grate stoker industrial boilers are the structure of an upper drum and a lower drum longitudinally arranged along the boiler center, saving the floor area of the boiler room. It adopts a close isobaric wind chamber with better air distribution and smooth regulation;

For its higher hearth, SZL A boilers are more efficient for coal and biomass fuel, especially for pellets, wood, rice husk, sawdust, bagasse, straw, corncobs, etc, which are widely used for providing steam and energy for food industry, chemicals industry, pharmacy industry, rubber industry, plastics industry, textile industry, garment industry, paper-making plants, fruit processing plant, rice mill, wood plate mill, animal feed mill, timber plant, plywood plant, many other factories and industries.

Boiler technical parameter

Model Capacity Pressure Rated Feed water temp. Rated steam temp. Boiler heating area Boiler efficiency Fuel consump. Weight Delivery Mode
t/h Mpa ℃ ℃ ㎡ % kg/h Ton
SZH2-1.25/2.5-AII 2 1.25/2.5 20 194/226 69.5 81 225/228 17/18.5 Package Bolier
SZH4-1.25/2.5-AII 4 1.25/2.5 20 194/226 119.2 81 450/462 22/24.8
SZL2-1.25/2.5-AII 2 1.25/2.5 20 194/226 64.6 81.6 223/227 20/25
SZL4-1.25/2.5-AII 4 1.25/2.5 20 194/226 115.3 81.6 447/453 28/29
SZL6-1.25/2.5-AII 6 1.25/2.5 20 194/226 136.3 81.6 671/684 38/42
SZL8-1.25/2.5-AII 8 1.25/2.5 20 194/226 173 81.8 781/803 52
SZL10-1.25/2.5-AII 10 1.25/2.5 20 194/226 233 82 1113/1127 68 Assembled Boiler
SZL15-1.25/2.5-AII 15 1.25/2.5 20 194/226 307.3 82.3 1663/1686 30
SZL20-1.25/2.5-AII 20 1.25/2.5 20 194/226 725.2 82.3 2218/2246 40

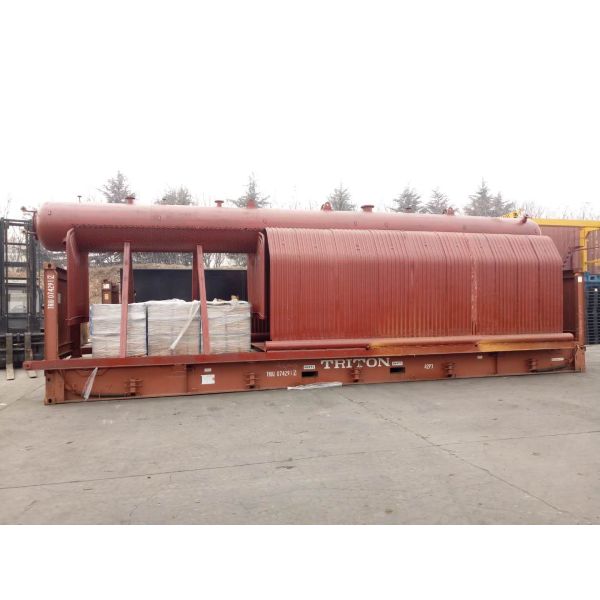

Transporation case

Our 20 ton biomass fired SZL (A type) boiler exported to Cambodia.
