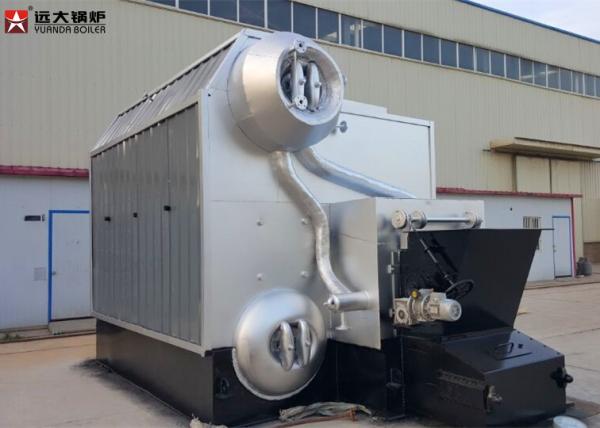

High Combustion Efficiency Biomass Steam Boiler for Wood Mill , Biomass Fired Boiler
High Combustion Efficiency Biomass Steam Boiler for Wood Mill , Biomass Fired Boiler
Specifications
Brand Name :
Yuanda
Model Number :
SZL biomass boiler
Certification :
ISO 9001
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Depend on boiler model
Payment Terms :
D/P, D/A, L/C, T/T, Western Union
Supply Ability :
150 sets monthly
Delivery Time :
about 20 working days after payment
Packaging Details :
Professional transport cooperate company.
Boiler type :
steam boilers & hot water boilers
Boiler color :
red, silver, grey, green, etc
Rated working pressure :
10bar, 13bar, 16bar, 25bar
Design fuel 1 :
biomass pellets, sawdust, wood pellets, wood wastes, wood residues
Design fuel 2 :
rice husk, bagasse, peanut shells, coconut shells, corncobs, etc
Boielr structure :
SZL water tube boilers biomass fuel rice husk wood chips for sale
Saturation steam temprature :
184°c, 194°c, 204°c, 226°c
Rated steam capacity for steam boilers :
2ton/hr, 4ton/hr, 6ton/hr, 8ton/hr, 10ton/hr, 15ton/hr
Description

High Combustion Efficiency Biomass Steam Boiler Using In Wood Mill

General introduction

SZL industrial low pressure horizontal double drums water tube automatic chain grate stoker boilers are with the structure of double drums, horizontal, water tube, automatic chain grate, water cooling arch, cyclone combustion chamber. The higher combustion space formed by two drums are good for the combustion of fuels, and the cyclone combustion chamber are good for fuel to burn out, increasing boiler efficiency greatly.

The characteristics and advanatges of SZL industrial low pressure horizontal double drums water tube automatic chain grate stoker boilers include,
1. Double drums
2. Water drum
3. Water cooling arch
4. Cyclone combustion chamer
5. Automatic moving chain grate stoker
6. SZL 'D type' water tube boilers biomass fuel rice husk wood chips fired for sale

Technical parameter sheet

ModelRated capacityRated pressureFeed water temp.Rated steam temp.Boiler efficiencyDimensionDelivery Mode
t/hMpa℃℃%mm
SZH2-1.25/2.5-AII21.25/2.520194/226814850×2690×3468Package Bolier
SZH4-1.25/2.5-AII41.25/2.520194/226815450×3040×3468
SZL2-1.25/2.5-AII21.25/2.520194/22681.65960×2960×3468
SZL4-1.25/2.5-AII41.25/2.520194/22681.66510×3130×3468
SZL6-1.25/2.5-AII61.25/2.520194/22681.67830×3346×3468
SZL8-1.25/2.5-AII81.25/2.520194/22681.88200×3346×3468
SZL10-1.25/2.5-AII101.25/2.520194/226828500×3346×3482Assembled Boiler
SZL15-1.25/2.5-AII151.25/2.520194/22682.39583×3400×3550
SZL20-1.25/2.5-AII201.25/2.520194/22682.311600×3460×3520


Boiler application industry

1. Agriculture
2. Animal food industry
3. Automotive industry
4. Bakeries
5. Ceramic industry
6. Cheese dairies
7. Chemical industry
8. Dairies
9. Distilleries
10. Dyeing factories
11. Electrical industry
12. Food packaging industry
13. Fruit processing
14. Glass fibre production
15. Greenhouses
16. Hospitals
17. Metal-working industry
18. Paper industry
19. Pharmaceutical industry
20. Plastics manufacturing
21. Primary industry
22. Print offices
23. Refineries

Boiler work advantages

1. Low fuel consumption cost
2. Good quality steam output
3. Long boiler using life, more than 25 years
4. Easy inspection and maintenance
5. Intelligent and fully automatic
